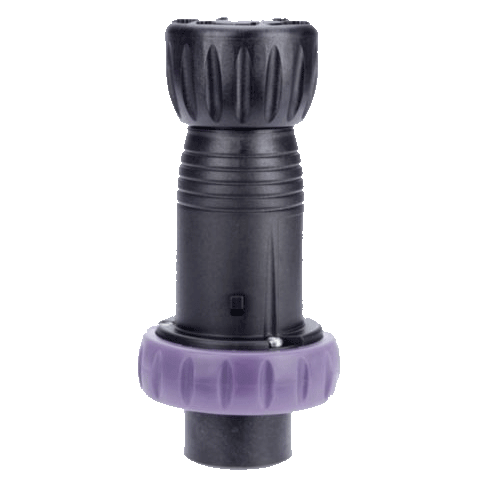

Plugs, Extra-low Voltage 16 A Series 8573/12

Plugs, Extra-Low Voltage 16 A Series 8573/12

Brand: R. STAHL AG
Add Product to My Catalog

The new R. STAHL Series 8573/12 plugs are designed for 2- or 3-pole applications up to 16 A.

The robust plastic plugs are resistant to corrosive chemicals and gases.

The floating pins allow them to be inserted and removed quickly and easily. The inner, pivoting strain relief makes it easier to install the cables quickly.

Corrosion-free contact pins made from high-quality materials ensure optimum electrical contact.

The new Series 8573/12 plug replaces the plug Series 8575, is 100% compatible with this Series and can be used with Series 8575 sockets.
Features
  • Zones 1, 2, 21, 22, degree of protection IP66, extreme temperature range of –50 … +60 °C
  • For low voltages up to 50 V
  • 16 A
  • Wear-free contacts for aggressive atmosphere

1 - 12 of 13 Part Numbers
243190
243190
R. STAHL Plug
Zones 1, 2, 21, 22, degree of protection IP66, extreme temperature range of –50 … +60 °C

For low voltages up to 50 V

16 A

Wear-free contacts for aggressive atmosphere

Ambient Conditions

  • Ambient temperature - -50 °C ... +40 °C (max. 16 A) -50 °C ... +55 °C (max. 12 A)
  • Ambient temperature max. - +40 °C
  • Ambient temperature max.2 - +55 °C
  • Ambient temperature min. - -50 °C
  • Ambient temperature min. 2 - -50 °C
  • Ambient temperature min. note - max. 16 A
  • Ambient temperature min. note 2 - max. 12 A

Components

  • Cable diameter - 8.00 - 15.00 mm
  • Cable diameter note - Ring 1 + 2 + 3 + 4: 8 ... 11 mm Ring 2 + 3 + 4: 11 ... 15 mm

Electrical Data

  • Auxiliary contacts available - No
  • Frequency range - 50 - 60 Hz
  • N-pole present - No
  • Optional auxiliary contacts - No
  • PE-pole present - No
  • Rated operational current - 10.000 - 16.000 A
  • Rated operational current - 16.000 A
  • Rated operational current 2 - 12.000 A
  • Rated operational current 2 - 10.000 - 12.000 A
  • Rated operational current 3 - 0.000 - 10.000 A
  • Rated operational current 3 - 10.000 A
  • Rated operational voltage AC - 20.00 - 25.00 V
  • Rated operational voltage AC - 25.00 V
  • Type of voltage - Extra-low voltage

Explosion Protection

  • Ambient temperature °C - -50 - 40 °C
  • Ambient temperature °C 2 - -50 - 55 °C
  • Application range (zones) - 1, 2, 21, 22
  • ATEX dust certificate - PTB 16 ATEX 1017
  • ATEX gas certificate - PTB 16 ATEX 1017
  • Certificate EAC - TS RU S-DE.AA87.B.00723
  • Certificates - ATEX (PTB), EAC (CCVE), IECEx (PTB)
  • Dust explosion protection ATEX - II 2 D Ex tb IIIC T70 °C Db
  • Dust explosion protection EAC - Ex tb IIIC T70 °C Db Ex tb IIIC T60 °C...T75°C Db
  • Dust explosion protection IECEx - Ex tb IIIC T70 °C Db
  • Gas explosion protection ATEX - II 2 G Ex eb IIC T6 Gb
  • Gas explosion protection EAC - 1 Ex db e IIC T6 Gb
  • Gas explosion protection IECEx - Ex eb IIC T6 Gb
  • IECEX dust certificate - IECEx PTB 16.0029
  • IECEX gas certificate - IECEx PTB 16.0029
  • Languages of the documentation - English, German

General

  • Description - 8573/12-300 3 pins, 20 ... 25 V, 50 / 60 Hz, 16 A
  • Functional Description - The new R. STAHL Series 8573/12 plugs are designed for 2- or 3-pole applications up to 16 A. The robust plastic plugs are resistant to corrosive chemicals and gases. The floating pins allow them to be inserted and removed quickly and easily. The inner, pivoting strain relief makes it easier to install the cables quickly. Corrosion-free contact pins made from high-quality materials ensure optimum electrical contact. The new Series 8573/12 plug replaces the plug Series 8575, is 100% compatible with this Series and can be used with Series 8575 sockets.
  • Highlights - Zones 1, 2, 21, 22, degree of protection IP66, extreme temperature range of –50 … +60 °C For low voltages up to 50 V 16 A Wear-free contacts for aggressive atmosphere
  • Product Description - Plug
  • Product Type - 8573/12-300
  • Product Variant - Plug
  • Title Product Variant Technical Data - 8573/12-300 PL 20-25V, 50/60Hz
  • WebCode - 8573D

Mechanical Data

  • Colour code - violet
  • Connection terminals finely-stranded max. - 1 x 4,00 mm2
  • Connection terminals min. - 0.75 mm²
  • Connection terminals solid max. - 999.99 mm²
  • Degree of protection (IP) - IP66
  • Degree of protection note - according to IEC/EN 60529
  • Detailed number of poles - 3 P
  • Enclosure material - Polyamide, Glass fibre reinforced
  • Height - 76.000 mm
  • Length - 166.100 mm
  • Series - SolConeX
  • Silicone-free - No
  • Type of connection cable - Finely stranded, solid
  • Weight - 0.300 kg
  • Width - 76.000 mm
243191
243191
R. STAHL Plug
Zones 1, 2, 21, 22, degree of protection IP66, extreme temperature range of –50 … +60 °C

For low voltages up to 50 V

16 A

Wear-free contacts for aggressive atmosphere

Ambient Conditions

  • Ambient temperature - -50 °C ... +55 °C (max. 12 A) -50 °C ... +60 °C (max. 10 A)
  • Ambient temperature max. - +55 °C
  • Ambient temperature max.2 - +60 °C
  • Ambient temperature min. - -50 °C
  • Ambient temperature min. 2 - -50 °C
  • Ambient temperature min. note - max. 12 A
  • Ambient temperature min. note 2 - max. 10 A

Components

  • Cable diameter - 8.00 - 15.00 mm
  • Cable diameter note - Ring 1 + 2 + 3 + 4: 8 ... 11 mm Ring 2 + 3 + 4: 11 ... 15 mm

Electrical Data

  • Auxiliary contacts available - No
  • Frequency range - 300 - 300 Hz
  • N-pole present - No
  • Optional auxiliary contacts - No
  • PE-pole present - No
  • Rated operational current - 10.000 - 12.000 A
  • Rated operational current - 12.000 A
  • Rated operational current 2 - 0.000 - 10.000 A
  • Rated operational current 2 - 10.000 A
  • Rated operational voltage AC - 20.00 - 25.00 V / 40.00 - 50.00 V
  • Rated operational voltage AC - 20.00 - 25.00 V
  • Rated operational voltage AC - 25.00 V
  • Rated operational voltage AC 2 - 40.00 - 50.00 V
  • Type of voltage - Extra-low voltage

Explosion Protection

  • Ambient temperature °C - -50 - 55 °C
  • Ambient temperature °C 2 - -50 - 60 °C
  • Application range (zones) - 1, 2, 21, 22
  • ATEX dust certificate - PTB 16 ATEX 1017
  • ATEX gas certificate - PTB 16 ATEX 1017
  • Certificate EAC - TS RU S-DE.AA87.B.00723
  • Certificates - ATEX (PTB), EAC (CCVE), IECEx (PTB)
  • Dust explosion protection ATEX - II 2 D Ex tb IIIC T70 °C Db
  • Dust explosion protection EAC - Ex tb IIIC T70 °C Db Ex tb IIIC T60 °C...T75°C Db
  • Dust explosion protection IECEx - Ex tb IIIC T70 °C Db
  • Gas explosion protection ATEX - II 2 G Ex eb IIC T6 Gb
  • Gas explosion protection EAC - 1 Ex db e IIC T6 Gb
  • Gas explosion protection IECEx - Ex eb IIC T6 Gb
  • IECEX dust certificate - IECEx PTB 16.0029
  • IECEX gas certificate - IECEx PTB 16.0029
  • Languages of the documentation - English, German

General

  • Functional Description - The new R. STAHL Series 8573/12 plugs are designed for 2- or 3-pole applications up to 16 A. The robust plastic plugs are resistant to corrosive chemicals and gases. The floating pins allow them to be inserted and removed quickly and easily. The inner, pivoting strain relief makes it easier to install the cables quickly. Corrosion-free contact pins made from high-quality materials ensure optimum electrical contact. The new Series 8573/12 plug replaces the plug Series 8575, is 100% compatible with this Series and can be used with Series 8575 sockets.
  • Highlights - Zones 1, 2, 21, 22, degree of protection IP66, extreme temperature range of –50 … +60 °C For low voltages up to 50 V 16 A Wear-free contacts for aggressive atmosphere
  • Product Description - Plug
  • Product Type - 8573/12-302
  • Title Product Variant Technical Data - 8573/12-302 PL 20-25V u. 40-50V, 300Hz
  • WebCode - 8573D

Mechanical Data

  • Coding (clock hour position) - 2
  • Colour code - green
  • Connection terminals finely-stranded max. - 1 x 4,00 mm2
  • Connection terminals min. - 0.75 mm²
  • Connection terminals solid max. - 999.99 mm²
  • Degree of protection (IP) - IP66
  • Degree of protection note - according to IEC/EN 60529
  • Detailed number of poles - 3 P
  • Enclosure material - Polyamide, Glass fibre reinforced
  • Height - 76.000 mm
  • Length - 166.100 mm
  • Series - SolConeX
  • Silicone-free - No
  • Type of connection cable - Finely stranded, solid
  • Weight - 0.300 kg
  • Width - 76.000 mm
243192
243192
R. STAHL Plug
Zones 1, 2, 21, 22, degree of protection IP66, extreme temperature range of –50 … +60 °C

For low voltages up to 50 V

16 A

Wear-free contacts for aggressive atmosphere

Ambient Conditions

  • Ambient temperature - -50 °C ... +55 °C (max. 12 A) -50 °C ... +60 °C (max. 10 A)
  • Ambient temperature max. - +55 °C
  • Ambient temperature max.2 - +60 °C
  • Ambient temperature min. - -50 °C
  • Ambient temperature min. 2 - -50 °C
  • Ambient temperature min. note - max. 12 A
  • Ambient temperature min. note 2 - max. 10 A

Components

  • Cable diameter - 8.00 - 15.00 mm
  • Cable diameter note - Ring 1 + 2 + 3 + 4: 8 ... 11 mm Ring 2 + 3 + 4: 11 ... 15 mm

Electrical Data

  • Auxiliary contacts available - No
  • Frequency range - 400 - 400 Hz
  • N-pole present - No
  • Optional auxiliary contacts - No
  • PE-pole present - No
  • Rated operational current - 12.000 A
  • Rated operational current - 10.000 - 12.000 A
  • Rated operational current 2 - 10.000 A
  • Rated operational current 2 - 0.000 - 10.000 A
  • Rated operational voltage AC - 20.00 - 25.00 V / 40.00 - 50.00 V
  • Rated operational voltage AC - 20.00 - 25.00 V
  • Rated operational voltage AC - 25.00 V
  • Rated operational voltage AC 2 - 40.00 - 50.00 V
  • Type of voltage - Extra-low voltage

Explosion Protection

  • Ambient temperature °C - -50 - 55 °C
  • Ambient temperature °C 2 - -50 - 60 °C
  • Application range (zones) - 1, 2, 21, 22
  • ATEX dust certificate - PTB 16 ATEX 1017
  • ATEX gas certificate - PTB 16 ATEX 1017
  • Certificate EAC - TS RU S-DE.AA87.B.00723
  • Certificates - ATEX (PTB), EAC (CCVE), IECEx (PTB)
  • Dust explosion protection ATEX - II 2 D Ex tb IIIC T70 °C Db
  • Dust explosion protection EAC - Ex tb IIIC T70 °C Db Ex tb IIIC T60 °C...T75°C Db
  • Dust explosion protection IECEx - Ex tb IIIC T70 °C Db
  • Gas explosion protection ATEX - II 2 G Ex eb IIC T6 Gb
  • Gas explosion protection EAC - 1 Ex db e IIC T6 Gb
  • Gas explosion protection IECEx - Ex eb IIC T6 Gb
  • IECEX dust certificate - IECEx PTB 16.0029
  • IECEX gas certificate - IECEx PTB 16.0029
  • Languages of the documentation - English, German

General

  • Functional Description - The new R. STAHL Series 8573/12 plugs are designed for 2- or 3-pole applications up to 16 A. The robust plastic plugs are resistant to corrosive chemicals and gases. The floating pins allow them to be inserted and removed quickly and easily. The inner, pivoting strain relief makes it easier to install the cables quickly. Corrosion-free contact pins made from high-quality materials ensure optimum electrical contact. The new Series 8573/12 plug replaces the plug Series 8575, is 100% compatible with this Series and can be used with Series 8575 sockets.
  • Highlights - Zones 1, 2, 21, 22, degree of protection IP66, extreme temperature range of –50 … +60 °C For low voltages up to 50 V 16 A Wear-free contacts for aggressive atmosphere
  • Product Description - Plug
  • Product Type - 8573/12-303
  • Title Product Variant Technical Data - 8573/12-303 PL 20-25V u. 40-50V, 400Hz
  • WebCode - 8573D

Mechanical Data

  • Coding (clock hour position) - 3
  • Colour code - green
  • Connection terminals finely-stranded max. - 1 x 4,00 mm2
  • Connection terminals min. - 0.75 mm²
  • Connection terminals solid max. - 999.99 mm²
  • Degree of protection (IP) - IP66
  • Degree of protection note - according to IEC/EN 60529
  • Detailed number of poles - 3 P
  • Enclosure material - Polyamide, Glass fibre reinforced
  • Height - 76.000 mm
  • Length - 166.100 mm
  • Series - SolConeX
  • Silicone-free - No
  • Type of connection cable - Finely stranded, solid
  • Weight - 0.300 kg
  • Width - 76.000 mm
243193
243193
R. STAHL Plug
Zones 1, 2, 21, 22, degree of protection IP66, extreme temperature range of –50 … +60 °C

For low voltages up to 50 V

16 A

Wear-free contacts for aggressive atmosphere

Ambient Conditions

  • Ambient temperature - -50 °C ... +55 °C (max. 12 A) -50 °C ... +60 °C (max. 10 A)
  • Ambient temperature max. - +55 °C
  • Ambient temperature max.2 - +60 °C
  • Ambient temperature min. - -50 °C
  • Ambient temperature min. 2 - -50 °C
  • Ambient temperature min. note - max. 12 A
  • Ambient temperature min. note 2 - max. 10 A

Components

  • Cable diameter - 8.00 - 15.00 mm
  • Cable diameter note - Ring 1 + 2 + 3 + 4: 8 ... 11 mm Ring 2 + 3 + 4: 11 ... 15 mm

Electrical Data

  • Auxiliary contacts available - No
  • Frequency range - 100 - 200 Hz
  • N-pole present - No
  • Optional auxiliary contacts - No
  • PE-pole present - No
  • Rated operational current - 10.000 - 12.000 A
  • Rated operational current - 12.000 A
  • Rated operational current 2 - 0.000 - 10.000 A
  • Rated operational current 2 - 10.000 A
  • Rated operational voltage AC - 20.00 - 25.00 V / 40.00 - 50.00 V
  • Rated operational voltage AC - 20.00 - 25.00 V
  • Rated operational voltage AC - 25.00 V
  • Rated operational voltage AC 2 - 40.00 - 50.00 V
  • Type of voltage - Extra-low voltage

Explosion Protection

  • Ambient temperature °C - -50 - 55 °C
  • Ambient temperature °C 2 - -50 - 60 °C
  • Application range (zones) - 1, 2, 21, 22
  • ATEX dust certificate - PTB 16 ATEX 1017
  • ATEX gas certificate - PTB 16 ATEX 1017
  • Certificate EAC - TS RU S-DE.AA87.B.00723
  • Certificates - ATEX (PTB), EAC (CCVE), IECEx (PTB)
  • Dust explosion protection ATEX - II 2 D Ex tb IIIC T70 °C Db
  • Dust explosion protection EAC - Ex tb IIIC T70 °C Db Ex tb IIIC T60 °C...T75°C Db
  • Dust explosion protection IECEx - Ex tb IIIC T70 °C Db
  • Gas explosion protection ATEX - II 2 G Ex eb IIC T6 Gb
  • Gas explosion protection EAC - 1 Ex db e IIC T6 Gb
  • Gas explosion protection IECEx - Ex eb IIC T6 Gb
  • IECEX dust certificate - IECEx PTB 16.0029
  • IECEX gas certificate - IECEx PTB 16.0029
  • Languages of the documentation - English, German

General

  • Functional Description - The new R. STAHL Series 8573/12 plugs are designed for 2- or 3-pole applications up to 16 A. The robust plastic plugs are resistant to corrosive chemicals and gases. The floating pins allow them to be inserted and removed quickly and easily. The inner, pivoting strain relief makes it easier to install the cables quickly. Corrosion-free contact pins made from high-quality materials ensure optimum electrical contact. The new Series 8573/12 plug replaces the plug Series 8575, is 100% compatible with this Series and can be used with Series 8575 sockets.
  • Highlights - Zones 1, 2, 21, 22, degree of protection IP66, extreme temperature range of –50 … +60 °C For low voltages up to 50 V 16 A Wear-free contacts for aggressive atmosphere
  • Product Description - Plug
  • Product Type - 8573/12-304
  • Title Product Variant Technical Data - 8573/12-304 PL 20-25Vu.40-50V,>100-200Hz
  • WebCode - 8573D

Mechanical Data

  • Coding (clock hour position) - 4
  • Colour code - green
  • Connection terminals finely-stranded max. - 1 x 4,00 mm2
  • Connection terminals min. - 0.75 mm²
  • Connection terminals solid max. - 999.99 mm²
  • Degree of protection (IP) - IP66
  • Degree of protection note - according to IEC/EN 60529
  • Detailed number of poles - 3 P
  • Enclosure material - Polyamide, Glass fibre reinforced
  • Height - 76.000 mm
  • Length - 166.100 mm
  • Series - SolConeX
  • Silicone-free - No
  • Type of connection cable - Finely stranded, solid
  • Weight - 0.300 kg
  • Width - 76.000 mm
243194
243194
R. STAHL Plug
Zones 1, 2, 21, 22, degree of protection IP66, extreme temperature range of –50 … +60 °C

For low voltages up to 50 V

16 A

Wear-free contacts for aggressive atmosphere

Ambient Conditions

  • Ambient temperature - -50 °C ... +55 °C (max. 12 A) -50 °C ... +60 °C (max. 10 A)
  • Ambient temperature max. - +55 °C
  • Ambient temperature max.2 - +60 °C
  • Ambient temperature min. - -50 °C
  • Ambient temperature min. 2 - -50 °C
  • Ambient temperature min. note - max. 12 A
  • Ambient temperature min. note 2 - max. 10 A

Components

  • Cable diameter - 8.00 - 15.00 mm
  • Cable diameter note - Ring 1 + 2 + 3 + 4: 8 ... 11 mm Ring 2 + 3 + 4: 11 ... 15 mm

Electrical Data

  • Auxiliary contacts available - No
  • Frequency range - 401 - 500 Hz
  • N-pole present - No
  • Optional auxiliary contacts - No
  • PE-pole present - No
  • Rated operational current - 12.000 A
  • Rated operational current 2 - 0.000 - 10.000 A
  • Rated operational voltage AC - 20.00 - 25.00 V / 40.00 - 50.00 V
  • Rated operational voltage AC 2 - 40.00 - 50.00 V
  • Type of voltage - Extra-low voltage

Explosion Protection

  • Ambient temperature °C - -50 - 55 °C
  • Ambient temperature °C 2 - -50 - 60 °C
  • Application range (zones) - 1, 2, 21, 22
  • ATEX dust certificate - PTB 16 ATEX 1017
  • ATEX gas certificate - PTB 16 ATEX 1017
  • Certificate EAC - TS RU S-DE.AA87.B.00723
  • Certificates - ATEX (PTB), EAC (CCVE), IECEx (PTB)
  • Dust explosion protection ATEX - II 2 D Ex tb IIIC T70 °C Db
  • Dust explosion protection EAC - Ex tb IIIC T70 °C Db Ex tb IIIC T60 °C...T75°C Db
  • Dust explosion protection IECEx - Ex tb IIIC T70 °C Db
  • Gas explosion protection ATEX - II 2 G Ex eb IIC T6 Gb
  • Gas explosion protection EAC - 1 Ex db e IIC T6 Gb
  • Gas explosion protection IECEx - Ex eb IIC T6 Gb
  • IECEX dust certificate - IECEx PTB 16.0029
  • IECEX gas certificate - IECEx PTB 16.0029
  • Languages of the documentation - English, German

General

  • Functional Description - The new R. STAHL Series 8573/12 plugs are designed for 2- or 3-pole applications up to 16 A. The robust plastic plugs are resistant to corrosive chemicals and gases. The floating pins allow them to be inserted and removed quickly and easily. The inner, pivoting strain relief makes it easier to install the cables quickly. Corrosion-free contact pins made from high-quality materials ensure optimum electrical contact. The new Series 8573/12 plug replaces the plug Series 8575, is 100% compatible with this Series and can be used with Series 8575 sockets.
  • Highlights - Zones 1, 2, 21, 22, degree of protection IP66, extreme temperature range of –50 … +60 °C For low voltages up to 50 V 16 A Wear-free contacts for aggressive atmosphere
  • Product Description - Plug
  • Product Type - 8573/12-311
  • Title Product Variant Technical Data - 8573/12-311 PL 20-25Vu.40-50V,>400-500Hz
  • WebCode - 8573D

Mechanical Data

  • Coding (clock hour position) - 11
  • Colour code - green
  • Connection terminals finely-stranded max. - 1 x 4,00 mm2
  • Connection terminals min. - 0.75 mm²
  • Connection terminals solid max. - 999.99 mm²
  • Degree of protection (IP) - IP66
  • Degree of protection note - according to IEC/EN 60529
  • Detailed number of poles - 3 P
  • Enclosure material - Polyamide, Glass fibre reinforced
  • Height - 76.000 mm
  • Length - 166.100 mm
  • Series - SolConeX
  • Silicone-free - No
  • Type of connection cable - Finely stranded, solid
  • Weight - 0.300 kg
  • Width - 76.000 mm
243195
243195
R. STAHL Plug
Zones 1, 2, 21, 22, degree of protection IP66, extreme temperature range of –50 … +60 °C

For low voltages up to 50 V

16 A

Wear-free contacts for aggressive atmosphere

Ambient Conditions

  • Ambient temperature - -50 °C ... +40 °C (max. 16 A) -50 °C ... +55 °C (max. 12 A)
  • Ambient temperature max. - +40 °C
  • Ambient temperature max.2 - +55 °C
  • Ambient temperature min. - -50 °C
  • Ambient temperature min. 2 - -50 °C
  • Ambient temperature min. note - max. 16 A
  • Ambient temperature min. note 2 - max. 12 A

Components

  • Cable diameter - 8.00 - 15.00 mm
  • Cable diameter note - Ring 1 + 2 + 3 + 4: 8 ... 11 mm Ring 2 + 3 + 4: 11 ... 15 mm

Electrical Data

  • Auxiliary contacts available - No
  • Frequency range - 50 - 60 Hz
  • N-pole present - No
  • Optional auxiliary contacts - No
  • PE-pole present - No
  • Rated operational current - 10.000 - 16.000 A
  • Rated operational current - 16.000 A
  • Rated operational current 2 - 10.000 - 12.000 A
  • Rated operational current 2 - 12.000 A
  • Rated operational current 3 - 0.000 - 10.000 A
  • Rated operational current 3 - 10.000 A
  • Rated operational voltage AC - 40.00 - 50.00 V
  • Rated operational voltage AC - 50.00 V
  • Type of voltage - Extra-low voltage

Explosion Protection

  • Ambient temperature °C - -50 - 40 °C
  • Ambient temperature °C 2 - -50 - 55 °C
  • Application range (zones) - 1, 2, 21, 22
  • ATEX dust certificate - PTB 16 ATEX 1017
  • ATEX gas certificate - PTB 16 ATEX 1017
  • Certificate EAC - TS RU S-DE.AA87.B.00723
  • Certificates - ATEX (PTB), EAC (CCVE), IECEx (PTB)
  • Dust explosion protection ATEX - II 2 D Ex tb IIIC T70 °C Db
  • Dust explosion protection EAC - Ex tb IIIC T70 °C Db Ex tb IIIC T60 °C...T75°C Db
  • Dust explosion protection IECEx - Ex tb IIIC T70 °C Db
  • Gas explosion protection ATEX - II 2 G Ex eb IIC T6 Gb
  • Gas explosion protection EAC - 1 Ex db e IIC T6 Gb
  • Gas explosion protection IECEx - Ex eb IIC T6 Gb
  • IECEX dust certificate - IECEx PTB 16.0029
  • IECEX gas certificate - IECEx PTB 16.0029
  • Languages of the documentation - English, German

General

  • Description - 8573/12-312 3 pins, 40 ... 50 V, 50 / 60 Hz, 16 A
  • Functional Description - The new R. STAHL Series 8573/12 plugs are designed for 2- or 3-pole applications up to 16 A. The robust plastic plugs are resistant to corrosive chemicals and gases. The floating pins allow them to be inserted and removed quickly and easily. The inner, pivoting strain relief makes it easier to install the cables quickly. Corrosion-free contact pins made from high-quality materials ensure optimum electrical contact. The new Series 8573/12 plug replaces the plug Series 8575, is 100% compatible with this Series and can be used with Series 8575 sockets.
  • Highlights - Zones 1, 2, 21, 22, degree of protection IP66, extreme temperature range of –50 … +60 °C For low voltages up to 50 V 16 A Wear-free contacts for aggressive atmosphere
  • Product Description - Plug
  • Product Type - 8573/12-312
  • Product Variant - Plug
  • Title Product Variant Technical Data - 8573/12-312 PL 40-50V, 50/60Hz
  • WebCode - 8573D

Mechanical Data

  • Coding (clock hour position) - 12
  • Colour code - light grey
  • Connection terminals finely-stranded max. - 1 x 4,00 mm2
  • Connection terminals min. - 0.75 mm²
  • Connection terminals solid max. - 999.99 mm²
  • Degree of protection (IP) - IP66
  • Degree of protection note - according to IEC/EN 60529
  • Detailed number of poles - 3 P
  • Enclosure material - Polyamide, Glass fibre reinforced
  • Height - 76.000 mm
  • Length - 166.100 mm
  • Series - SolConeX
  • Silicone-free - No
  • Type of connection cable - Finely stranded, solid
  • Weight - 0.300 kg
  • Width - 76.000 mm
243197
243197
R. STAHL Plug
Zones 1, 2, 21, 22, degree of protection IP66, extreme temperature range of –50 … +60 °C

For low voltages up to 50 V

16 A

Wear-free contacts for aggressive atmosphere

Ambient Conditions

  • Ambient temperature - -50 °C ... +40 °C (max. 16 A) -50 °C ... +55 °C (max. 12 A)
  • Ambient temperature max. - +40 °C
  • Ambient temperature max.2 - +55 °C
  • Ambient temperature min. - -50 °C
  • Ambient temperature min. 2 - -50 °C
  • Ambient temperature min. note - max. 16 A
  • Ambient temperature min. note 2 - max. 12 A

Components

  • Cable diameter - 8.00 - 15.00 mm
  • Cable diameter note - Ring 1 + 2 + 3 + 4: 8 ... 11 mm Ring 2 + 3 + 4: 11 ... 15 mm

Electrical Data

  • Auxiliary contacts available - No
  • Frequency range - 50 - 60 Hz
  • N-pole present - No
  • Optional auxiliary contacts - No
  • PE-pole present - No
  • Rated operational current - 10.000 - 16.000 A
  • Rated operational current - 16.000 A
  • Rated operational current 2 - 12.000 A
  • Rated operational current 2 - 10.000 - 12.000 A
  • Rated operational current 3 - 0.000 - 10.000 A
  • Rated operational current 3 - 10.000 A
  • Rated operational voltage AC - 20.00 - 25.00 V
  • Rated operational voltage AC - 25.00 V
  • Type of voltage - Extra-low voltage

Explosion Protection

  • Ambient temperature °C - -50 - 40 °C
  • Ambient temperature °C 2 - -50 - 55 °C
  • Application range (zones) - 1, 2, 21, 22
  • ATEX dust certificate - PTB 16 ATEX 1017
  • ATEX gas certificate - PTB 16 ATEX 1017
  • Certificate EAC - TS RU S-DE.AA87.B.00723
  • Certificates - ATEX (PTB), EAC (CCVE), IECEx (PTB)
  • Dust explosion protection ATEX - II 2 D Ex tb IIIC T70 °C Db
  • Dust explosion protection EAC - Ex tb IIIC T70 °C Db Ex tb IIIC T60 °C...T75°C Db
  • Dust explosion protection IECEx - Ex tb IIIC T70 °C Db
  • Gas explosion protection ATEX - II 2 G Ex eb IIC T6 Gb
  • Gas explosion protection EAC - 1 Ex db e IIC T6 Gb
  • Gas explosion protection IECEx - Ex eb IIC T6 Gb
  • IECEX dust certificate - IECEx PTB 16.0029
  • IECEX gas certificate - IECEx PTB 16.0029
  • Languages of the documentation - English, German

General

  • Description - 8573/12-200 2 pins, 20 ... 25 V, 50 / 60 Hz, 16 A
  • Functional Description - The new R. STAHL Series 8573/12 plugs are designed for 2- or 3-pole applications up to 16 A. The robust plastic plugs are resistant to corrosive chemicals and gases. The floating pins allow them to be inserted and removed quickly and easily. The inner, pivoting strain relief makes it easier to install the cables quickly. Corrosion-free contact pins made from high-quality materials ensure optimum electrical contact. The new Series 8573/12 plug replaces the plug Series 8575, is 100% compatible with this Series and can be used with Series 8575 sockets.
  • Highlights - Zones 1, 2, 21, 22, degree of protection IP66, extreme temperature range of –50 … +60 °C For low voltages up to 50 V 16 A Wear-free contacts for aggressive atmosphere
  • Product Description - Plug
  • Product Type - 8573/12-200
  • Product Variant - Plug
  • Title Product Variant Technical Data - 8573/12-200 PL 20-25V, 50/60Hz
  • WebCode - 8573D

Mechanical Data

  • Colour code - violet
  • Connection terminals finely-stranded max. - 1 x 4,00 mm2
  • Connection terminals min. - 0.75 mm²
  • Connection terminals solid max. - 999.99 mm²
  • Degree of protection (IP) - IP66
  • Degree of protection note - according to IEC/EN 60529
  • Detailed number of poles - 2 P
  • Enclosure material - Polyamide, Glass fibre reinforced
  • Height - 76.000 mm
  • Length - 166.100 mm
  • Series - SolConeX
  • Silicone-free - No
  • Type of connection cable - Finely stranded, solid
  • Weight - 0.300 kg
  • Width - 76.000 mm
243198
243198
R. STAHL Plug
Zones 1, 2, 21, 22, degree of protection IP66, extreme temperature range of –50 … +60 °C

For low voltages up to 50 V

16 A

Wear-free contacts for aggressive atmosphere

Ambient Conditions

  • Ambient temperature - -50 °C ... +55 °C (max. 12 A) -50 °C ... +60 °C (max. 10 A)
  • Ambient temperature max. - +55 °C
  • Ambient temperature max.2 - +60 °C
  • Ambient temperature min. - -50 °C
  • Ambient temperature min. 2 - -50 °C
  • Ambient temperature min. note - max. 12 A
  • Ambient temperature min. note 2 - max. 10 A

Components

  • Cable diameter - 8.00 - 15.00 mm
  • Cable diameter note - Ring 1 + 2 + 3 + 4: 8 ... 11 mm Ring 2 + 3 + 4: 11 ... 15 mm

Electrical Data

  • Auxiliary contacts available - No
  • Frequency range - 300 - 300 Hz
  • N-pole present - No
  • Optional auxiliary contacts - No
  • PE-pole present - No
  • Rated operational current - 10.000 - 12.000 A
  • Rated operational current 2 - 0.000 - 10.000 A
  • Rated operational voltage AC - 25.00 V
  • Rated operational voltage AC 2 - 40.00 - 50.00 V
  • Type of voltage - Extra-low voltage

Explosion Protection

  • Ambient temperature °C - -50 - 55 °C
  • Ambient temperature °C 2 - -50 - 60 °C
  • Application range (zones) - 1, 2, 21, 22
  • ATEX dust certificate - PTB 16 ATEX 1017
  • ATEX gas certificate - PTB 16 ATEX 1017
  • Certificate EAC - TS RU S-DE.AA87.B.00723
  • Certificates - ATEX (PTB), EAC (CCVE), IECEx (PTB)
  • Dust explosion protection ATEX - II 2 D Ex tb IIIC T70 °C Db
  • Dust explosion protection EAC - Ex tb IIIC T70 °C Db Ex tb IIIC T60 °C...T75°C Db
  • Dust explosion protection IECEx - Ex tb IIIC T70 °C Db
  • Gas explosion protection ATEX - II 2 G Ex eb IIC T6 Gb
  • Gas explosion protection EAC - 1 Ex db e IIC T6 Gb
  • Gas explosion protection IECEx - Ex eb IIC T6 Gb
  • IECEX dust certificate - IECEx PTB 16.0029
  • IECEX gas certificate - IECEx PTB 16.0029
  • Languages of the documentation - English, German

General

  • Functional Description - The new R. STAHL Series 8573/12 plugs are designed for 2- or 3-pole applications up to 16 A. The robust plastic plugs are resistant to corrosive chemicals and gases. The floating pins allow them to be inserted and removed quickly and easily. The inner, pivoting strain relief makes it easier to install the cables quickly. Corrosion-free contact pins made from high-quality materials ensure optimum electrical contact. The new Series 8573/12 plug replaces the plug Series 8575, is 100% compatible with this Series and can be used with Series 8575 sockets.
  • Highlights - Zones 1, 2, 21, 22, degree of protection IP66, extreme temperature range of –50 … +60 °C For low voltages up to 50 V 16 A Wear-free contacts for aggressive atmosphere
  • Product Description - Plug
  • Product Type - 8573/12-202
  • Title Product Variant Technical Data - 8573/12-202 PL 20-25V u. 40-50V, 300Hz
  • WebCode - 8573D

Mechanical Data

  • Coding (clock hour position) - 2
  • Colour code - green
  • Connection terminals finely-stranded max. - 1 x 4,00 mm2
  • Connection terminals min. - 0.75 mm²
  • Connection terminals solid max. - 999.99 mm²
  • Degree of protection (IP) - IP66
  • Degree of protection note - according to IEC/EN 60529
  • Detailed number of poles - 2 P
  • Enclosure material - Polyamide, Glass fibre reinforced
  • Height - 76.000 mm
  • Length - 166.100 mm
  • Series - SolConeX
  • Silicone-free - No
  • Type of connection cable - Finely stranded, solid
  • Weight - 0.300 kg
  • Width - 76.000 mm
243199
243199
R. STAHL Plug
Zones 1, 2, 21, 22, degree of protection IP66, extreme temperature range of –50 … +60 °C

For low voltages up to 50 V

16 A

Wear-free contacts for aggressive atmosphere

Ambient Conditions

  • Ambient temperature - -50 °C ... +55 °C (max. 12 A) -50 °C ... +60 °C (max. 10 A)
  • Ambient temperature max. - +55 °C
  • Ambient temperature max.2 - +60 °C
  • Ambient temperature min. - -50 °C
  • Ambient temperature min. 2 - -50 °C
  • Ambient temperature min. note - max. 12 A
  • Ambient temperature min. note 2 - max. 10 A

Components

  • Cable diameter - 8.00 - 15.00 mm
  • Cable diameter note - Ring 1 + 2 + 3 + 4: 8 ... 11 mm Ring 2 + 3 + 4: 11 ... 15 mm

Electrical Data

  • Auxiliary contacts available - No
  • Frequency range - 400 - 400 Hz
  • N-pole present - No
  • Optional auxiliary contacts - No
  • PE-pole present - No
  • Rated operational current - 12.000 A
  • Rated operational current 2 - 0.000 - 10.000 A
  • Rated operational voltage AC - 20.00 - 25.00 V
  • Rated operational voltage AC 2 - 40.00 - 50.00 V
  • Type of voltage - Extra-low voltage

Explosion Protection

  • Ambient temperature °C - -50 - 55 °C
  • Ambient temperature °C 2 - -50 - 60 °C
  • Application range (zones) - 1, 2, 21, 22
  • ATEX dust certificate - PTB 16 ATEX 1017
  • ATEX gas certificate - PTB 16 ATEX 1017
  • Certificate EAC - TS RU S-DE.AA87.B.00723
  • Certificates - ATEX (PTB), EAC (CCVE), IECEx (PTB)
  • Dust explosion protection ATEX - II 2 D Ex tb IIIC T70 °C Db
  • Dust explosion protection EAC - Ex tb IIIC T70 °C Db Ex tb IIIC T60 °C...T75°C Db
  • Dust explosion protection IECEx - Ex tb IIIC T70 °C Db
  • Gas explosion protection ATEX - II 2 G Ex eb IIC T6 Gb
  • Gas explosion protection EAC - 1 Ex db e IIC T6 Gb
  • Gas explosion protection IECEx - Ex eb IIC T6 Gb
  • IECEX dust certificate - IECEx PTB 16.0029
  • IECEX gas certificate - IECEx PTB 16.0029
  • Languages of the documentation - English, German

General

  • Functional Description - The new R. STAHL Series 8573/12 plugs are designed for 2- or 3-pole applications up to 16 A. The robust plastic plugs are resistant to corrosive chemicals and gases. The floating pins allow them to be inserted and removed quickly and easily. The inner, pivoting strain relief makes it easier to install the cables quickly. Corrosion-free contact pins made from high-quality materials ensure optimum electrical contact. The new Series 8573/12 plug replaces the plug Series 8575, is 100% compatible with this Series and can be used with Series 8575 sockets.
  • Highlights - Zones 1, 2, 21, 22, degree of protection IP66, extreme temperature range of –50 … +60 °C For low voltages up to 50 V 16 A Wear-free contacts for aggressive atmosphere
  • Product Description - Plug
  • Product Type - 8573/12-203
  • Title Product Variant Technical Data - 8573/12-203 PL 20-25V u. 40-50V, 400Hz
  • WebCode - 8573D

Mechanical Data

  • Coding (clock hour position) - 3
  • Colour code - green
  • Connection terminals finely-stranded max. - 1 x 4,00 mm2
  • Connection terminals min. - 0.75 mm²
  • Connection terminals solid max. - 999.99 mm²
  • Degree of protection (IP) - IP66
  • Degree of protection note - according to IEC/EN 60529
  • Detailed number of poles - 2 P
  • Enclosure material - Polyamide, Glass fibre reinforced
  • Height - 76.000 mm
  • Length - 166.100 mm
  • Series - SolConeX
  • Silicone-free - No
  • Type of connection cable - Finely stranded, solid
  • Weight - 0.300 kg
  • Width - 76.000 mm
243200
243200
R. STAHL Plug
Zones 1, 2, 21, 22, degree of protection IP66, extreme temperature range of –50 … +60 °C

For low voltages up to 50 V

16 A

Wear-free contacts for aggressive atmosphere

Ambient Conditions

  • Ambient temperature - -50 °C ... +55 °C (max. 12 A) -50 °C ... +60 °C (max. 10 A)
  • Ambient temperature max. - +55 °C
  • Ambient temperature max.2 - +60 °C
  • Ambient temperature min. - -50 °C
  • Ambient temperature min. 2 - -50 °C
  • Ambient temperature min. note - max. 12 A
  • Ambient temperature min. note 2 - max. 10 A

Components

  • Cable diameter - 8.00 - 15.00 mm
  • Cable diameter note - Ring 1 + 2 + 3 + 4: 8 ... 11 mm Ring 2 + 3 + 4: 11 ... 15 mm

Electrical Data

  • Auxiliary contacts available - No
  • Frequency range - 100 - 200 Hz
  • N-pole present - No
  • Optional auxiliary contacts - No
  • PE-pole present - No
  • Rated operational current - 10.000 - 12.000 A
  • Rated operational current - 12.000 A
  • Rated operational current 2 - 0.000 - 10.000 A
  • Rated operational current 2 - 10.000 A
  • Rated operational voltage AC - 25.00 V
  • Rated operational voltage AC - 20.00 - 25.00 V
  • Rated operational voltage AC - 20.00 - 25.00 V / 40.00 - 50.00 V
  • Rated operational voltage AC 2 - 40.00 - 50.00 V
  • Type of voltage - Extra-low voltage

Explosion Protection

  • Ambient temperature °C - -50 - 55 °C
  • Ambient temperature °C 2 - -50 - 60 °C
  • Application range (zones) - 1, 2, 21, 22
  • ATEX dust certificate - PTB 16 ATEX 1017
  • ATEX gas certificate - PTB 16 ATEX 1017
  • Certificate EAC - TS RU S-DE.AA87.B.00723
  • Certificates - ATEX (PTB), EAC (CCVE), IECEx (PTB)
  • Dust explosion protection ATEX - II 2 D Ex tb IIIC T70 °C Db
  • Dust explosion protection EAC - Ex tb IIIC T70 °C Db Ex tb IIIC T60 °C...T75°C Db
  • Dust explosion protection IECEx - Ex tb IIIC T70 °C Db
  • Gas explosion protection ATEX - II 2 G Ex eb IIC T6 Gb
  • Gas explosion protection EAC - 1 Ex db e IIC T6 Gb
  • Gas explosion protection IECEx - Ex eb IIC T6 Gb
  • IECEX dust certificate - IECEx PTB 16.0029
  • IECEX gas certificate - IECEx PTB 16.0029
  • Languages of the documentation - English, German

General

  • Functional Description - The new R. STAHL Series 8573/12 plugs are designed for 2- or 3-pole applications up to 16 A. The robust plastic plugs are resistant to corrosive chemicals and gases. The floating pins allow them to be inserted and removed quickly and easily. The inner, pivoting strain relief makes it easier to install the cables quickly. Corrosion-free contact pins made from high-quality materials ensure optimum electrical contact. The new Series 8573/12 plug replaces the plug Series 8575, is 100% compatible with this Series and can be used with Series 8575 sockets.
  • Highlights - Zones 1, 2, 21, 22, degree of protection IP66, extreme temperature range of –50 … +60 °C For low voltages up to 50 V 16 A Wear-free contacts for aggressive atmosphere
  • Product Description - Plug
  • Product Type - 8573/12-204
  • Title Product Variant Technical Data - 8573/12-204 PL 20-25Vu.40-50V,>100-200Hz
  • WebCode - 8573D

Mechanical Data

  • Coding (clock hour position) - 4
  • Colour code - green
  • Connection terminals finely-stranded max. - 1 x 4,00 mm2
  • Connection terminals min. - 0.75 mm²
  • Connection terminals solid max. - 999.99 mm²
  • Degree of protection (IP) - IP66
  • Degree of protection note - according to IEC/EN 60529
  • Detailed number of poles - 2 P
  • Enclosure material - Polyamide, Glass fibre reinforced
  • Height - 76.000 mm
  • Length - 166.100 mm
  • Series - SolConeX
  • Silicone-free - No
  • Type of connection cable - Finely stranded, solid
  • Weight - 0.300 kg
  • Width - 76.000 mm
243201
243201
R. STAHL Plug
Zones 1, 2, 21, 22, degree of protection IP66, extreme temperature range of –50 … +60 °C

For low voltages up to 50 V

16 A

Wear-free contacts for aggressive atmosphere

Ambient Conditions

  • Ambient temperature - -50 °C ... +55 °C (max. 12 A) -50 °C ... +60 °C (max. 10 A)
  • Ambient temperature max. - +55 °C
  • Ambient temperature max.2 - +60 °C
  • Ambient temperature min. - -50 °C
  • Ambient temperature min. 2 - -50 °C
  • Ambient temperature min. note - max. 12 A
  • Ambient temperature min. note 2 - max. 10 A

Components

  • Cable diameter - 8.00 - 15.00 mm
  • Cable diameter note - Ring 1 + 2 + 3 + 4: 8 ... 11 mm Ring 2 + 3 + 4: 11 ... 15 mm

Electrical Data

  • Auxiliary contacts available - No
  • Frequency range - 401 - 500 Hz
  • N-pole present - No
  • Optional auxiliary contacts - No
  • PE-pole present - No
  • Rated operational current - 10.000 - 12.000 A
  • Rated operational current - 12.000 A
  • Rated operational current 2 - 0.000 - 10.000 A
  • Rated operational current 2 - 10.000 A
  • Rated operational voltage AC - 25.00 V
  • Rated operational voltage AC - 20.00 - 25.00 V / 40.00 - 50.00 V
  • Rated operational voltage AC - 20.00 - 25.00 V
  • Rated operational voltage AC 2 - 40.00 - 50.00 V
  • Type of voltage - Extra-low voltage

Explosion Protection

  • Ambient temperature °C - -50 - 55 °C
  • Ambient temperature °C 2 - -50 - 60 °C
  • Application range (zones) - 1, 2, 21, 22
  • ATEX dust certificate - PTB 16 ATEX 1017
  • ATEX gas certificate - PTB 16 ATEX 1017
  • Certificate EAC - TS RU S-DE.AA87.B.00723
  • Certificates - ATEX (PTB), EAC (CCVE), IECEx (PTB)
  • Dust explosion protection ATEX - II 2 D Ex tb IIIC T70 °C Db
  • Dust explosion protection EAC - Ex tb IIIC T70 °C Db Ex tb IIIC T60 °C...T75°C Db
  • Dust explosion protection IECEx - Ex tb IIIC T70 °C Db
  • Gas explosion protection ATEX - II 2 G Ex eb IIC T6 Gb
  • Gas explosion protection EAC - 1 Ex db e IIC T6 Gb
  • Gas explosion protection IECEx - Ex eb IIC T6 Gb
  • IECEX dust certificate - IECEx PTB 16.0029
  • IECEX gas certificate - IECEx PTB 16.0029
  • Languages of the documentation - English, German

General

  • Functional Description - The new R. STAHL Series 8573/12 plugs are designed for 2- or 3-pole applications up to 16 A. The robust plastic plugs are resistant to corrosive chemicals and gases. The floating pins allow them to be inserted and removed quickly and easily. The inner, pivoting strain relief makes it easier to install the cables quickly. Corrosion-free contact pins made from high-quality materials ensure optimum electrical contact. The new Series 8573/12 plug replaces the plug Series 8575, is 100% compatible with this Series and can be used with Series 8575 sockets.
  • Highlights - Zones 1, 2, 21, 22, degree of protection IP66, extreme temperature range of –50 … +60 °C For low voltages up to 50 V 16 A Wear-free contacts for aggressive atmosphere
  • Product Description - Plug
  • Product Type - 8573/12-211
  • Title Product Variant Technical Data - 8573/12-211 PL 20-25Vu.40-50V,>400-500Hz
  • WebCode - 8573D

Mechanical Data

  • Coding (clock hour position) - 11
  • Colour code - green
  • Connection terminals finely-stranded max. - 1 x 4,00 mm2
  • Connection terminals min. - 0.75 mm²
  • Connection terminals solid max. - 999.99 mm²
  • Degree of protection (IP) - IP66
  • Degree of protection note - according to IEC/EN 60529
  • Detailed number of poles - 2 P
  • Enclosure material - Polyamide, Glass fibre reinforced
  • Height - 76.000 mm
  • Length - 166.100 mm
  • Series - SolConeX
  • Silicone-free - No
  • Type of connection cable - Finely stranded, solid
  • Weight - 0.300 kg
  • Width - 76.000 mm
243202
243202
R. STAHL Plug
Zones 1, 2, 21, 22, degree of protection IP66, extreme temperature range of –50 … +60 °C

For low voltages up to 50 V

16 A

Wear-free contacts for aggressive atmosphere

Ambient Conditions

  • Ambient temperature - -50 °C ... +40 °C (max. 16 A) -50 °C ... +55 °C (max. 12 A)
  • Ambient temperature max. - +40 °C
  • Ambient temperature max.2 - +55 °C
  • Ambient temperature min. - -50 °C
  • Ambient temperature min. 2 - -50 °C
  • Ambient temperature min. note - max. 16 A
  • Ambient temperature min. note 2 - max. 12 A

Components

  • Cable diameter - 8.00 - 15.00 mm
  • Cable diameter note - Ring 1 + 2 + 3 + 4: 8 ... 11 mm Ring 2 + 3 + 4: 11 ... 15 mm

Electrical Data

  • Auxiliary contacts available - No
  • Frequency range - 50 - 60 Hz
  • N-pole present - No
  • Optional auxiliary contacts - No
  • PE-pole present - No
  • Rated operational current - 16.000 A
  • Rated operational current - 10.000 - 16.000 A
  • Rated operational current 2 - 12.000 A
  • Rated operational current 2 - 10.000 - 12.000 A
  • Rated operational current 3 - 10.000 A
  • Rated operational current 3 - 0.000 - 10.000 A
  • Rated operational voltage AC - 40.00 - 50.00 V
  • Rated operational voltage AC - 50.00 V
  • Type of voltage - Extra-low voltage

Explosion Protection

  • Ambient temperature °C - -50 - 40 °C
  • Ambient temperature °C 2 - -50 - 55 °C
  • Application range (zones) - 1, 2, 21, 22
  • ATEX dust certificate - PTB 16 ATEX 1017
  • ATEX gas certificate - PTB 16 ATEX 1017
  • Certificate EAC - TS RU S-DE.AA87.B.00723
  • Certificates - ATEX (PTB), EAC (CCVE), IECEx (PTB)
  • Dust explosion protection ATEX - II 2 D Ex tb IIIC T70 °C Db
  • Dust explosion protection EAC - Ex tb IIIC T70 °C Db Ex tb IIIC T60 °C...T75°C Db
  • Dust explosion protection IECEx - Ex tb IIIC T70 °C Db
  • Gas explosion protection ATEX - II 2 G Ex eb IIC T6 Gb
  • Gas explosion protection EAC - 1 Ex db e IIC T6 Gb
  • Gas explosion protection IECEx - Ex eb IIC T6 Gb
  • IECEX dust certificate - IECEx PTB 16.0029
  • IECEX gas certificate - IECEx PTB 16.0029
  • Languages of the documentation - English, German

General

  • Functional Description - The new R. STAHL Series 8573/12 plugs are designed for 2- or 3-pole applications up to 16 A. The robust plastic plugs are resistant to corrosive chemicals and gases. The floating pins allow them to be inserted and removed quickly and easily. The inner, pivoting strain relief makes it easier to install the cables quickly. Corrosion-free contact pins made from high-quality materials ensure optimum electrical contact. The new Series 8573/12 plug replaces the plug Series 8575, is 100% compatible with this Series and can be used with Series 8575 sockets.
  • Highlights - Zones 1, 2, 21, 22, degree of protection IP66, extreme temperature range of –50 … +60 °C For low voltages up to 50 V 16 A Wear-free contacts for aggressive atmosphere
  • Product Description - Plug
  • Product Type - 8573/12-212
  • Title Product Variant Technical Data - 8573/12-212 PL 40-50V, 50/60Hz
  • WebCode - 8573D

Mechanical Data

  • Coding (clock hour position) - 12
  • Colour code - light grey
  • Connection terminals finely-stranded max. - 1 x 4,00 mm2
  • Connection terminals min. - 0.75 mm²
  • Connection terminals solid max. - 999.99 mm²
  • Degree of protection (IP) - IP66
  • Degree of protection note - according to IEC/EN 60529
  • Detailed number of poles - 2 P
  • Enclosure material - Polyamide, Glass fibre reinforced
  • Height - 76.000 mm
  • Length - 166.100 mm
  • Series - SolConeX
  • Silicone-free - No
  • Type of connection cable - Finely stranded, solid
  • Weight - 0.300 kg
  • Width - 76.000 mm
1 - 12 of 13 Part Numbers

Documentation

Data Sheet

Instantly populate your store or catalog
CREATE YOUR SITE
or book a demo with the Yodify Team
show more
