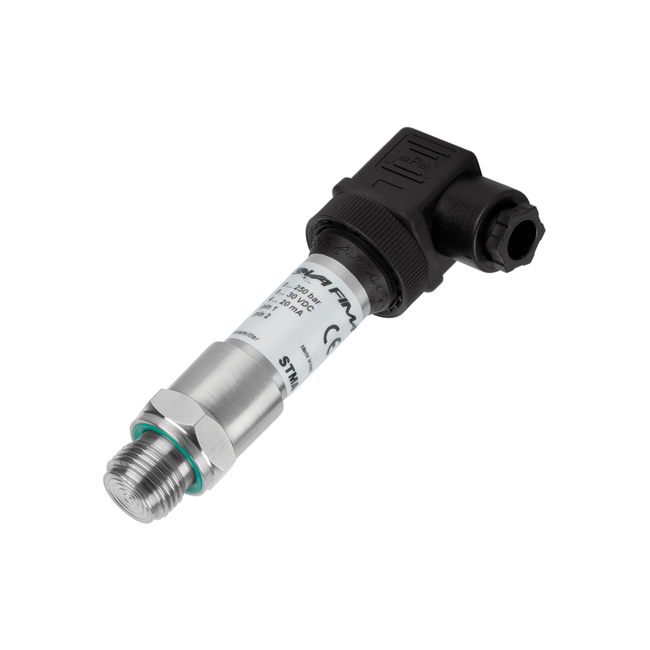

ST MA/LC Ceramic Pressure Transmitter Flush Diaphragm
Brand: Nuova Fima
Features
- Wetted parts: Stainless steel AISI 316L
- Process fluid temperature: Up to 150° C (300° F)
- EMC emission and immunity: As per EN 61326
- Wiring: Shieldless cable
- Case: With ventilation device
- Calibration: Adjustable
Specifications
Brand
Accuracy
- ≤ ± 0.5 of Span
Ambient Temperature Range
- -13° to +185° F (-20° to +85° C)
Annual Drift
- ≤ 0.2 % of Span
Case
- Stainless Steel, Vented for Pressure Ranges ≤ 230 psi (≤ 16 bar)
Diaphragm
- AISI 316L Stainless Steel
Emission & Immunity Standard
- As Per IEC 61326, (Group 1 - B Class, Industrial Application)
Filling Liquid
- Silicon Oil
IP Protection Rating
- IP65 as Per EN 60529
Non-Linearity (BFSL)
- ≤ 0.25 % of Span as Per IEC 61298-2
Non-Repeatability
- ≤ 0.1 % of Span as Per IEC 61298-2
Output Signal
- 4-20 mA, 0 to 5 Vcc, 0-10 Vcc
Process Connection
- AISI 316L Stainless Steel as Per DIN 3852
Process Fluid Temperature
- -22° to +212° F (-30° to +100° C)
- -22° to +302° F (-30° to +150° C) for Version with Heat Dissipator Cod. 8.SMA to TA3
Range
- 0 to 0.1 / 0 to 600 bar, Relative
Response Time
- < 10 milliseconds (Adjustment)
- < 150 milliseconds (Power On)
Sensor
- Ceramic
Shock Resisitance
- 40 G (6 Ms, as Per IEC M60068-2-27)
Storage Temperature
- -40° to +185° F (-40° to +100° C)
Vibration Resisitance
- 20 G (10 to 2000 Hz, as Per IEC M60068-2-6)
Zero Calibration & Span Calibration
- ± 5 % of Span Typical
