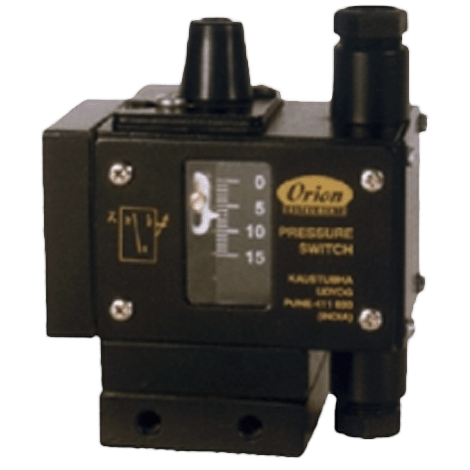

MJ Series 2 SPDT High Range Pressure Switch
Brand: Orion InstrumentsMJ series pressure switches are housed in pressure die cast Aluminum powder coated enclosure and are recommended for panel mounting or outdoor service based on the type of enclosure opted for.
No stage differential can be set in these 2 SPDT versions (MJ series).
Both microswitches are synchronized for operation within practical limits and a slight stage difference is bound to remain between the setpoints (generally not exceeding ±2% of FSR).
The scale indicates the rising setpoint for one of the microswitches.
The repeat accuracy is better than ±2% Full ScaleR. 3/8" cable entries are provided for cables and a terminal strip suitable for wired ends is fitted inside the enclosure.
Other variations for cable termination, such as plugin connectors can be provided.
Pressure port is 1/4" BSPF standard.
Features- Compact
- Separate chamber for working parts
- Choice of wetted parts to suit working media
- Electrical rating: 5 A, 250
- Vac; 0.2 A, 250 Vdc (res.)
- Proof pressure available can be 4 times MWP (optional)
- Pressure port: 1/4" BSPF
Specifications
Brand
Accuracy
- ± 2 % of Full Scale Range
Applications
- Boilers & Compressors
- Fire Fighting Systems
- Transformers
- Water Treatment
BSP Connection
- 1/4” BSP Female
Cable Entry
- Cable Gland (3/8”)
Diaphragm Material
- Neoprene
- Teflon
Differential Pressure
- psi: 0.58 to 43.51 (kPa: 4 to 300, bar: 0.04 to 3) - Max.
Electrical Rating
- 0.2 A at 250 Vdc - Resistive
- 5 A at 250 Vac
Enclosure Finish
- Die Cast Aluminum Powder-Coated
Enclosure, Body Material
- 316 Stainless Steel
- Aluminum
- Brass
Environmental Protection
- IP54
- IP65 as Per IS 2147
Operating Pressure
- Maximum
Proof Pressure
- 4 times Range of, Max.
Set Point - Decreasing
- bar: 0.067 to 25
- kPa: 7 to 2,500
- psi: 0.97 to 362.6
Set Point - Increasing
- bar: 0.067 to 25
- kPa: 7 to 2,500
- psi: 0.97 to 362.6
Switch Quantity
- 2 Switches
Switch Type
- SPDT
System Pressure
- bar: 0 to 35
- kPa: 0 to 3,500
- psi: 0 to 507.63
