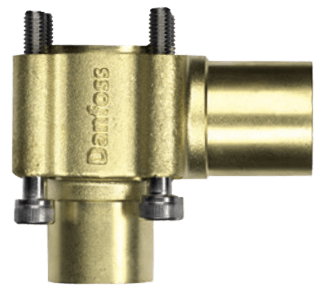

Danfoss Valve Body for Thermostatic Expansion Valve, TE 5/12/20/55

TE 5/TE 12/TE 20/TE 55 Valve Body for Expansion Valve

Brand: Danfoss

The TE 5 - TE 55 series expansion valve regulate the injection of refrigerant into evaporators. It controls the refrigerant flow based on the superheat.

The exchangeable power element is produced with the well known Danfoss laser welding technology for extended lifetime capability.

The TE 5 - TE 55 series is available with a wide range of orifices which will cover a wide range of applications.

Features

Wide operating range: Wide operating range: -40° to 10° C (-40° to 50° F ); -60° to -25° C (-75° to -15° F)
Refrigerants: R407F, R407A, R448A, R449A, R404A, R507, R22, R134a and R407C
Laser welded stainless steel power element, capillary tube and bulb
Wide capacity range, rated capacity from: R448A/R449A: 10.4 to 226 kW (2.97 to 64.5 TR); R407F: 11.0 to 250 kW (3.14 to 71.0 TR); R404A/R507: 8.17 to 182 kW (2.33 to 52.0 TR)
MOP function is available
Superior charge performance
PS / MWP (maximum working pressure): 28 bar / 400 psig
Minimized capacity gap and overlap between orifices
TE 55 has balanced port design
Patented bulb strap design
Interchangeable orifice assembly:
- easy storage
- easy capacity matching
- better service

1 - 12 of 33 Part Numbers

per page:

067

Type - TE 5
Connections / Flow Direction - Solder Angleway

067B4002

Type - TE 5
Connections / Flow Direction - Solder Straightway
Connection - 12 x 16 mm

067B4003

Type - TE 5
Connections / Flow Direction - Solder Straightway
Connection - 12 x 22 mm

067B4004

Type - TE 5
Connections / Flow Direction - Solder Angleway
Connection - 12 x 16 mm

067B4005

Type - TE 5
Connections / Flow Direction - Solder Angleway
Connection - 12 x 22 mm

067B4007

Type - TE 5
Connections / Flow Direction - Solder Straightway
Connection - 1/2" x 5/8"

067B4008

Type - TE 5
Connections / Flow Direction - Solder Straightway
Connection - 1/2" x 7/8"

067B4009

Type - TE 5
Connections / Flow Direction - Solder Angleway
Connection - 1/2" x 5/8"

067B4010

Type - TE 5
Connections / Flow Direction - Solder Angleway
Connection - 1/2" x 7/8"

067B4011

Type - TE 5
Connections / Flow Direction - Solder Angleway
Connection - 5/8" x 7/8"

067B4012

Type - TE 5
Connections / Flow Direction - Solder Angleway
Connection - 16 x 22 mm

067B4013

Type - TE 5
Connections / Flow Direction - Flare Angleway
Connection - 1/2" x 5/8"

1 - 12 of 33 Part Numbers
