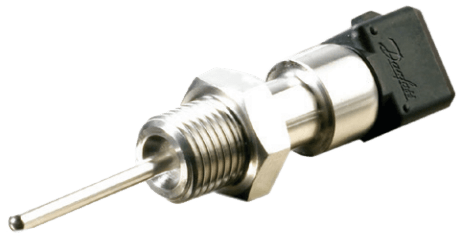

MBT 3270 Temperature Sensor
Brand: Danfoss
The flexible temperature sensor MBT 3270 can be used in many industrial applications such as: Air Compressors, Mobile Hydraulics and Exhaust gas return systems. In other words applications where robustness, size and performance are essentials.
The sensor can be equipped with different sensing elements (RTD, NTC and PTC) and is available with different electrical connections (Cable, Delphi Metri Pack, AMP junior power Timer, Deutch DT04).
Features- OEM Temperature Sensor program
- Various sensor elements available (RTD, NTC, PTC)
- Robust, high protection against moisture
- Fixed measuring insert
- Brass or stainless steel
- Very low response times
- Temperature range up to 300° C
- Avaiable with cable or integrated plug (Delphi Metri Pack, AMP junior power Timer, Deutsch DT04)
Specifications
Brand
Ambient Temperature Range
- -40° to 125° C (-40° to 257° F) - Plug
- -40° to 200° C (-40° to 392° F) - Cable
Applications
- OEM Applications
Approvals & Certifications
- IEC 60529
BSP Connection
- G 1/2" A Male
- G 1/4" A Male
- G 3/8" A Male
Burst Pressure
- psi: 13,050 (kPa: 90,000, bar: 900) Min.
Cable Length
- 1.64 ft (0.5 m)
- 3.28 feet (1 m)
- 6.56 feet (2 m)
Cable Material
- Polyolefin, Screened
- PVC
- Silicone
- Teflon
Cable Type
- Stripped Cables
Connection Material
- 316 Stainless Steel
- Brass
Electrical Connectors
- AMP Junior Power Timer, AMP Spade
- Delphi Metri Pack
- Deutsch DT04
- M10 x 1
- M14 x 1.5
Environmental Protection
- IP00
- IP65
- IP67
Gasket Material
- NBR
- Viton
Insertion 'U' Length
- 1.378" (3.5 cm) - Stainless Steel
- 1.575" (4 cm) - Brass
- 1.969" (5 cm) - Stainless Steel
- 2.362" (6 cm) - Brass
- 2.756" (7 cm) - Stainless Steel
- 3.15" (8 cm) - Brass
Materials of Construction
- 316 Stainless Steel - Protection Tube
- Brass - Process Connection
- Stainless Steel - Tube Material
Operating Pressure
- psi: 7,252 (kPa: 50,000, bar: 500) - Max.
Plug Material
- PPS (Ryton 4)
Process Temperature
- -50° to 300° C (-58° to 572° F)
Response Time
- 0.5 to 18 seconds for Water
Sensor / Probe Connection
- 2-Wire
- 3-Wire
- 4-Wire
Sensor / Probe Material
- Brass
- Stainless Steel
Sensor / Probe Type
- NTC
- Pt100
- Pt1000
- PTC 2000 (KTY 81 - 210)
- RTD
Shock
- 50 G at 6 ms
Tolerance
- ± 1 % at 25° C (77° F)
- ± 2 %
- ± 3 %
- EN 60751 Class B: ± (0.3 + 0.005 x T)
Torque
- 150 in/lb (17 Nm) - max.
- 212 in/lb (24 Nm) - max.
Vibration
- 15.3 G at 20 to 2000 Hz, 8 hours
- OEM Applications
