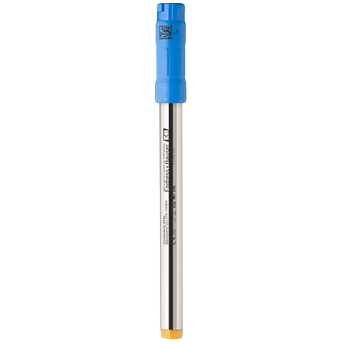

Digital Conductivity Sensor Memosens CLL47E
Brand: Endress+Hauser Group Services AGMemosens CLL47E is the four-electrode conductivity sensor for random sampling and measurements in the laboratory. It merges easy handling with plug and play system with effortless cleaning thanks to the seamless design. With its platinum electrodes and wide measuring range, a large variety of samples can be covered while delivering reliable measurements right at the measuring point.
Memosens CLL47E is suited for:
- Check of on-line measuring loops
- Analysis of grab samples (on-site as well as in the laboratory)
- Measurement at process points where regular checks are recommended
- Wide range of measurement allows for analysis of many different samples
- Precise adjustment and reliable measurement with a quality cerificate stating individual cell constant
- Easy to clean thanks to seamless design
- Solid platinum electrodes provide easy maintenance and long lifetime
- Benefit from Memosens 2.0 technology with implemented cell constante, true plug and play and traceable calibration history
- Integrated temperature sensor for automatic temperature compensation
- Supports the requirements of quality management with tamper-proof data storage including serial number and calibration history
Specifications
Measuring
- Conductivity
Measuring Range
- 5 μS/cm to 200 mS/cm
Material of Construction
- Stainless Steel, Ceramic, Platinum
Process Temperature
- 0° to 100° C (32° to 212° F)
Process Pressure
- 1 bar, Not Intended for Continuous Measurement in Process
Temperature Sensor
- Pt1000
Ingress Protection
- IP68
Connection
- Inductive, Digital Connection Head with Memosens 2.0 Technology
Dimensions
- Diameter: 12 mm (0.47 inch)
- Shaft Length: 120 mm (4.72 inch)
- Laboratory and Sample Measurement in The Field
