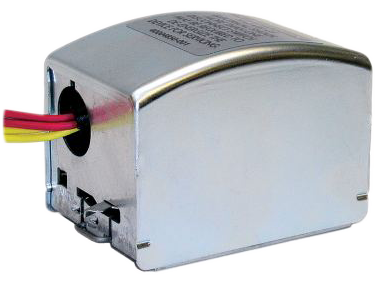

24 Vac, 50/60 Hz Replacement Head with End Switch, for V8043E 5000 Series

Brand: Resideo Technologies Inc

24 Vac, 50/60 Hz replacement head with end switch, for V8043E 5000 series.

1 - 2 of 2 Part Numbers
40003916-526/U
40003916-526/U
24 Vac, 50/60 Hz Replacement Head with End Switch, for V8043E 5000 Series
40003916-526/Z
40003916-526/Z
24 Vac, 50/60 Hz Replacement Head with End Switch, for V8043E 5000 Series
1 - 2 of 2 Part Numbers

Specifications

Used With

  • Two-way valves; Valves with Action of Spring return to close

Frequency

  • 50 Hz; 60 Hz

Voltage

  • 24 Vac

Ambient Temperature Range

  • 52 °C Maximum
  • 125 °F Maximum

Electrical Connections

  • 18 in. leads on same side of manual lever
  • 457 mm leads on same side of manual lever

Auxiliary Switch Ratings

  • 4.4 A running @ 120 V; 50 VA pilot duty @ 24 V

Valve Type

  • Zone Valve

  • Replacement Head for V8043E 5000 Series Zone Valve
