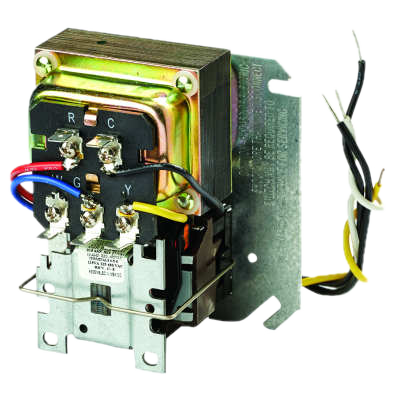

R8285B1038/U 40 VA Fan Center with DPDT Switch Action
Brand: Resideo Technologies Inc
Provides low voltage control of line voltage fan motors and auxiliary circuits in heating, cooling, or air conditioning systems.
Features- Transformer Powers Low Voltage Control Systems and Provides Overload Protection.
- Low Voltage Terminal Board Provides Convenient Connections for Thermostat and Heating and Cooling Equipment Wiring.
- Mounts on Standard 4" x 4" Junction Box.
- Relay is Easily Replaced without Disturbing Wiring.
Specifications
Brand
Dimension
- 4-3/16 in. high, 4-1/2 in. wide, 2-13/16 in. deep.
- 106 mm high, 114 mm wide, 71 mm deep
Includes
- R8222D
Electrical Ratings
- 11 W maximum
Frequency
- 60 Hz
Approvals, Underwriters Laboratories Inc.
- UL Component Recognized; File No. E4436, Vol.15, Sec.1, Guide No.XAPX2
Approvals, Canadian Standards Association
- Certified: File No. LR95329-17
Tradeline Value
- Tradeline
Supply Voltage
- 40 VA; 26.5 V - Secondary
Voltage
- 120 Vac
Switching Action
- DPDT
Horsepower
- 3/4 HP
- For "Total Comfort" Applications with Electronic Air Cleaner, Humidifier and Blower Motor.
