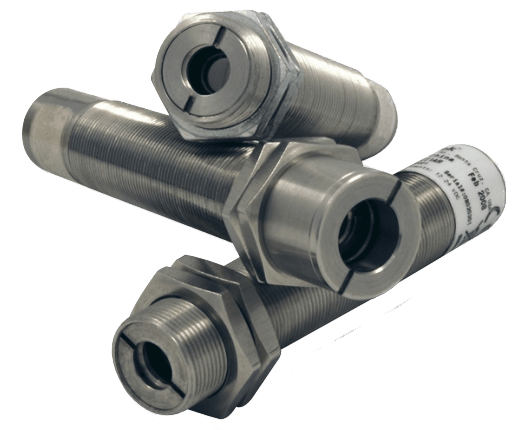

CM Infrared Temperature Sensor
Brand: Raytek
The Raytek CM sensor provides the advantages of infrared temperature measurement in a powerful, compact, integrated sensor.
Designed for easy integration, the CM sensor can easily replace traditional contact probes with a J-type or K-type thermocouple output, or with a user scaleable 0-5 volt output, if your application is susceptible to noise.
Features- Scaleable 0-5 V, type J or K output
- Wide -20° to 500° C (-4° to 932° F) temperature range
- Rugged IP65 (NEMA-4) stainless steel housing
- Rugged 13:1 optics at 90% energy
- 150 mSec (95%) response time
- Alarm output
- Sensor status/self diagnostic indicator LED
- RS232 digital communications for sensor set-up and monitoring
- Adjustable signal processing
- DataTemp® Multidrop software compatible
- Accessories for air purging and lens protection
Specifications
Brand
Accuracy
- ± 0.2° C (± 0.36° F)
- ± 1.5 % of Reading
- ± 3.5° C (± 6.3° F)
- ± 4° C (± 7.2° F)
- ± 5° C (± 9° F)
Ambient Temperature Range
- -10° to 70° C (14° to 158° F)
Approvals & Certifications
- IEC 68-2-27
Communication
- RS-232
Environmental Protection
- IP65 (NEMA -4)
Frequency
- 11 to 200 Hz
Humidity
- 10 to 95 % Relative Humidity, Non-Condensing
Output
- 0-5 V
- 24 Vdc at 20 mA
Output Format
- Voltage Output
Output Load
- 100 ohms - Thermocouple Output Impedance
- 50 kiloohms - Voltage Output Min. Load Impedance
Power
- 24 Vdc ± 20 % at 20 mA
Repeatability
- ± 0.5 % of Reading
- ± 1° C (± 2° F)
- ± 2° C (± 3.6° F)
Resolution
- 0.1° C
Response Time
- 150 milliseconds
Shock
- 50 G
Storage Temperature
- -20° to 85° C (-4° to 185° F)
Switch Type
- Transistor
Temperature Range
- -20° to 500° C (-4° to 932° F)
- -30° to 105° C (-22° to 221° F) - Cable Temperature Range
Tolerance
- 3° C (37.4° F)
Vibration
- 3 G
- MIL-STD-810D, 3 G
