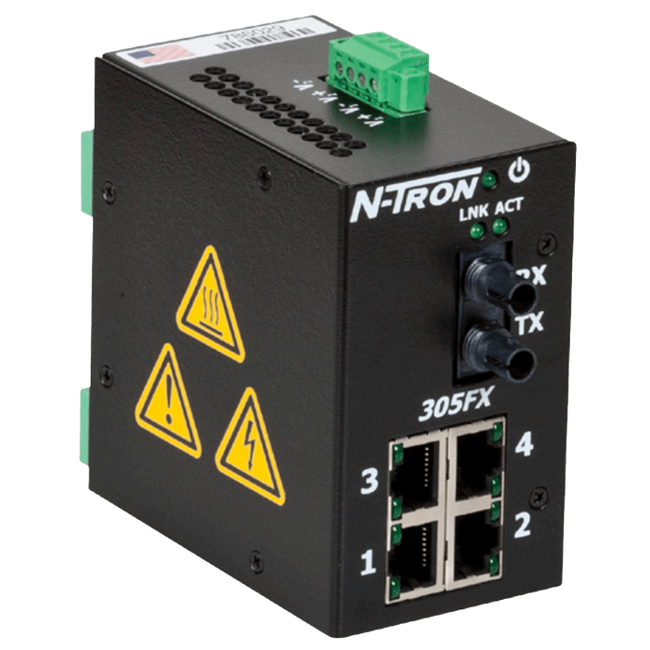

305FX Industrial Ethernet Switch
Brand: Red Lion ControlsThe N-Tron 305FX is an unmanaged, five port Industrial Ethernet Switch.
It is housed in a ruggedized DIN-RAIL enclosure and is designed for use in industrial data acquisition, control, and Ethernet I/O applications.
Features- American Bureau of Shipping (ABS) type approval
- Four 10/100BaseTX RJ-45 ports
- One 100BaseFX Port ST or SC
- RJ-45 ports support full/half duplex operation
- LED link/activity status indication
- Auto sensing duplex, speed and MDIX (RJ-45)
- Up to 1.0 Gb/s maximum throughput
- Rugged industrial DIN-Rail Enclosure
- Redundant power inputs (10-30 Vdc)
- N-view monitoring option
Specifications
Brand
Applications
- Electric Utility Substations
- Ethernet I/O Applications
- Industrial Data Acquistion
- Shipboard Applications
- Traffic Control
Approvals & Certifications
- ABS for Shipboard Applications
- CE EN 61000-6-2,4, EN 55011, EN 61000-4-2, 3, 4, 5, 6
- FCC Part 15 Class A
- GOST-R
- IEEE 802.3, 1613 for Electric Utility Substations
- RoHS
- UL 508, ANSI / ISA 12.12.01-2007 (US) for use in Class I & II, Div. 2, & Class III, Div. 1 & 2 Hazardous Locations Grade A, B, C, D, T4A, Canada - C22.2 No. 142-M1987 & C22.2 No. 213-1987 for use in Class I, Div. 2, Hazardous Locations
Current
- Inrush: 10 A / 0.9 ms at 24 V
Electrical Connectors
- 10/100Base-TX: Four (1) RJ45 TX Ports
- 100BaseFX: One (1) ST or SC Duplex Port
Environmental Protection
- NEMA TS1
- NEMA TS2
Humidity
- 10 to 95 % RH, Non-Condensing
Indication
- LED Link / Activity Status Indication
Input
- 10-30 Vdc
- 250 mA at 24 V
Mounting
- DIN Rail Mounting
Operating Temperature
- -40° to 70° C (-40° to 158° F)
Shock
- 200 G at 10 ms
Storage Temperature
- -40° to 85° C (-40° to 185° F)
Vibration
- 50 G, 5 to 200 Hz, Triaxial
Wiring
- Wiring Clearance Front: 4" (10.16 cm)
- Wiring Clearance Top: 1" (2.54 cm)
