Krohne Non-Contact Radar Level Meter, OPTIWAVE 7300 C

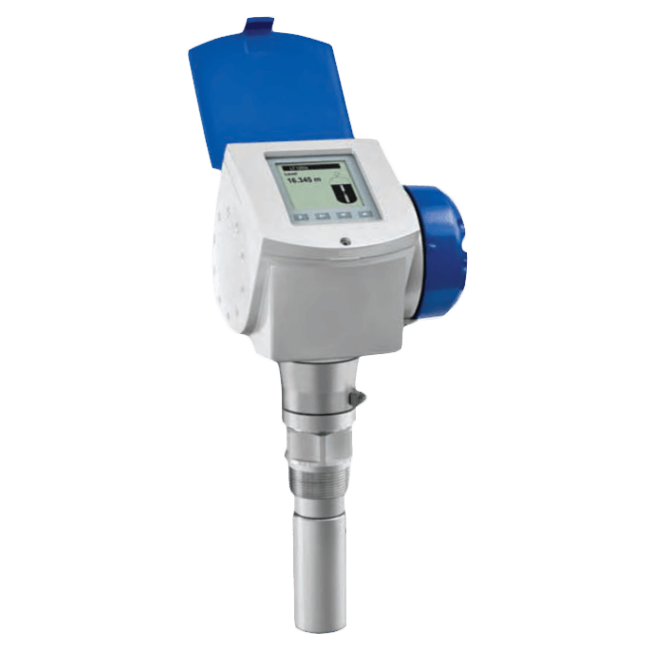

OPTIWAVE 7300 C Non-Contact Radar Level Meter

Brand: Krohne
Add Product to My Catalog

This device is a non-contact Radar (FMCW) Level Meter for distance, level, volume and mass measurement of liquids, pastes and slurries.

It gives a stabler measurement than pulse radar and is well suited to agitated process conditions.

The device can operate at very low and very high process temperatures as long as the process connection temperature limits are observed.
Features
  • ±0.12" (±3 mm) standard accuracy
  • Optionally equipped with a 4-button touch screen display and an easy-to-use setup wizard
  • Reliable measurement in difficult process conditions
  • Operates up to a process connection temperature of 200° C (390° F) and psig: 1,450 (kPa: 10,000, bar: 100) for standard applications, and up to 570° C (1058° F) for molten salt applications
  • Measuring range up to 260 feet (80 meters)
  • Horn and drop antenna versions can be extended to suit any nozzle length
  • Drop antenna for corrosive liquids (with optional PTFE/PP flange plate) or where product build-up is likely to occur
  • Sealed drop antenna extension option for pressurized tanks
  • Hygienic antenna for processes where stringent hygiene standards must be obeyed
  • PACTware and DTMs included as standard
  • Optional second current output
  • Directly-accessible graphic touchscreen/wizard (option)
  • Converter rotates 360°
  • Triple barrier gas-tight protection available for working with dangerous gases (using pre-stressed fused glass)
  • Fast motion software that can measure 5 times per second for wave height measurement

View_Details

Specifications

Brand

Accuracy

  • When Distance 33 feet (10 metres): ± 0.03 % of Measured Distance

Alarm

  • Error Signal of High: 22 mA
  • Error Signal of Low: 3.6 mA

Ambient Temperature Range

  • -40° to 80° C (-40° to 175° F)

Applications

  • Level Measurement of Liquids, Pastes & Slurries
  • Process Tanks
  • Storage Tanks
  • Tanks with Agitators
  • Torpedo Ladles (Foundries)
  • Wave Height

Approvals & Certifications

  • ATEX: Ex ia IIC T3 to T6 + DIP, Ex d[ia] IIC T3 to T6 + DIP, Ex ia IIC T3 to T6 + DIP + WHG, Ex d[ia] IIC T3 to T6 + DIP + WHG, 3 G Ex NA II T3 to T6
  • CE
  • CRN
  • CSA: IS Class I/II/III, Div. 1, Groups A, B, C, D, E, F, G, Class I, Zone 0, Ex ia IIC T3 to T6, XP-IS/DIP Class I/II/III, Div. 2, Groups A to D, F, G, Class I, Zone 0, Ex d IIC T3 to T6
  • DNV: Ex ia IIC T6 to T3 Ga, Ex ia IIIC T70° to T95° C Da IP6X, Ex d [ia Ga] IIC T6 to T3 Ga/Gb, Ex Tb [ia Da] IIIC T70° to T95° C Db IP6X
  • EAC
  • EMC Directive 2004/108/EC in Conjunction with EN 61326-1 (2013)
  • FCC
  • FM: IS Class I/II/III, Div. 1, Groups A, B, C, D, E, F, G, Class I, Zone 0, AEx ia IIC T3 to T6, XP-IS/DIP Class I/II/III, Div. 1, Groups A, B, C, D, E, F, G, Class I, Zone 0, AEx d [ia] IIC T3 to T6
  • IEC Ex: Ex ia IIC T2 to T6 + DIP, Ex d Ia IIC T2 to T6 + DIP
  • INMETRO: Ex ia IIC T3 to T6 + DIP, Ex d Ia IIC T3 to T6 + DIP
  • KGS: Ex ia IIC T3 to T6 + DIP, Ex d[ia] IIC T3 to T6 + DIP
  • LVD 2006/95/EC in Conjunction with EN 61010-1 (2001)
  • NAMUR NE 21, 43
  • NEPSI Ex ia IIC T3 to T6 + DIP, Ex d Ia IIC T3 to T6 + DIP
  • RSS-210
  • WHG Z-65.16-425

Approvals & Certifications

  • Calibration
  • R & TTE Directive 1999/5/EC in Conjunction with ETSI EN 302 372-2, ETSI EN 302 729-2

BSP Connection

  • G 1-1/2” (ISO 228)

Cable Entry

  • 1/2” NPT
  • G 1/2”
  • M20 x 1.5

Cable Material

  • Cable Gland: Metal
  • Cable Gland: Plastic

Communication

  • HART

Diameter

  • Diameter of the Outer Sheath of the Cable: 0.28” to 0.47” (7 to 12 mm)

Display

  • 9 Lines, 160x160 Pixels in 8-Step Grayscale with 4-Button Keypad
  • Integrated LCD Display with Sun Cover [-20° to 60° C (-4° to 140° F)]

Electrical Connectors

  • Cable Entry Capacity (Terminal): 0.5 to 1.5 mm²

Enclosure, Body Material

  • 316L Stainless Steel, 1.4401
  • Polyester Coated Aluminum

Environmental Protection

  • IP66
  • IP67
  • NEMA 4X
  • NEMA 6P
  • Weatherproof

Flange Material

  • Polypropylene (PP)
  • PTFE

Flange Size - 1-1/2” (DN 40)

  • 1-1/2” (DN 40) - 150# (RF ASME B16.5)
  • 1-1/2” (DN 40) - 1500# (RJ ASME B16.5)
  • 1-1/2” (DN 40) - 300# (RF ASME B16.5)
  • 1-1/2” (DN 40) - 600# (RF ASME B16.5)
  • 1-1/2” (DN 40) - 900# (RJ ASME B16.5)
  • 1-1/2” (DN 40) - JIS 10K
  • 1-1/2” (DN 40) - PN 40
  • 1-1/2” (DN 40) - PN 100
  • 1-1/2” (DN 40) - PN 63

Flange Size - 2” (DN 50)

  • 2” (DN 50) - 150# (RF ASME B16.5)
  • 2” (DN 50) - 1500# (RF ASME B16.5)
  • 2” (DN 50) - 300# (RF ASME B16.5)
  • 2” (DN 50) - 600# (RF ASME B16.5)
  • 2” (DN 50) - 900# (RJ ASME B16.5)
  • 2” (DN 50) - JIS 10K
  • 2” (DN 50) - PN 100
  • 2” (DN 50) - PN 40
  • 2” (DN 50) - PN 63

Flange Size - 3” (DN 80)

  • 3” (DN 80) - 150# (RF ASME B16.5)
  • 3” (DN 80) - 300# (RF ASME B16.5)
  • 3” (DN 80) - 600# (RF ASME B16.5)
  • 3” (DN 80) - 900# (RF ASME B16.5)
  • 3” (DN 80) - JIS 10K
  • 3” (DN 80) - PN 100
  • 3” (DN 80) - PN 40
  • 3” (DN 80) - PN 63

Flange Size - 4” (DN 100)

  • 4” (DN 100) - 150# (RF ASME B16.5)
  • 4” (DN 100) - 300# (RF ASME B16.5)
  • 4” (DN 100) - 600# (RF ASME B16.5)
  • 4” (DN 100) - 900# (RF ASME B16.5)
  • 4” (DN 100) - JIS 10K
  • 4” (DN 100) - PN 100
  • 4” (DN 100) - PN 16
  • 4” (DN 100) - PN 40
  • 4” (DN 100) - PN 63

Flange Size - 6” (DN 150)

  • 6” (DN 150) - 150# (RF ASME B16.5)
  • 6” (DN 150) - 300# (RF ASME B16.5)
  • 6” (DN 150) - PN 100
  • 6” (DN 150) - PN 16
  • 6” (DN 150) - PN 40
  • 6” (DN 150) - PN 63

Flange Size - 8” (DN 200)

  • 8” (DN 200) - 150# (RF ASME B16.5)
  • 8” (DN 200) - PN 16
  • 8” (DN 200) - PN 40

Flange Type

  • Raised Face (RF)
  • RTJ - Ring Typical Joint

Gasket Material

  • EPDM
  • FKM
  • FPM
  • Kalrez 6375

Materials of Construction

  • Weather Protection: 304 Stainless Steel, 1.4301

Measuring Range

  • Up to 260 feet (80 metres)

NPT Connection

  • 1-1/2” NPT (ASME B1.20.1)

O-Ring Material

  • EPDM
  • FKM
  • FPM
  • Kalrez 6375

Operating Pressure

  • Drop Antenna (PP): psig: -14.5 to 232 (kPa: -100 to 1,600, bar: -1 to 16)
  • Drop Antenna (PTFE) & Horn/Sheet Metal Horn Antenna: psig: -14.5 to 580 (kPa: -100 to 4,000, bar: -1 to 40)
  • Horn/Sheet Metal Horn Antenna: psig: -14.5 to 1,450 (kPa: -100 to 10,000, bar: -1 to 100)
  • Hygienic Antenna (PEEK): psig: -14.5 to 145 (kPa: -100 to 1,000, bar: -1 to 10)

Output

  • 3.8-20.5 mA According to NAMUR NE 43
  • 4-20 mA / HART
  • Current Output: 16 mA HART

Power Supply

  • Terminals Output 1 - Ex d: 20-36 Vdc for an Output of 22 mA at the Terminal
  • Terminals Output 1 - Non-Ex / Ex I: 14-30 Vdc for an Output of 22 mA at the Terminal
  • Terminals Output 2 - Non-Ex / Ex I / Ex d: 10-30 Vdc for an Output of 22 mA at the Terminal

Process Connection Material

  • 316L Stainless Steel, 1.4401
  • Hastelloy C-22 (2.4602)

Process Temperature

  • Drop Antenna (PP): -40° to 100° C (-40° to 210° F)
  • Horn/Sheet Metal Horn Antenna & Drop Antenna (PTFE): -50° to 150° C (-58° to 300° F)
  • Horn/Sheet Metal Horn Antenna: -50° to 200° C (-58° to 390° F)
  • Hygienic Antenna (PEEK): -20° to 150° C (-4° to 300° F)

Repeatability

  • ± 0.04” (± 1 mm)

Resolution

  • ± 3 µA
  • 0.04” (1 mm)

Rotation

  • 360°

Seat / Seal Material

  • Seal: EPDM
  • Seal: FKM
  • Seal: FPM
  • Seal: Kalrez 6375

Storage Temperature

  • -40° to 85° C (-40° to 185° F)

Temperature Range

  • PEI: -50° to 200° C (-58° to 390° F) - Max.

Thermal Drift

  • Typically 50 ppm/K

Tri-Clamp Connection

  • 2” Tri-Clamp

Vibration

  • IEC 60068-2-6 & EN 50178: 1 G, 57 to 150 Hz - Vibration Resistance
  • IEC 60068-2-6 & EN 50178: 10 to 57 Hz, 0.075 mm - Vibration Resistance

Wetted Materials

  • 316L Stainless Steel, 1.4401
  • Hastelloy C-22 (2.4602)
  • PEEK
  • Polypropylene (PP)
  • PTFE
