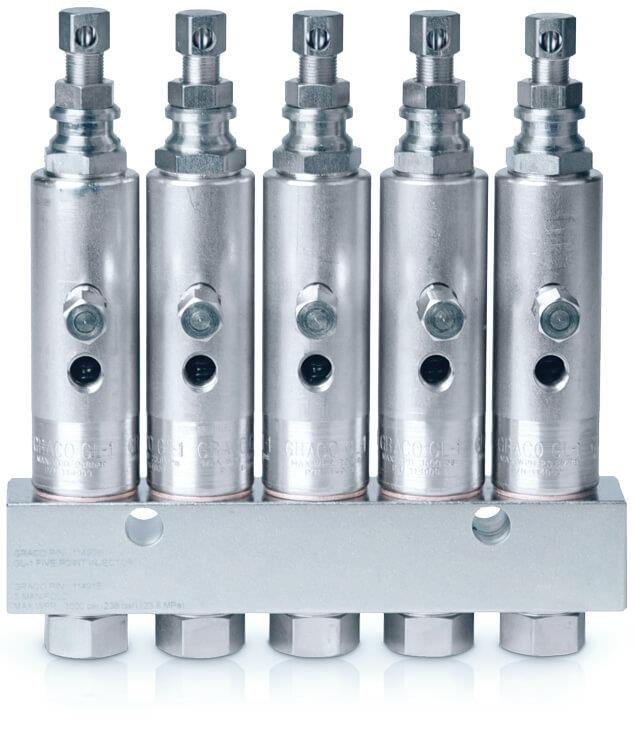

GL-1 Series Grease Injectors

GL-1 Series Grease Injectors

Brand: Graco, Inc
Add Product to My Catalog

GL-1 Series Grease Injectors GL-1 Series Grease Injectors GL-1 Series Grease Injectors GL-1 Series Grease Injectors GL-1 Series Grease Injectors
Custom fit your system with Graco's adjustable GL-1 series grease injectors.

Designed to meet the needs of each lube point, these precision-honed systems provide years of reliable operation in the harshest operating environments.

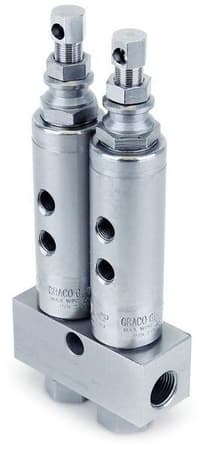

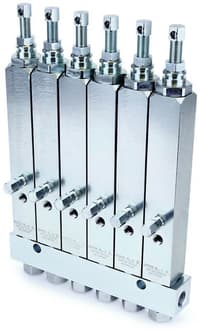

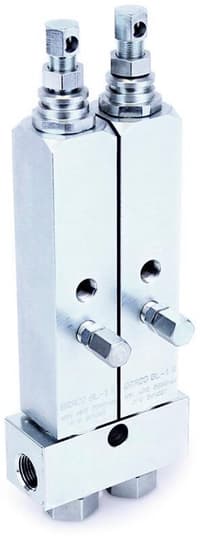

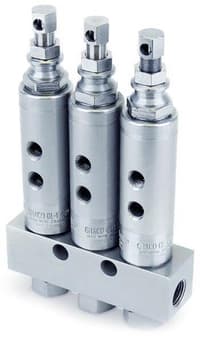

Choose between the standard GL-1 or GL-1 HCP (High Corrosion Protection) models or for heavier duty applications that require higher output select between the GL-1 X or GL-1 XL.
Features
  • The GL-1, GL-1 HCP, GL-1 X, and GL-1 XL injectors are offered both as a stand-alone and a replacement injector for manifold systems for easy customization to a variety of applications.
  • Includes an adjustable hex head nut to make adjusting the ouput simple.
  • No vent holes and fully enclosed press fittings to prevent leaking lubricant.
  • Convenient top-mounted cycle pin indicator for quick confirmation that the injector is functioning properly.
  • Rugged, single piece uni-body design built for the harshest environments.

Specifications

Brand

GL-1 HCP (High Corrosion Protection) Injectors - Maximum Operating Pressure

  • 24.1 MPa, 241 bar

GL-1 HCP (High Corrosion Protection) Injectors - Output Volume Per Cycle

  • Adjustable: 0.008 to 0.08 in³

GL-1 HCP (High Corrosion Protection) Injectors - Recommended Fluids

  • N.L.G.I. #2 Grease down to 0° C

GL-1 HCP (High Corrosion Protection) Injectors - Reset Pressure

  • 4.1 MPa, 41 bar

GL-1 HCP (High Corrosion Protection) Injectors - Suggested Operating Pressure

  • 17.2 MPa, 172 bar

GL-1 HCP (High Corrosion Protection) Injectors - Wetted Parts

  • Carbon Steel, Stainless Steel, Fluoroelastomer

GL-1 Injectors - Maximum Operating Pressure

  • 241 bar, 24 MPa

GL-1 Injectors - Output Volume Per Cycle

  • Adjustable: 0.008 to 0.08 in³

GL-1 Injectors - Recommended Fluids

  • N.L.G.I. #2 Grease down to 0° C

GL-1 Injectors - Reset Pressure

  • 41 bar 4.1 MPa

GL-1 Injectors - Suggested Operating Pressure

  • 172 bar 17 MPa

GL-1 Injectors - Wetted Parts

  • Carbon Steel, Stainless Steel, Copper, Fluoroelastomer
