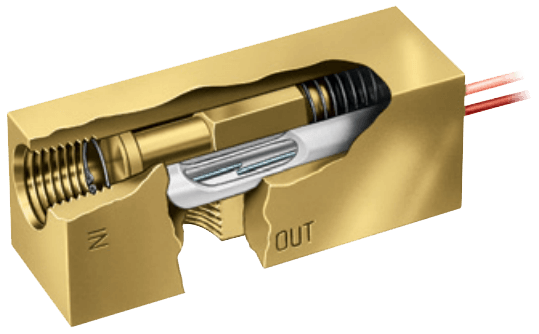

FS-927 Series Flow Switch
Brand: Gems Sensors, IncCompact switches are ideal for use where space is at a premium. Designed for use with water and oil, these switches are suitable for high volume OEM applications.
They are ideal for coolant or lubricant flow monitoring in portable equipment and many other applications with space constraints.
Features- Flow Rate Settings: 0.10 GPM to 1.50 GPM
- Port Size: 1/4˝ NPT
- Primary Construction Material: Brass, Stainless Steel
- Setting Type: Fixed
Specifications
Brand
Accuracy
- Set Point Accuracy: ± 15 %
- Set Point Differential: 20 %, Max.
Approvals & Certifications
- CE
- CSA: File LR30200
- RoHS
- UL: File E31926
- UR
Electrical Connectors
- 18 AWG, 24" (61 cm) PVC Lead Wires
Electrical Contacts
- Normally Closed
- Normally Open
Electrical Rating
- Switch: 20 VA
Enclosure, Body Material
- Brass
- Stainless Steel
Flow Rate
- 0.10 to 1.50 gpm (0.38 to 5.68 LPM)
Media
- Oil
- Water
NPT Connection
- 1/4" NPT Female
Operating Pressure
- psig: 1,000 (kPa: 6,895, bar: 68.95) - Max.
Operating Temperature
- -29° to 93° C (-20° to 200° F)
Piston Material
- Brass
- Stainless Steel
Spring Material
- 316 Stainless Steel
Switch Type
- SPST
Wetted Materials
- Stainless Steel
- Coolant or lubricant flow monitoring in portable equipment
- Space constraint applications
- High volume OEM applications
