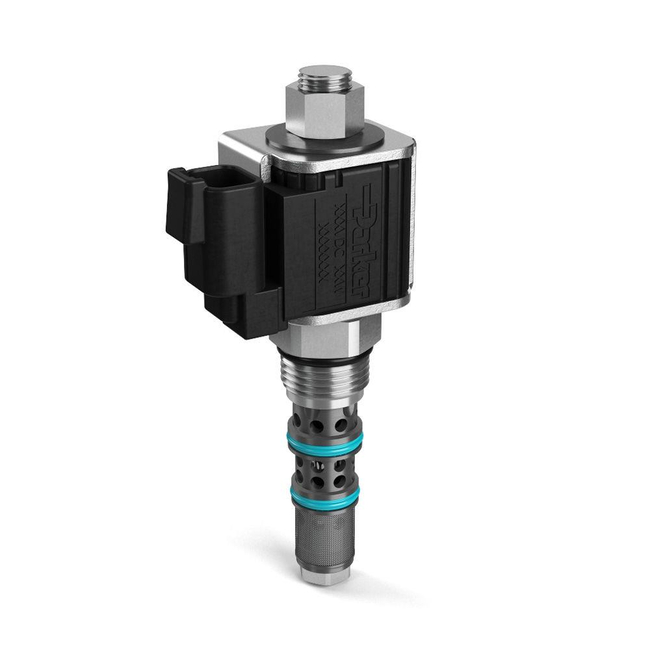

Pressure Reducing Proportional Valves
Brand: Parker HannifinParker’s family of proportional pressure reducing valves give the operator reliable performance for applications that require pressure limitation.
These valves are capable of handling flows up to 37 lpm (10 gpm) and pressures as high as 210 bar (3000 psi).
Parker’s proportional pressure reducing valves are ideal for pilot control or functions such as cylinders where there may be a risk of buckling due to over-pressurization, and can be paired with any Current Controlled Pulse Width Modulation (PWM) valve driver.
The simple and compact design enables these valves to be used on a variety of equipment within the mobile, industrial, or manufacturing markets.
Features- Low hysteresis
- One piece cartridge housing
- Non-magnetic spool and housing assembly
Specifications
Brand
Cavity Size
- 3X, C12-3L, C16-3
Coil Nut Torque (Lbs/ft)
- Finger Tight, 3, 5-7
Coil Nut Torque (Nm)
- Finger Tight, 4.1, 7-9.5
Coil Type
- 1/2” Super Coil, 5/8” Super Coil, 1/2” Super Coil Low Watt (CCS)
Filtration Ratings
- ISO 4406: 1999 Code 18/16/13
Flow Direction
- Inlet Port 1, Reducing Port 2, Tank Port 3, Inlet Port 3, Reducing Port 2, Tank Port 1
Frequency (Hz)
- 100-400, 200-600
Hysteresis
- 2 %, 3.5 %, 4 %
Installation Torque (Lbs/Ft)
- 20, 22, 37-41
Installation Torque (Nm)
- 27, 30, 50-56
Leak Rate (cc/min)
- 5 De-Energized, 200 in Regulating Zone @ 1000 psi (68 bar), 100 De-Energized, 750 in Regulating Zone @ 300 psi (21 bar), 25 De-Energized, 800 in Regulating Zone @ 300 psi (21 bar), 946 @ 3000 psi (207 bar)
Maximum Current (Amps)
- N/A, .9 at 12 Vdc, .45 at 24 Vdc
Maximum Inlet Pressure (bar)
- 210, 350
Maximum Regulating Pressure (bar)
- 17, 22, 12-17, 19-26, 31-40, 41-51, 65-79, 114-145, 14-17, 21-27, 29-38, 56-74, 13.8, 20.7, 34.5, 68.9, 138, 207, 276
Maximum Regulating Pressure (psi)
- 250, 320, 180-240, 270-375, 450-580, 600-740, 940-1140, 1650-2100, 200-240, 300-390, 420-550, 810-1080, 200, 300, 500, 1000, 2000, 3000, 4000
Maximum Tank Pressure (bar)
- 30, N/A
Maximum Tank Pressure (psi)
- 440, N/A
Operating Temperature (°C)
- -34° to +121°, -26° to +204°, -45° to +132° C
Operating Temperature (°F)
- -30° to +250° F, -15° to +400° F, -50° to +270° F
Override
- None, Infinite Control, N/A
Power Consumption
- N/A, 9 Watts @ , Max.
Rated Flow (gpm)
- 10, 15, 22
Rated Flow (Lpm)
- 1.9, 19, 30, 37.5
Rated Fluid Viscosity (CSt)
- Mineral-based or Synthetic with Lubricating Properties at Viscosities of 45-2000 SSU (6 to 420 cSt)
Response Time (msec)
- 30, 10, 40, N/A
Seal Material
- Nitrile, Fluorocarbon, D-Ring
Type / Configuration
- Reducing, Bottom Cylinder Port, Reducing, Side Cylinder Port, Reducing / Relieving
Valve Material
- All Parts Steel. All Operating Parts Hardened Steel
Wattage (W)
- 14, 19, 18, 28, 14
Weight (kg)
- 0.08, 0.13, 0.59
Weight (Lbs)
- 0.17, 0.28, 1.3
Wire Screen
- No, Yes, Standard
- Pilot control
- Applications sensitive to over-pressurization
