Fike Relay Base

Relay Base

Brand: Fike Corporation
Add Product to My Catalog

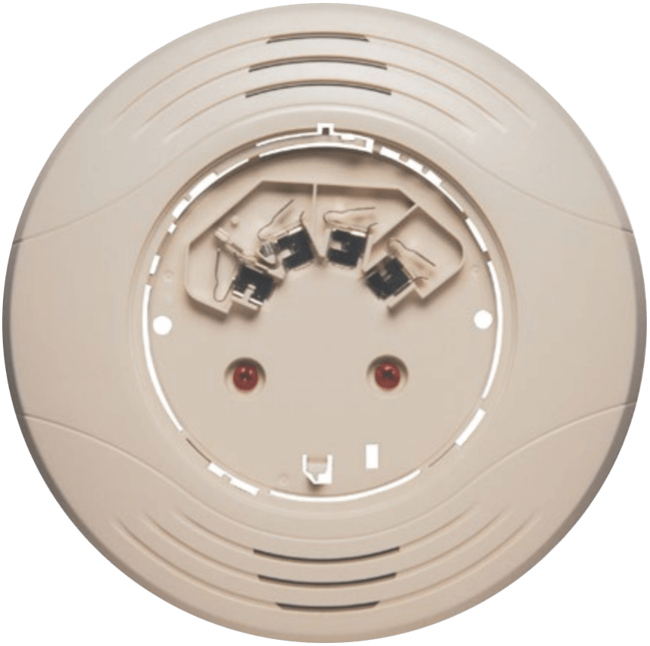

The Relay Base, P/N 63-1063, provides a local dry contact relay output to any of Fike’s intelligent plug-in detectors.

The relay contacts can be used to control auxiliary functions.

The base uses the same address and programming as the detector it is connected to.

The bases integral relay can be configured to operate upon activation of a specific device, individual or multiple zones, or multiple events based on event priority settings.

The base does NOT require an external 24 Vdc power supply for operation. Operational power is obtained from the host control panel’s signaling line circuit.

Specifications

Brand

Approvals & Certifications

  • CSFM
  • FM
  • UL - S911

Current

  • Standby Current: 170 µA

Humidity

  • 10 to 93 % Relative Humidity, Non-Condensing

Operating Voltages

  • 15-30 Vdc

Documentation

Data Sheets
