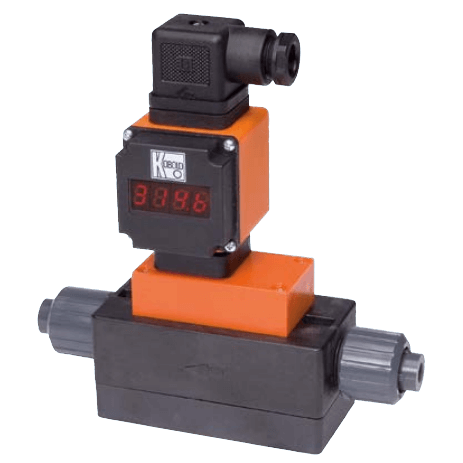

MIK Magnetic Inductive Flowmeter/Monitor
Brand: KOBOLD Instruments, Inc
The new KOBOLD flow meter Type MIK is used for measuring and monitoring smaller and medium-sized flow of conductivity liquids in pipes.
The device operates according to the electromagnetic measurement principle. According to Faraday's Law of magnetic induction a voltage is induced in a conductor moving through a magnetic field. The electrically conductive measuring agent acts as the moved conductor.
The voltage induced in the measuring agent is proportional to the flow velocity and is therefore a value for the volumetric flow. The flowing media must have a minimum conductivity.
The induced voltage is picked up by two sensing electrodes which are in contact with the measuring agent and sent to the measuring amplifier. The flow rate will be calculated based on the cross sectional area of the pipe.
The measurement is not depending on the process liquid and its material properties such as density, viscosity and temperature. The device may be equipped with a switch, frequency or analogue output.
Moreover, there is a compact electronic system to be selected from, which contains a switch and an analogue output. The device series is completed by an optionally obtainable dosing and counter electronic system.
The counter electronics system shows the current flow rate on the first line of the display and shows the partial or overall volume on the second line.
A dosing electronic system controls simple filling duties and also measures the flow rate, overall volume and filling volume. The analogue output and two relay outputs can be utilized for the further processing of signals.
Specifications
Brand
Accuracy
- ± 1 % of Full Scale
- ± 2 % of Full Scale
Ambient Temperature Range
- -10° to 60° C (14° to 140° F)
Applications
- Automobile Industry
- Cement Industry
- Chemical Processing
- Laboratories
- Machinery Industry
- Paper Industry
BSP Connection
- G 1" Male
- G 1/2" Male
- G 1-1/2" Male
- G 2" Male
- G 2-3/4" Male
- G 3/4" Male
Configuration
- (0) 4-20 mA Analog Output Adjustable
Consumption
- 120 mA
- 150 mA
- 60 mA
- 80 mA
Display
- 2 x 8-Digit LCD Display
- 3-Digit LED Display
- Duo-LED for Switch Status
Electrical Connectors
- DIN 43650
- M12 x 1
- M12 x 1 Plug 5-Pin
Electrical Contacts
- N/O or N/C Programmable
Enclosure, Body Material
- Fiberglass-Reinforced
- PPS
- PVDF
Environmental Protection
- IP65
Flow Capacity
- 0.05 to 700 LPM
Flow Rate
- 0.45 to 5.1 m/sec
Function
- Correction Amount
- Fine Dosing
- Flow Monitor
- Flow Switch
- Language
- Minimum/Max.imum
- Monitoring for Part
- Reset
- Start
- Stop
- Total Quantity
Load Impedance
- 500 ohms
Maximum System Pressure
- psi: 145 (bar: 10, kPa: 1,000)
Media
- Liquids & Gases
- Water
Mounting Position
- Any Orientation
Output
- 0-20 mA
- 1 A at 30 Vdc, Max.
- 2 A at 30 Vac/Vdc
- 24 Vdc, 1 A
- 4-20 mA, 3-Wire
- 50-1000 Hz
- 60 VA at 30 Vac/Vdc
- Dual Relay - Counter Electronics
- Open Collector
Output Format
- 1(2) PNP or NPN Semiconductor
- Relay Output
Output Function
- Normally Closed
- Normally Open
Process Temperature
- -20° to 80° C (-4° to 176° F)
Response Time
- 1 second
Seat / Seal Material
- FFKM - Wetted Materials
- FPM - Wetted Materials
- NBR - Wetted Materials
Size
- Inside Diameter: 5 to 54 mm
Supply Voltage
- 24 Vdc ± 20 %
Switch Type
- SPDT
Wetted Materials
- 316 Stainless Steel
- Hastelloy C-4 - Electrodes
- PVC-Glue
