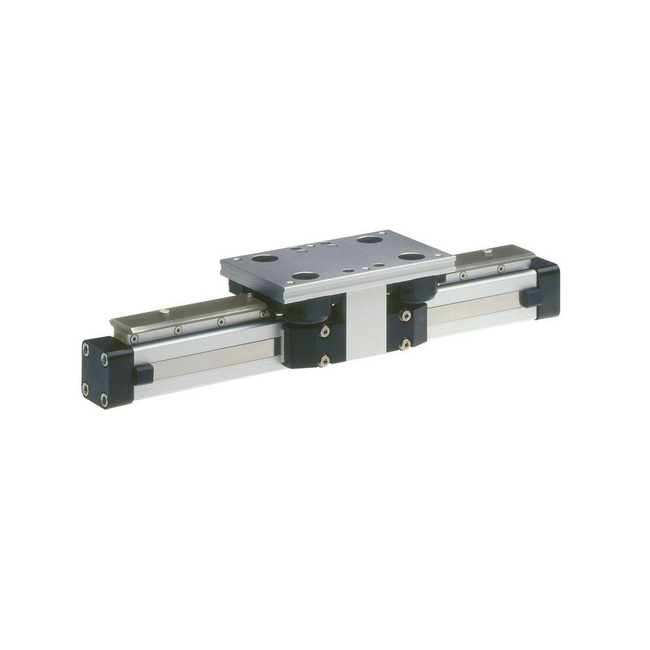

OSPE50-SB Screw Driven, POWERSLIDE Roller Guide, Rodless Electric Linear Actuator

OSPE50-SB Screw Driven, POWERSLIDE Roller Guide, Rodless Electric Linear Actuator

Brand: Parker Hannifin
Add Product to My Catalog

With multiple guide, carriage and mounting options, and an IP54 rating, the OSPE-SB 50 ball screw driven actuator is designed for medium precision, high duty cycle application. Suitable for payloads up to 4000 N.

The field-proven POWERSLIDE roller guide option OSPE50-SB screw driven electric linear actuator is designed to offer medium precision positioning at a 100% duty cycle, all packaged in a compact, versatile point to point positioner for transfer handling operations within industrial, manufacturing and assembly environments.
Features
  • Ball screw driven actuator for dynamic and precise positioning with medium travel
  • High acceleration and efficiency for demanding processes
  • Roller bearing for smooth travel in high demanding and harsh environments
  • Hardened steel guide rail with selective load capability
  • Integrated seal strip offering IP54 protection
  • Pre-configured motor and gearhead mounting kits for simplified installation
  • Contactless sensing for positional feedback

Specifications

Brand

Additional Protection Option

  • Steel Strip Cover

Approvals & Certifications

  • Cleanroom Certified (Custom Option)

Bearing Type

  • Powerslide Roller Guide

Corrosion Resistant Option

  • No

Drive Type

  • Ballscrew

Idler Unit Option

  • No

Linear Feedback Device

  • No

Maximum Acceleration (Inch/S2)

  • 393

Maximum Acceleration (m/S2)

  • 10

Maximum Payload FZ (N)

  • 3000 - 4000

Maximum Speed (inch/sec)

  • 49.2

Maximum Speed (m/sec)

  • 1.25

Maximum Stroke (inch)

  • 126

Maximum Stroke (mm)

  • 3200

Maximum Thrust FX (Lbs)

  • 326

Maximum Thrust FX (N)

  • 1450

Position Repeatability (± Inch)

  • 0.002

Position Repeatability (± mm)

  • 0.05

Profile Width (mm)

  • 87

Series

  • OSP-E

Typical Payload FZ (N)

  • 400 - 4000

  • Pick and Place Applications
  • Packaging, Labeling and Wrapping Systems
  • Pusher, Picker and Gripper Applications
  • Positioning
  • Feeding
  • Cutting
  • Markets:
    • Factory Automation
    • Miscellaneous Industrial
    • Miscellaneous Manufacturing
    • Packaging Machinery
    • Printing and Marking Equipment
    • Vehicle Assembly Facilities

Documentation

Instructions

Literature and Reference Materials
