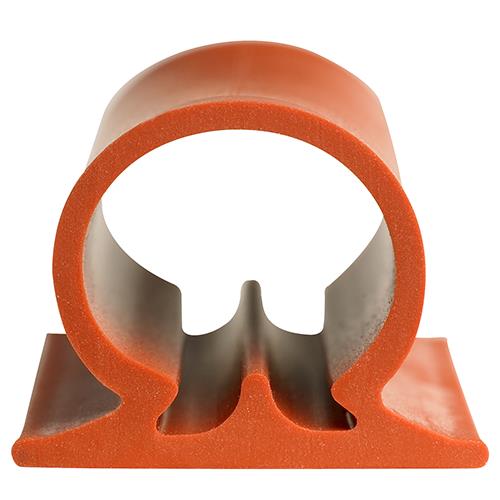

Omega Profile Extruded Seals
Brand: Parker HannifinOmega profile hollow extrusions offer low closure force sealing and are available in two options: with pressure sensitive adhesive (PSA) backing for easy attachment, or mechanical fastening for more robust retention.
Both options have the flexibility to fill large clearance gaps often associated with thin metal or plastic enclosures.
Omega profile seals are an economical alternative to molded products and can be extruded and made into extremely large O-rings that are ordinarily too expensive when molded.
Dimensions can also be easily customized at no tooling cost, giving engineers more design flexibility.
Features- Clearance gaps are present after assembly
- The gland cross section is more deep than narrow
- Radial interference (squeeze) is needed to assist the end product assembly process
- Low closure force is needed
- Seal cross section surface contact area maximization without overfill
Specifications
Brand
Applications
- Low Closure
Approvals & Certifications
- ZZR-765
Color
- Rust, Black, Custom
Industry Standards
- ASTM D2000 M4 GE, ASTM D2000 M4AA, M3BA, M4CA, M3DA
Maximum Operating Temperature (°F)
- 400°, 250°, 210° F, Custom
Minimum Operating Temperature (°F)
- -65°, -70°, -30° F, Custom
Nominal Hardness
- 45, 70, Custom
Nominal Hardness Range
- < 70, 70, Custom
Profile
- Hollow
Shape
- Omega
Thermal Application (°F)
- Low & High Temperature (250° F), Low Temperature (< -30° F), Custom
