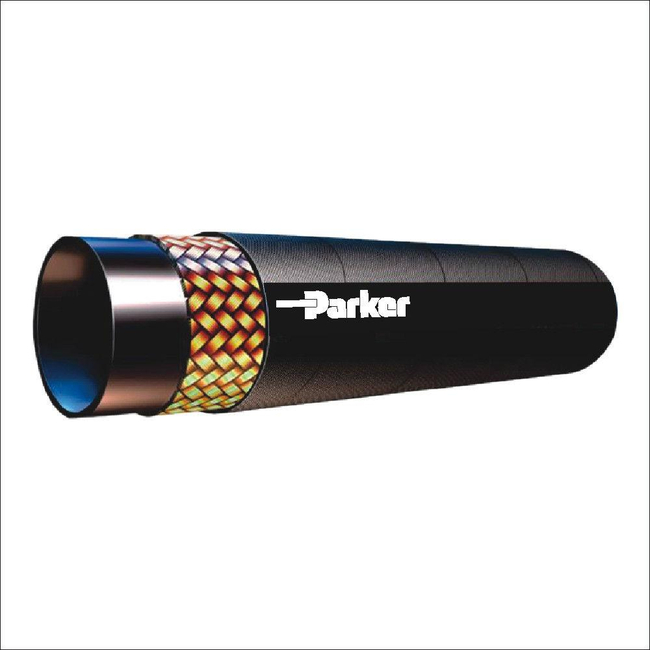

LPG Gas Hose Meets BS 4089 : 1989 TYPE 1
Brand: Parker HannifinLPG hose meets BS 4089: 1989 TYPE 1 for handling LPG gas.
The industry standard hose manufactured to strict international quality specifications in order to provide consistency of performance.
Designed with a universal one wire construction to meet global industry standards & also offers a long service life.
Features- Constant pressure hose & one wire hose with ozone resistant cover.
- Light weight & long lasting, easy to handle.
Specifications
Brand
Applications
- Fuel Transfer
Hose I.D. (inch)
- 3/8 - 2
Hose I.D. (mm)
- 9.5 - 50.8
Hose I.D. (Size)
- -6 to -32
Hose O.D. (inch)
- 0.77 - 2.63
Hose O.D. (mm)
- 19.6 - 66.7
Maximum Working Pressure (bar)
- 25
Maximum Working Pressure (Mpa)
- 2.5
Maximum Working Pressure (psi)
- 362
Maximum Working Temperature (°C)
- 45° C
Maximum Working Temperature (°F)
- 113° F
Media
- Fuels
Minimum Bend Radius (inch)
- 4.7 - 23.6
Minimum Bend Radius (mm)
- 120 - 600 120 to 600
Minimum Working Temperature (°C)
- -20° C
Minimum Working Temperature (°F)
- -4° F
Temperature Range (°C)
- -20° to + 45° C
Weight (kg/m)
- 0.42 to 2.1
Weight (Lbs/Ft)
- 0.28 - 1.42
- LPG transfer & handling applications.
