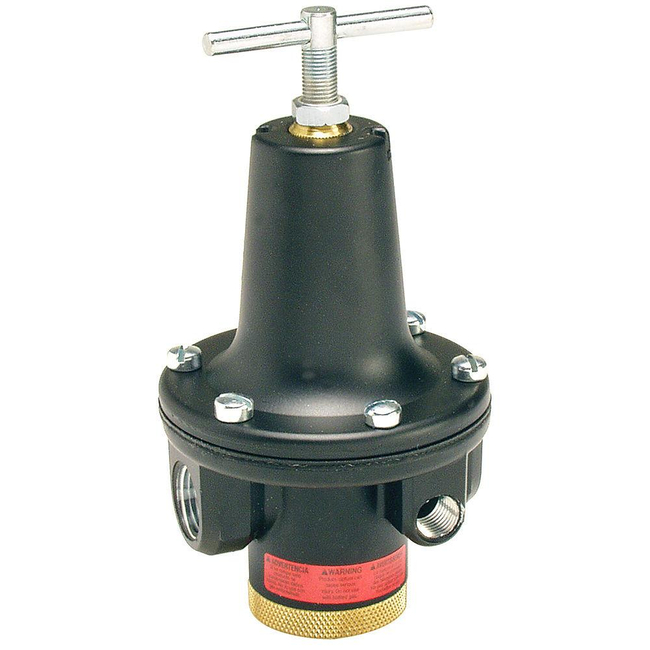

High Flow Pressure Regulator - R119 Series (Standard)
Brand: Parker HannifinR119 non-modular high flow regulators provide a convenient and low cost method to reduce a supplied air pressure to desired outlet pressure.
R119 provides quick and accurate pressure regulation for the majority of industrial applications.
Features- High flow performance featuring rugged design for the most demanding applications
- Ideal for those installations calling for constant pressure with wide variation in flow
- Diaphragm operated design with balanced poppet design for quick and accurate regulation
- Secondary aspiration plus balanced poppet provides quick response and accurate pressure regulation
- Heavy duty tee handle adjustment
- Reverse flow version available
- Panel mount version available
- High flow:
- 1/4" – 100 SCFM§
- 3/8" – 110 SCFM§
- 1/2" – 150 SCFM§
Specifications
Brand
Body Material
- Zinc
Flow Rate (dm3/sec)
- 142 / 189 / 236
Flow Rate (scfm)
- 300 / 400 / 500
Gauge Port
- 1/4"
Maximum Inlet Pressure (bar)
- 20
Maximum Inlet Pressure (psig)
- 300
Operating Temperature (°C)
- +4° to +52° C
Operating Temperature (°F)
- +40° to +125° F
Port Size
- 3/4", 1, 1-1/4", 1-1/2"
Port Type
- NPT, BSPP
Pressure Control Range (bar)
- bar: 0 to 8, 0 to 17
Pressure Control Range (psig)
- psig: 2 to 125, 1 to 250
Product Type
- High Flow Regulator
Seal Material
- Nitrile
Weight (kg)
- 2.81 / 3.27
Weight (Lbs)
- 6.2 / 7.2
