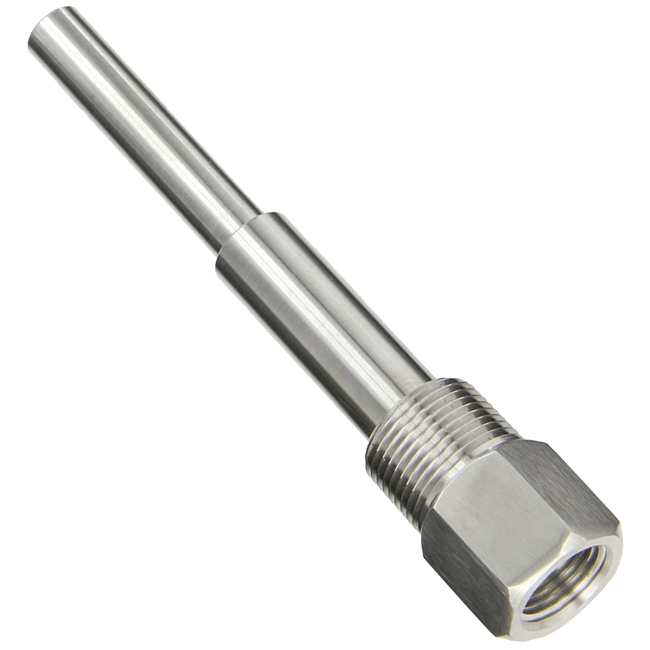

Model 260TWE General Use Standard Threaded Thermowell with Lagging Extension
Brand: Tel-Tru Manufacturing Co.Application: Standard length, 1/4" stem diameter, bimetal thermometers; #20 gauge thermocouple elements; unarmored liquid-in-glass test thermometers; other temperature sensing elements having 0.252" maximum diameter. Standard thermowell is stepped to 1/2" OD except 2-1/2" insertion.
Features- Machined from solid bar stock for standard or high velocity requirements in a large selection of materials and coatings
- Designed and manufactured to assure perfect alignment with the thermometer stem
Specifications
Bore Size
- 0.260” (6.6 mm)
Diameter
- Shank Diameter: 3/4” (19 mm)
- Shank Diameter: 5/8” (15.87 mm)
- Shank Diameter: 7/8” (22 mm)
- Stem Diameter: 1/4” (6.35 mm)
Insertion 'U' Length
- 10-1/2” (26.7 cm)
- 13-1/2” (34.3 cm)
- 19-1/2” (49.5 cm)
- 2-1/2” (6.4 cm)
- 4-1/2” (11.4 cm)
- 7-1/2” (19.1 cm)
Materials of Construction
- 304 Stainless Steel
- 316 Stainless Steel
- Brass (ASTM B-16)
- Carbon Steel (C-1018)
- Monel
Media
- Liquids
NPT Connection
- 1” NPT Male
- 1/2” NPT Male
- 3/4” NPT Male
Stem Length
- 6” to 24” (15 to 61 cm)
