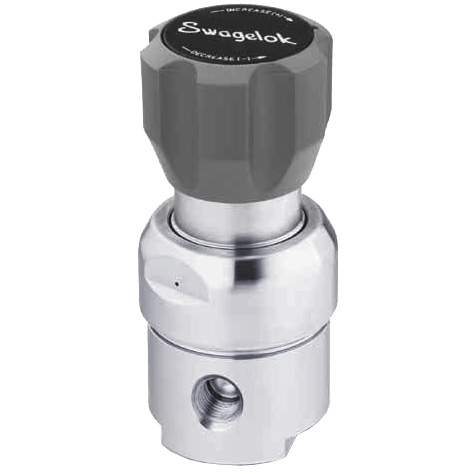

KBP Series General-Purpose Regulator
Brand: Swagelok CompanyThe KBP series is a high-sensitivity, general-purpose regulator designed to control back-pressure levels in analytical or process systems upstream of the regulator.
The convoluted diaphragm provides excellent sensitivity and set-point repeatability. The metal-to-metal diaphragm seal minimizes the potential for leakage.
Features- Convoluted, nonperforated diaphragm
- Metal-to-metal diaphragm seal
- Low internal volume
- Two-piece cap design provides linear load on the seal
- Pressure Control Range: psig: 0 to 10 (bar: 0 to 0.68, kPa: 0 to 68.9 ) through psig: 0 to 500 (bar: 0 to 34.4, kPa: 0 to 3,447)
- Maximum Operating Temperature:
- 80°C (176°F) with PCTFE
- 200°C (392°F) with PEEK
- Ports:1/4" Female NPT, 1/4" tube butt weld, 1/4" VCR inlet
- Actuator: Knob, Antitamper nut
- Materials of Construction:
- Enclosure: 316 SS, Brass
- Seat: Fluorocarbon, Kalrez
- Seal: PCTFE, PEEK
- Stem: 316 SS
- Diaphragm: Alloy X-750
Specifications
Brand
Actuator Type
- 316 Stainless Steel Anti-Tamper Nut
- Knob
Diaphragm Material
- Alloy X-750 (Inconel)
Enclosure, Body Material
- 316 Stainless Steel
- Brass CW721R
Flow Rate
- 0.20 Cv
Media
- Gas
Mounting
- None
- Panel
NPT Connection
- 1/4” NPT Female
Pressure Range
- bar: 0 to 34.4
- kPa: 0 to 3,447
- psig: 0 to 500
Process Temperature
- 80° to 200° C (176° to 392° F)
Seat / Seal Material
- Fluorocarbon (FKM)
- PTFE
Special Cleaning & Packaging
- ASTM G93 Level E-Cleaned
- SC-11
Stem Material
- 316 Stainless Steel
Supply Pressure - Maximum
- bar: 0 to 34.4
- kPa: 0 to 3,447
- psig: 0 to 500
Tube Connection
- 1/4” x 0.035” Tube Butt Weld
VCR / VCO Connection
- 1/4” Gland & Rotatable Female/Male VCR
Vent
- Captured & No Self Vent
- Non-Venting
