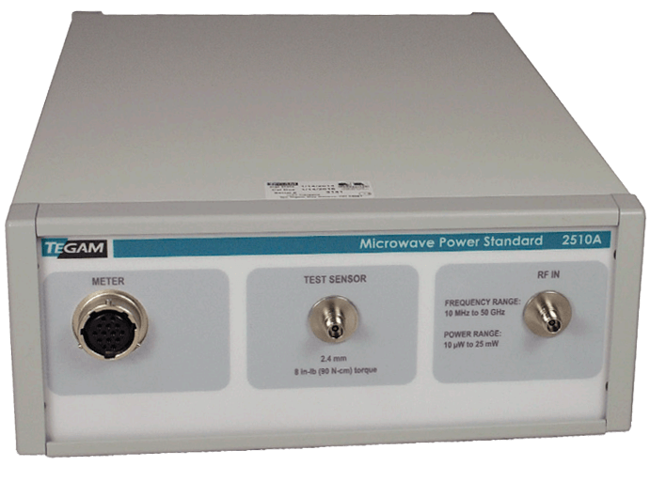

2510A Feedthrough Microwave Calibration Standard

Brand: Tegam

TEGAM Temperature Stabilized Coaxial RF Power Transfer Standards enable the precise measurement of microwave power in the 10 MHz to 50 GHz frequency range.

These standards are highly accurate and stable with time and temperature.

They are ideal for use as standards for the transfer of calibration factors to other RF standards and power sensors.

The Model 2510A is a feedthrough Thermistor Standard used for the calibration of bolometer, thermo-couple, and diode terminating power sensors.
Features
  • Calibrate RF Power Sensors from 10 MHz to 50 GHz
  • PMX and SYSIIB Compatible
  • 0.01 to 10 mW Typical Usable Range (-20 to 10 dBm)
  • Primary (1510A) and Working (2510A) Transfer Standard Configurations
  • Rack Mount Option Available
  • A2LA Accredited ISO/IEC 17025 Compliant Calibration

Specifications

Brand

Accuracy

  • ± 1 % from 0.01 to 0.04 GHz - Calibration Factor Accuracy
  • ± 1.25 % from 0.05 to 4 GHz - Calibration Factor Accuracy
  • ± 1.5 % from 4.20 to 12 GHz - Calibration Factor Accuracy
  • ± 2.2 % from 12.2 to 17.5 GHz - Calibration Factor Accuracy
  • ± 2.5 % from 17.75 to 26.5 GHz - Calibration Factor Accuracy
  • ± 3 % from 27 to 44 GHz - Calibration Factor Accuracy
  • ± 4 % from 45 to 50 GHz - Calibration Factor Accuracy

Approvals & Certifications

  • CE

Approvals & Certifications

  • A2LA

Calibration

  • < 0.5 % Per Year - Calibration Factor Drift

Electrical Connectors

  • APC 2.4 mm Female

Frequency

  • 10 MHz to 50 GHz

Input Impedance

  • 50 ohms - Nominal RF Impedance

Linearization

  • < 0.1 % from 1 to 10 mW - Power Linearity

Mounting

  • Rack Mount

NACE & NIST

  • NIST - Traceable Calibration Data

Operating Temperature

  • 15° to 30° C (59° to 86° F)

Power

  • 0.01 to 10 mW (-20 to 10 dBm)
  • 25 mW (14 dBm) - Max.
  • 40 mW Nominal - Thermistor DC Bias Power

Resistance

  • 200 ohms - Thermistor Resistance at Bias

Sensor, Probe Type

  • Thermistor

Storage Temperature

  • -55° to 75° C (-67° to 167° F)
