Model WB-WSS Welding Pressure Gauge.png

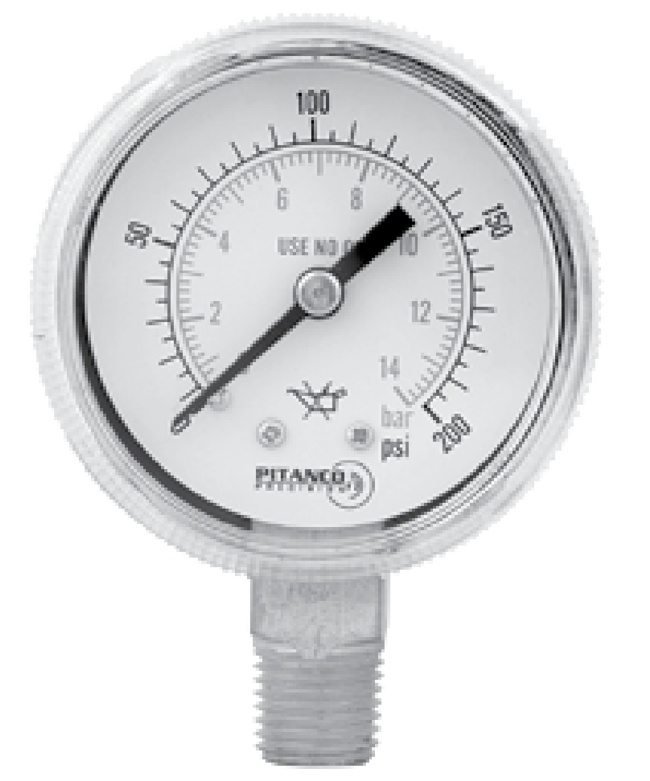

Model WB/WSS Welding Pressure Gauge

Brand: Pitanco Precision
Add Product to My Catalog

For pressure reading on oxygen and acetylene bottles regulator.

View_Details

Specifications

Brand

Case

  • Polished Brass for WB
  • 316 Stainless Steel for WSS

Dial

  • White Aluminum with psi Graduations in Black and Bar in Blue with Pictogram ”Use No Oil”

Ring

  • Screw-On Plexiglass

Pointer

  • Steel Painted Black

Connection

  • 1/4” NPTM Bottom, Brass for WB
  • 1/4” NPTM 316 Stainless Steel for WSS

Maximum Process & Ambient Temperature

  • -40° to 150° F / -40° to 65° C

Wetted Parts

  • Brass for WB
  • 316 Stainless Steel for WSS

Bourdon Tube

  • Phosphoer Bronze for WB
  • 316 Stainless Steel for WSS

Operating Pressure

  • Maximum of 75 % of Full Scale Value

Overpressure Limit

  • 25 % Over Full Scale Value

Accuracy

  • ASME B40.100 (B40.1), Grade B ± 2 %
