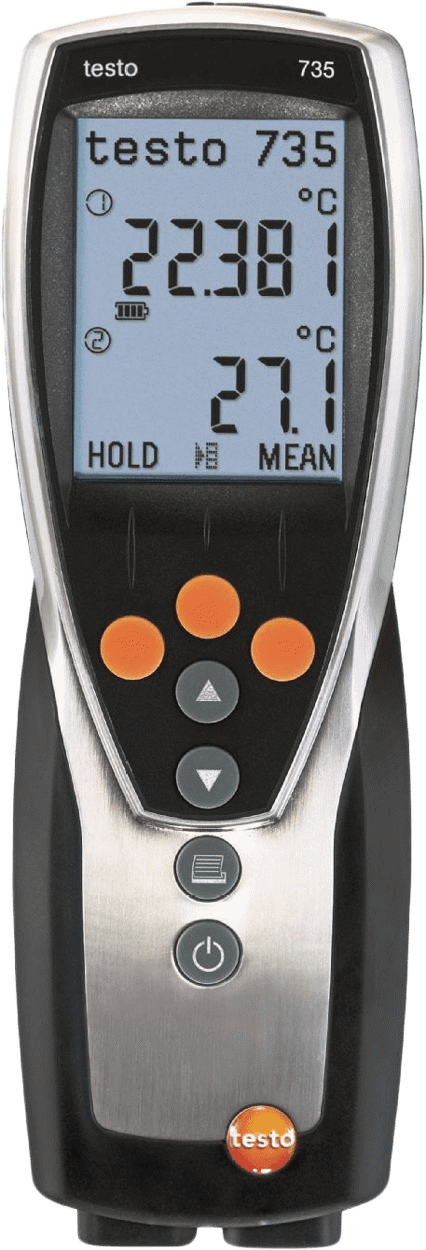

Testo 735-2 - Multichannel Thermometer
Brand: TestoThe testo 735-2 digital multichannel thermometer is used in a variety of different fields.
It can measure the surface, air, and core temperature of a wide range of media, with an accuracy up to 0.09°F (using high-precision Pt immersion / penetration sensors).
Can be wirelessly connected to as many as 3 external temperature sensors, whose readings are then transmitted to the display, so what you get is not a 3, but a 6-channel meter!
Wide Selection of Sensors – Precise Measurements on up to 6 Channels
The testo 735-2 multichannel thermometer has a sensor connecting point for a highly-accurate Pt100 sensor, and two connecting points for quick type K, T, J, and S thermoelement sensors.
Six sensors, 3 of them wireless temperature sensors, can be connected to the meter.
A wide selection of immersion / penetration / surface sensors is available to help you carry out quick and accurate temperature measurements on a variety of different surfaces and media.
The high precision Pt100 immersion / penetration sensor (optional) has a system accuracy of 0.09°F, and a resolution of 0.0018°F. This makes the testo 735-2 ideal for use as a working standard.
For Measuring, Saving, and Analyzing Temperature Measurements with Multiple Profiles
The testo 735-2 allows you to carry out quick and precise temperature measurements, save up to 10,000 readings, and create as many as 99 measuring sites and multiple user profiles.
You can also save individual protocols or measurement series for each measuring site, and select a memory cycle from 0.5 seconds to 24 hours.
The software (included) allows you to save and analyze measuring data as a table or graphic. Optional wireless turbo printer for on-the-spot print outs.
Highly Precise – Highly Practical
The testo 735-2 provides you with delta T and min/max/avg values. The readings are presented on a backlit display (ideal in poorly lit conditions).
An acoustic alarm is triggered when thresholds are breached. IP65 rated and EN 13485 certified / HACCP compliant / HACCP International certified.
Calibrating static temperature sensors, temperature measurements in the cosmetics and food industries, laboratories, the cooling and refrigeration sector.
The testo 735-2 multichannel thermometer can master virtually any application, thanks to wireless data transfer, a super-size memory, and a wide range of optional sensors.
PLEASE NOTE: sensor required (not in scope of supply).
Features- Up to 3 connectable and 3 wireless temperature sensors
- Super-size memory for up to 10,000 readings; PC software and USB cable included
- High-precision optional sensor for accuracy of up to 0.09°F
- IP65 rated (dust/water ingress) HACCP / EN 13485 compliant
Specifications
Brand
Delivery Scope
- Testo 735-2 Digital Multichannel Thermometer (3-Channel), PC Software, USB Data Cable, Calibration Protocol, and Batteries
Temperature - Pt100
- Measuring Range: -328° F to 1472.0° F / -200° C to +800° C
- Accuracy: ± 0.4° F (-148.0° F to 391.8° F) / ± 0.2° C (-100° C to +199.9° C) | ± 0.2 % of mv (Remaining Range)
- Resolution: 0.1° F / 0.1° C
Temperature - Type K TC
- Measuring Range: -328.0° F to 2498° F / -200° C to +1370° C
- Resolution: 0.1° F / 0.1° C
- Accuracy: ± 0.5° F (-76.0° F to 140.0° F) / ± 0.3° C (-60° C to +60° C) | ± (0.4° F + 0.3 % of mv) (Remaining Range) / ± (0.2° C + 0.3 % of mv) (Remaining Range)
Temperature - TC Type T (Cu-CuNi)
- Measuring Range: -328.0° F to 752.0° F / -200° C to +400° C
- Accuracy: ± 0.5° F (-76.0° F to 140.0° F) / ± 0.3° C (-60° C to +60° C) | ± (0.4° F + 0.3 % of mv) (Remaining Range) / ± (0.2° C + 0.3 % of mv) (Remaining Range)
- Resolution: 0.1° F / 0.1° C
Temperature - Type J TC
- Measuring Range: -328.0° F to 1832.0° F / -200° C to +1000° C
- Accuracy: ± 0.5° F (-76.0° F to 140.0° F) / ± 0.3° C (-60° C to +60° C) | ± (0.4° F + 0.3 % of mv) (Remaining Range) / ± (0.2° C + 0.3 % of mv) (Remaining Range)
- Resolution: 0.1° F / 0.1° C
Temperature - TC Type S (Pt10Rh-Pt)
- Measuring Range: 32.0° F to 3200.0° F / 0° C to +1760° C
- Accuracy: ± 1.8° F (32.0° F to 3200.0° F) / ± 1° C (0° C to +1760° C)
- Resolution: 1.0° F / 1° C
Dimensions
- 9 x 3 x 2 in. / 220 x 74 x 46 mm
Operating Temperature
- -4.0° F to 122.0° F / -20° C to +50° C
Housing
- ABS / TPE / Metal
Protection Class
- IP65
Standards
- EN 13485
Battery Type
- Alkaline, type AA
Storage Temperature
- -22.0° F to 158.0° F / -30° C to +70° C
Weight
- 15 oz. / 428 g
- Measurement of the Heating of Electronic Components
- Calibration of Stationary Temperature Probes
- Measuring Temperature in a Chemical Laboratory
- Temperature Measurement in the Cosmetics Industry
- Temperature Distribution in Refrigerators and Conditioning Cabinets
- Calibration of Stationary Temperature Probes
- Measurement of the Heating of Electronic Components
- Temperature Distribution in Refrigerators and Conditioning Cabinets
- Measuring Temperature in a Chemical Laboratory
- Temperature Measurement in the Cosmetics Industry
