SRT1200 In-Line Type Thermal Flowmeter

Brand: Tokyo Keiso Co, Ltd

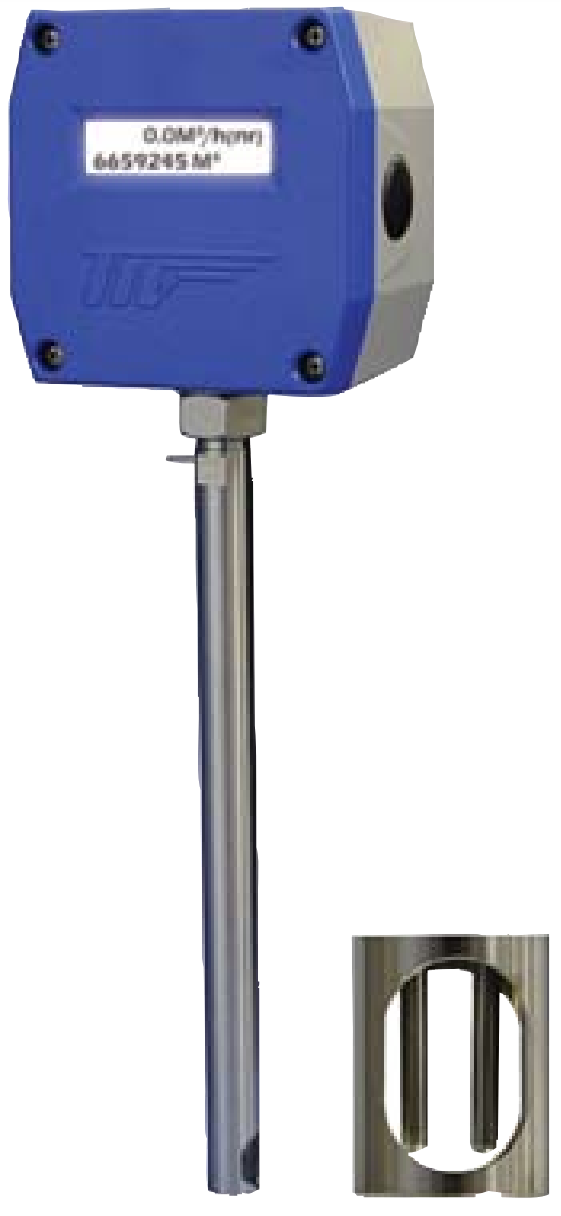

Based on the long experienced know-how on the TOKYO KEISO's thermal flowmeters, SRT1000 series has enhanced its performance such as a reading accuracy, a reliable sealing by metal and a digital output. In measuring various gases it covers wider sizes ranging from 10 mm to even 1,500 mm as standard. Either the integral type with the sensor integrated with an indicator and converter or the separate type with an indicator and converter remotely mounted is available for the application.

Various outputs are available for your convenience such as pulse, high and low alarms, and digital output via RS485, as well as 4 to 20 mA DC, 0 to 5.0 to 10 Vdc Analog outputs all in standard features.

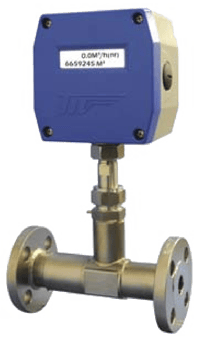

The SRT1000 covers much wider measuring range than the current thermal flowmeters. The in-line type SRT1200 with a sensor unit is directly connected to the pipes from 40 to 150 mm using process flanges like a spool piece. The welding of nozzle or tube fitting is not required.

Specifications

Approvals & Certifications

  • CE
  • RoHS

Environmental Protection

  • IP65

Flange Size - 1-1/2” (DN 40)

  • 1-1/2” (DN 40) - 150# ANSI/JPI
  • 1-1/2” (DN 40) - 300# ANSI/JPI
  • 1-1/2” (DN 40) - JIS 10K
  • 1-1/2” (DN 40) - JIS 20K

Flange Size - 2-1/2” (DN 65)

  • 2-1/2” (DN 65) - 150# ANSI/JPI
  • 2-1/2” (DN 65) - 300# ANSI/JPI
  • 2-1/2” (DN 65) - JIS 10K
  • 2-1/2” (DN 65) - JIS 20K

Flange Size - 2” (DN 50)

  • 2” (DN 50) - 150# ANSI/JPI
  • 2” (DN 50) - 300# ANSI/JPI
  • 2” (DN 50) - JIS 10K
  • 2” (DN 50) - JIS 20K

Flange Size - 3” (DN 80)

  • 3” (DN 80) - 150# ANSI/JPI
  • 3” (DN 80) - 300# ANSI/JPI
  • 3” (DN 80) - JIS 10K
  • 3” (DN 80) - JIS 20K

Flange Size - 4” (DN 100)

  • 4” (DN 100) - 150# ANSI/JPI
  • 4” (DN 100) - 300# ANSI/JPI
  • 4” (DN 100) - JIS 10K
  • 4” (DN 100) - JIS 20K

Flange Size - 5” (DN 125)

  • 5” (DN 125) - 150# ANSI/JPI
  • 5” (DN 125) - 300# ANSI/JPI
  • 5” (DN 125) - JIS 10K
  • 5” (DN 125) - JIS 20K

Flange Size - 6” (DN 150)

  • 6” (DN 150) - 150# ANSI/JPI
  • 6” (DN 150) - 300# ANSI/JPI
  • 6” (DN 150) - JIS 10K
  • 6” (DN 150) - JIS 20K

Flange Type

  • Flat Face (FF)
  • Raised Face (RF)

Materials of Construction

  • Material Contacting Gases: 316 Stainless Steel Standard
  • Material Contacting Gases: 316L Stainless Steel

Power Supply

  • 20.4-27.6 Vdc, 800 mA or more
