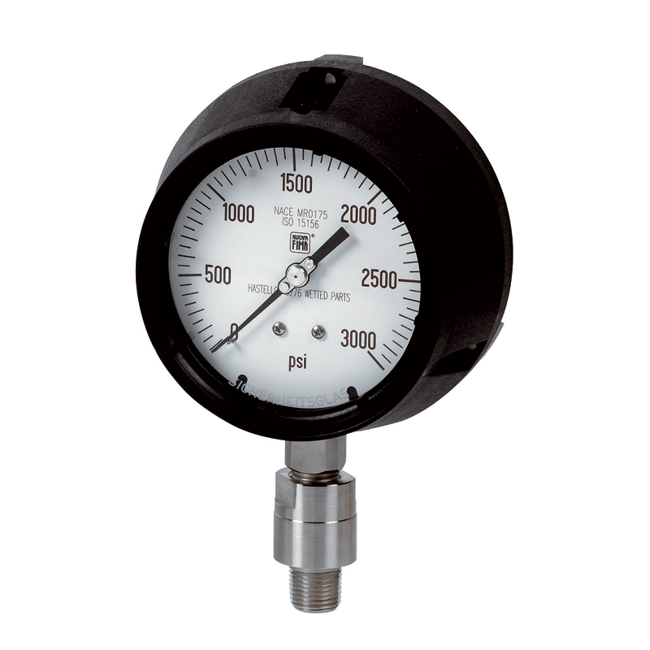

MGS61 DN125 Bourdon Tube Solid Front Pressure Gauge

Brand: Nuova Fima

In case of leaks or break of the elastic element the operator is protected by a stainless steel safety cell solid front and by the blow-out back.

They are usually used in the petrochemical industry; they are built to resist to the most severe conditions created by H2S and by the environment and for those fluids.

The TIG welding between the safety cell and the process socket strengthens the instrument.

The advantages of filling the case of the instrument with a dampening fluid are: reduced pointer fluctuation, reduced wear of rotating parts of the movement when pulsing vibrations and pulsations occur.

Moreover condensation and corrosive atmospheres which could damage the internal parts.

Specifications

Brand

Accuracy

  • Fillable Model: Grade 1A as Per ASME B40.1 (± 1,0 % of Span)

Ambient Temperature Range

  • Fillable Model: -13° to +149° F (-25° to +65° C)
  • Filled Model: +32° to +149° F (0° to +65° C) with Glycerine Filling
  • Filled Model: -40° to +149° F (-40° to +65° C) with Fluorinated Fluid Filling
  • Filled Model: -40° to +149° F (-40° to +65° C) with Silicon Oil Filling

Bourdon Tube

  • Fillable Model: AISI 316L Stainless Steel

Case & Blow Out Disk

  • Fillable Model: Strengthened Polyamide with Fiber Glass, UV Rays Stabilized

Compensating Device

  • Filled Model: Gum

Design

  • Fillable Model: ASME B40.1

Dial

  • Fillable Model: Aluminum, White with Black Markings

Diaphragm Seal Filling Fluid

  • Fillable Model: Silicone Oil

IP Protection Rating

  • Fillable Model: IP65 as Per EN 60529 / IEC 529
  • Filled Model: IP67 as Per EN 60529 / IEC 529

Leak Test

  • Fillable Model: Helium Test Leak Search (Max. 1 x 10-6 Mbar x L x S-1)

Movement

  • Fillable Model: Stainless Steel with Internal Limit Stops for Min. And, Max.

Over Pressure Limit

  • Fillable Model: 30 % of Full Scale Value, Max.

Pointer

  • Fillable Model: Adjustable, Aluminum, Black

Pressure Gauges Damping Liquid

  • Filled Model: Glycerine 98 %, Silicon Oil or Fluorinated Fluid

Process Fluid Temperature

  • Fillable Model: -40° to +212° F (-40° to +100° C)
  • Filled Model: Max.

Ranges

  • Fillable Model: from -30 to 0 Inches Hg to 0 to 6000 psi (From -1 to 0 to 0 to 400 bar or Equivalent Units)

Ring

  • Fillable Model: Strengthened Polypropylene, Fiber Glass

Safety Cell

  • Fillable Model: Stainless Steel

Special Overpresure (Upon Request)

  • Fillable Model: 1000 psi (60 bar) for Pressure > 15 psi (1 bar) to ≤ 150 psi (10 bar)
  • Fillable Model: 3500 psi (250 bar) for Pressure > 150 psi (10 bar) to ≤ 1500 psi (100 bar)
  • Fillable Model: 6500 psi (450 bar) for Pressure > 1500 psi (10 bar) to ≤ 6000 psi (400 bar).

Wetted Parts

  • Fillable Model: Hastelloy C-276

Window Material

  • Fillable Model: Tempered Glass

Working Pressure

  • Fillable Model: 100 % of Full Scale Value for Static Pressure
  • Fillable Model: 90 % of Full Scale Value for Pulsating Pressure
