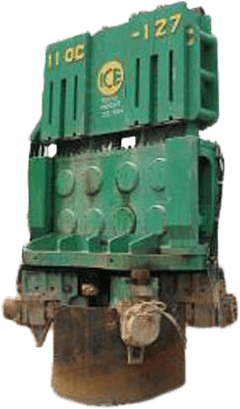

ICE 110C Vibratory Hammer
Brand: PACO Ventures, LLCICE 110C has the highest driving force in its class (409 tons, 3,640 kN) in its class.
Patented design combines high eccentric moment and suspended weight with caisson clamp under 30,000 lbs (13,600 kg).
Features- Patented Dual-pull™ suppressor provides maximum vibration isolation during driving and light extraction combined with high pull capability for tough extraction jobs.
- Optional bias weights up to 5500 lbs (2495 kg) to increase pile penetration rates in difficult soils.
- Full range of clamps available for sheet piling, H-Beams, pipe & caissons including quad caisson clamps.
- Maximum efficiency and reliability are provided by our open-loop hydraulic system and application proven piston pumps and motors.
- Remote-control pendant for vibrator and clamp with emergency stop. Engine speed control for fuel efficiency.
- Adaptable for underwater operation.
- Environmentally friendly Chevron Clarity® non-toxic, biodegradable hydraulic oil.
- Designed and manufactured in the USA by ICE®, world leader in cost-effective foundation equipment since 1974.
Specifications
Brand
Eccentric Moment
- 1,100 in-lb (126 kgm)
Maximum Frequency
- 1,600 VPM
Driving Force
- 409 tons (2,270 kN)
Amplitude
- 2 inch (40 mm)
Maximum Line Pull for Extracting
- 140 tons (1,250 kN)
Length
- 98 in (2,470 mm)
Width
- 23 inches (585 mm)
Height with Sheet Clamping
- 150 in (3,800 mm)
