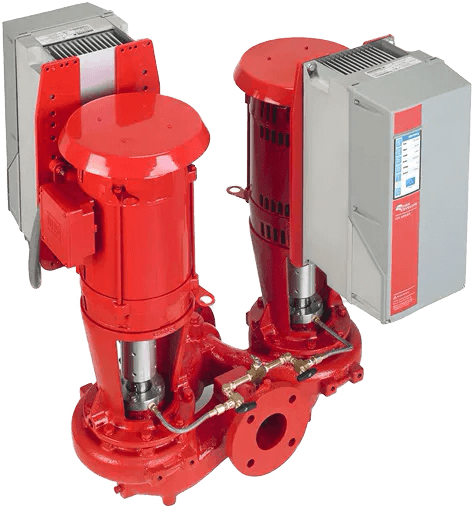

Design Envelope 4312 Twin Pumps
Brand: Armstrong Fluid Technology
Pipe-mounted 2-pump unit with integrated intelligent controls for space-saving installation, superior energy performance, and full redundancy during operation. Saves up to 75% in energy over comparable traditional constant speed or variable frequency operated pump installations.
Features- Vertical In-line design eliminates the need for inertia bases, housekeeping pads, and flex connectors and reduces piping requirement
- 2-pump casing for reduced footprint
- Integrated intelligent controls eliminate procurement, installation (incl. wiring), calibration and upkeep of differential pressure sensors
- Superior energy performance qualifies for significant cost recovery under utility and government rebate programs
- Integrated intelligent controls – combined with perfect component match-up and tuning – for up to 75% in energy savings over traditional constant speed and variable frequency operated pump installations
- Shorter pipe runs for reduced system friction
- Vertical In-Line configuration allows less disruptive pump service (casing stays in place)
- 75% decrease in energy consumption reduces operational greenhouse gas emissions at equal ratio
- Elimination of inertia bases, housekeeping pads, flex connectors and superfluous piping avoids all procurement related environmental impacts (material, energy, carbon)
- Equipment downsizing mitigates environmental impacts associated with procuring unnecessarily large equipment
- Integrated Twin design packs and ships more economically for less packaging waste compared to loose component shipping and assembly
- Integrated intelligent controls for fast and easy commissioning as well as reduced radio frequency interference/ improved electromagnetic compatibility
- Single source-responsibility for optimum design and field support
- Twin design for full redundancy in case of emergency or routine servicing
- ETL Listed - conforms to UL STD 778
- Certified to CSA STD C22.2 NO.108
- HVAC-system pumping; general purpose pumping; industrial/process pumping (water or glycol based)
- Armstrong Design Envelope Pumps with integrated controllers are OSHPD pre-approved!
