Digital pressure controller is a pressure measurement & control product with intelligent digital display, it is combined the functions of pressure measurement, display, output and control.

It is widely used in water and electricity industry, petroleum industry, chemical industry etc.

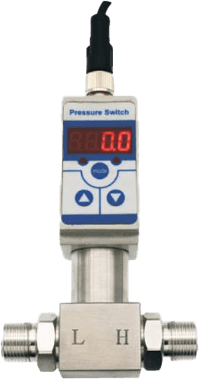

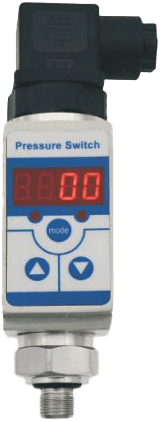

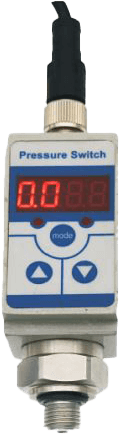

UPS2 digital pressure switch is pressure measurement & control product with intelligent digital display, it is combined the functions of pressure measurement, display, output and control.

This product is made with entire electronic structure, and built isolated-membrane pressure sensor in its front end.

Its output signal is amplified through high accuracy & low temperature drift amplifier, then is input high accuracy A/D converter, and processed by microprocessor, the processed signal controls two-way switch, to realize the pressure measurement and control for systems.

The use of UPS2 digital pressure switch is very flexible. UPS2's operation and adjustment is simple and easy, meanwhile, this product also has good reliability and safety.
Features
  • 4 digit LED Switch value can be set from zero to full scale freely
  • The outer case is equipped with light emitting diode (LED), is easy for observing operation
  • Operation is easy; the pressed key is for adjustment and parameters setting on the spot
  • Two-way switch output, 1.2 A loading capacity
  • 4~20 mA analog output (optional)

Specifications

Pressure Medium

  • Gas or Liquid Compatible with Stainless Steel

Pressure Ranges

  • -1...0 ~ 0.1...1000 bar

Overload Pressure

  • 150 % Full Scale

Output Signal

  • 4 ~ 20 mA (Option)

Controlling Accuracy

  • 0.25 % Full Scale (Standard)

Display Range

  • -1999 ~ 9999

Display Mode

  • 4 Digit LED

Switch Type

  • PNP (Standard) or NPN

Supply Voltage

  • 18 ~ 32 Vdc

Ambient Temperature Range

  • -30° C ~ +80° C

Media Temperature Range

  • -40° C ~ +100° C

Temperature Coefficient

  • 0.2 % Full Scale/10° C

Service Life of Switch

  • > 1 million times

Power Consumption

  • < 3 W

Load Capacity

  • < 24 V / 1.2 A

Process Connection

  • G1/4 or Others

Electrical Connection

  • M12 x 1 Connector or Others

Material of Wetted Part

  • 1Cr18Ni9Ti

Protection

  • IP65

  • Water and Electricity Industry
  • Petroleum Industry
  • Chemical Industry
  • Machinery Industry
