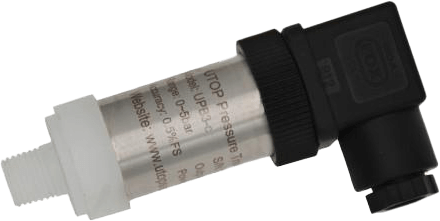

Corrosion-Proof Pressure Transmitter
Brand: Xi'an UTOP Measurement Instrument Co, LtdUPB3-c corrosion-proof pressure transmitter adopts ceramic pressure sensor and amplifier that are same as our standard UPB3 model.
The pressure diaphragm of UPB3-c is made from ceramic material (96% Al₂O₃), while its wetted parts are made from Polyvinylidene Fluoride (PVDF) material, which makes this corrosion-proof pressure transmitter have a higher degree of chemical corrosion resistance.
Features- Application for corrosive media
- The media is compatible with stainless steel material
- Polyvinylidene Fluoride (PVDF) as wetted part material
- Ceramic diaphragm(96% Al₂O₃)
- Measuring range from 0~1bar to 0~200bar
Specifications
Pressure Medium
- Gas or Liquid Compatible with Ceramic & PVDF Material
Pressure Ranges
- 0 ~ 1...200 bar
Overload Pressure
- 150 % Full Scale
Output Signal
- 4 ~ 20 mA, 0 ~ 5 V, 0 ~ 10 V, 1 ~ 5 V
Accuracy
- 0.5 % Full Scale (Standard)
Load Resistance
- RL= (U-12 V)/0.02 A (4~20 mA Current Output), U-Loop Voltage (V)
Supply Voltage
- 12~36 Vdc
Compensated Temperature Range
- 0° ~ +70° C
Operating Temperature Range
- -30° ~ +95° C
Storage Temperature Range
- -40° to +100° C
Temperature Coefficient of Zero
- 0.3 % Full Scale/10° C
Temperature Coefficient of Span
- 0.3 % Full Scale/10° C
Process Connection
- G1/4” or others
Electrical Connection
- Hirschmann Connectors or others
Material of Wetted Part
- Polyvinylidene Fluoride (PVDF)
- This Corrosion-Proof Pressure Transmitter is Designed for Measuring Corrosive Pressure Medium in most Industrial Application, including:
- Hydraulics and Pneumatics
- Refrigeration & Air Conditioning
- Process Control Systems etc.
