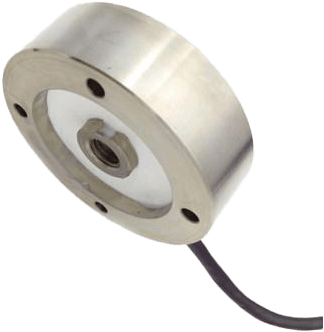

Tension And Compression Load Cell
Brand: Xi'an UTOP Measurement Instrument Co, Ltd
Features
- Capacity: 30 ~ 1000 kg
- Aluminum alloy
- Compression load cell, easy installation
- Low cost ,high precision
Specifications
Capacity
- 30 - 1000 kg
Output
- 1.5 ± 0.3 mV/V
Combined Error
- 0.03 % Full Scale
Non-Linearity
- ± 0.03 % Full Scale
Hysteresis
- ± 0.03 % Full Scale
Repeatability
- ± 0.03 % Full Scale
Creep
- ± 0.03 % Full Scale/30 min
Zero Unbalance
- 1 % Full Scale
Excitation Voltage
- 5 Vdc ~ 15 Vdc
Operating Temperature Range
- -35 ~ +80° C
Compensated Temperature Range
- -10° ~ +40° C
Temperature Coefficient of Zero
- 0.05 % Full Scale/10° C
Temperature Coefficient of Span
- 0.1 % Full Scale/10° C
Input Resistance
- 770 ± 10 Ω
Output Resistance
- 700 ± 10 Ω
Insulation Resistance
- ≥ 5000 MΩ @ 50 Vdc
Safe Load
- 120 % Full Scale
Ultimate Overload
- 150 % Full Scale
Protection
- IP66
Electrical Resistance
- 4-core Shielded Cable, Diameter: 5.7 mm, Length: 3.5 m
