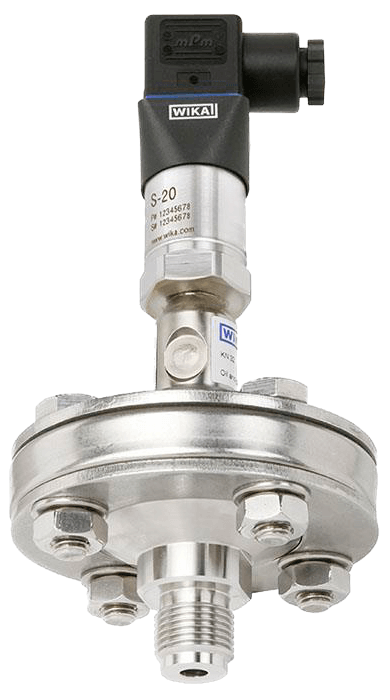

Model DSS10T High Quality Pressure Sensor with Mounted Diaphragm Seal
Brand: WIKA Alexander Wiegand SE & Co. KGDue to its design, the DSS10T can be used universally. A replacement of the lower body is possible (e.g. when changing the process connection) without having to carry out modifications on the diaphragm seal system.
The DSS10T is ideally suited for demanding measuring tasks and achieves a very high accuracy. It is characterised by its robust design and can be used for a multitude of applications.
Mounting of the diaphragm seal to the measuring instrument is made via direct mounting as standard.
The DSS10T is particularly well suited for aggressive or hot media. This instrument is mainly geared to applications in the process industry.
Features- Process connection with thread for direct threaded connection.
- Version with internal diaphragm.
- Diaphragm seal parts screwed together.
- Universal application.
Specifications
Design
- High-Quality Pressure Sensor, welded to Diaphragm Seal, threaded Design
Current Output
- 4 ... 20 mA (2-Wire)
Power Supply
- DC 8 ... 35 V
Accuracy at Reference Conditions
- ≤ ± 0.5 % of Span
Permissible Load in Ω
- Current output ≤ (Power Supply - 7.5 V) / 0.023 A
Current Supply
- Maximum 25 mA
Dissipation Loss
- 828 mW
Reference Conditions (per IEC 61298-1)
- Mounting Position: Calibrated in vertical mounting position with pressure connection facing downwards
- Power Supply: DC 24 V
- Humidity: 45 ... 75 % Relative Humidity
- Atmospheric Pressure: 860 ... 1,060 mbar [12.5 ... 15.4 psi]
- Temperature: 15 ... 25° C [59 ... 77° F]
Pressure Limitation
- ≥ 10 bar [150 psi]: 2 times
- < 10 bar [150 psi]: 3 times
Permissible Temperature Range
- Storage: 10° to 60° C [50° to 140° F]
- Ambient: 10° to 40° C [50° to 104° F]
- Medium: -10° to 150° C [14° to 302° F]
Ingress Protection
- IP65 per IEC/EN 60529
Wetted Material
- Diaphragm Seal: Stainless Steel 1.4404 (316L)
- Diaphragm: Stainless Steel 1.4435 [316L] or Hastelloy C-276
Non-Wetted Material
- Angular Connector: PBT/PET GF30
- Zero Adjustment Ring: PBT/PET GF30
- Case: Stainless Steel 1.4571 [316Ti]
Level of Cleanliness of Wetted Parts
- Oil and grease free per ASTM G93-03 level F (WIKA Standard) and ISO 15001 (< 1,000 mg/m²)
System Fill Fluid
- Silicone oil KN 2 for general applications
Transport Conditions
- Maximum Humidity (per IEC 68-2-78): 67 % Relative Humidity at 40° C [104° F] (In accordance with 4K4H per EN 60721-3-4)
- For aggressive, hot, corrosive, environmentally hazardous or toxic media
- Chemical and petrochemical industries
- Harsh environments in the process industry
