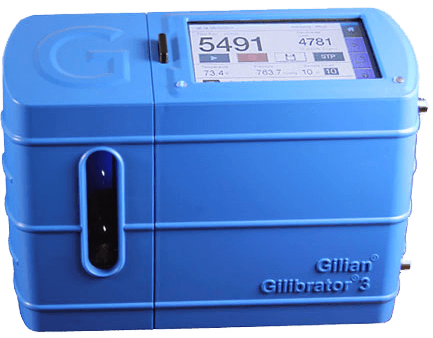

Gilibrator 3 with Stablflow
Brand: Sensidyne, LPThe Gilibrator 3 is the most advanced calibrator on the market, designed to provide performance, reliability, and ease-of-use.
The Gilibrator 3 truly sets the standard for calibration integrity and data reporting.
The Gilibrator 3 is a Primary air flow calibrator by NIOSH definition, and delivers NIST traceability through Sensidyne’s ISO 17025 accredited laboratory.
Features- Fast and easy to use dry calibrator
- StablFlow™ provides constant low back pressure to device being calibrated
- Patent pending pulse-free valve technology maintains calibration integrity
- Touch screen color display with auto adjust for visibility in all lighting conditions, even in direct sunlight
- Multiple flow cells with a common base adds convenience and saves cost
- Internal record storage provides data continuity and reporting
- Gilian CONNECT PC Compatible allows for data retrieval, record keeping, and statistical analysis of data
- SmartCal™ capable with GilAir Plus® pumps, for hands free adjustments
Specifications
Brand
Flow Ranges
- Low 5-450 cc/min, Standard 50-5000 cc/min, High 1-30 LPM
Volumetric Accuracy
- 1 % of Reading†
Temperature & Pressure Sensor
- YES, in flow stream
Time per Measurement
- 1-15 seconds
Sampling Mode
- Instantaneous, Averaging
Averaging Function
- Selectable, 3 to 20 Measurements
Gas Compatibility
- non-corrosive, Non-Condensing
Flow Modes
- Pressure or Suction
AC Adapter / Charger
- 12 Vdc
Battery System
- Lithium (LiFePO4)
Battery Run Time
- 3 hours max flow, 8 hours continuous use (min brightness)
Battery Charge Time
- 12 Vdc Adaptor 3 hr, USB 7 hrs (unit off)
Warranty
- 24 Months (1 Year Battery)
Operating Temperature
- 0° to 50° C (32° to 122° F)
Storage Temperature
- 0° to 70° C (32° to 158° F)
Operating Humidity
- 0-85 % RH, Non-Condensing
Storage Humidity
- 0-100 % RH, Non-Condensing
Display
- Color Graphic LCD, HMI Touch Screen
Data Port
- RS-232 (for Pump interface), USB (for data)
Transportable Storage
- SD Card
Protective Case
- Standard or Deluxe carrying case for 1 or 3 Cells
Dimensions (HxWxD)
- 6.6" x 9.2" x 3.2" (168 x 234 x 81 mm)
Weight
- Base: 2.8 lb / 1,270 g, Low Flow Cell: 0.8 lb / 363 g, Std Flow Cell: 0.85 lb / 385 g, High Flow Cell 1 lb / 454 g
Certifications
- The Gilibrator® 3 is EN 61010-1, CE, RoHS and EMC compliant. The Gilibrator® 3 contains an internal battery which has been approved for shipping and transport per UN/DOT 38.3 and IEC 62133-2 (2nd Edition)
