Barksdale CANbus Monitor, Dynalco D-100 Series

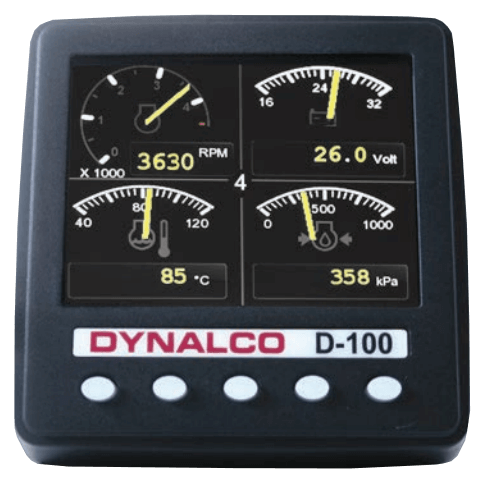

Dynalco D-100 Series CANbus Monitor

Brand: Barksdale
Add Product to My Catalog

D-100 CANbus monitor offers J1939 compatibility for displaying engine performance parameters as well as providing over/under speed threshold protection.

The D-100 can also monitor and display various types of inputs to help measure parameters such as temperature, pressure, and RPM.

Plus it can send output signals to trigger controls via 4 independent relays.
Features
  • High resolution 320 x 240 color LCD, clear high contrast screen
  • 7 Analog, 2 digital, and 1 signal inputs
  • 4 relay outputs
  • Full sunlight readable with maximum brightness of 750 NIT (cd/m2)
  • User configurable single and quadruple screens
  • 5 soft keys provide easy, full local configuration
  • Select digital values, Analog gauges, or both to meet your preference
  • Displays TIER 4 engine information
  • Alarms provide immediate visual and audible indications
  • Password protected to avoid unauthorized changes
  • IP66 enclosure rating

1 - 4 of 4 Part Numbers
D-100
D-100
  • Model - CANbus Monitor with (4) M4 Nylon Studs, (4) Thumbnuts
D-100-B
D-100-B
  • Model - CANbus Monitor with (4) M4 Nylon Studs, (4) Thumb Nuts with Mounting Bracket
D-100-B-C
D-100-B-C
  • Model - CANbus Monitor with (4) M4 Nylon Stud, (4) Thumbnut with Mounting Bracket & Cable Harness Assembly
D-100-C
D-100-C
  • Model - CANbus Monitor with (4) M4 Nylon Studs, (4) Thumb Nuts with Cable Harness Assembly
1 - 4 of 4 Part Numbers

View_Details

Specifications

Brand

Applications

  • CANbus Enabled Engines
  • CANbus Enabled Power Generators

Communication

  • CANbus 2.0B
  • RS-232
  • USB 2.0

Display

  • 3.5” TFT Color LCD, QVGA Resolution 320 x 240 Pixels

Electrical Connectors

  • Deutsch DT04-12P Receptacles

Enclosure, Body Material

  • Acrylonitrile Butadiene Styrene (ABS)

Environmental Protection

  • IP66 - Front
  • IP67 - Back

Frequency

  • 50 Hz, Max.
  • Magnetic Pickup (Signal Input): 0 to 5,000 Hz

Input

  • 0 to 1 kiloohms
  • 0-10 Vdc

Operating Temperature

  • -40° to 70° C (-40° to 158° F)

Output

  • Relay Outputs Rated: 0.5 A

Power Supply

  • 10-30 Vdc

Storage Temperature

  • -40° to 80° C (-40° to 176° F)

  • CANbus Enabled Engines
  • CANbus Enabled Power Generators

Documentation

Data Sheets
