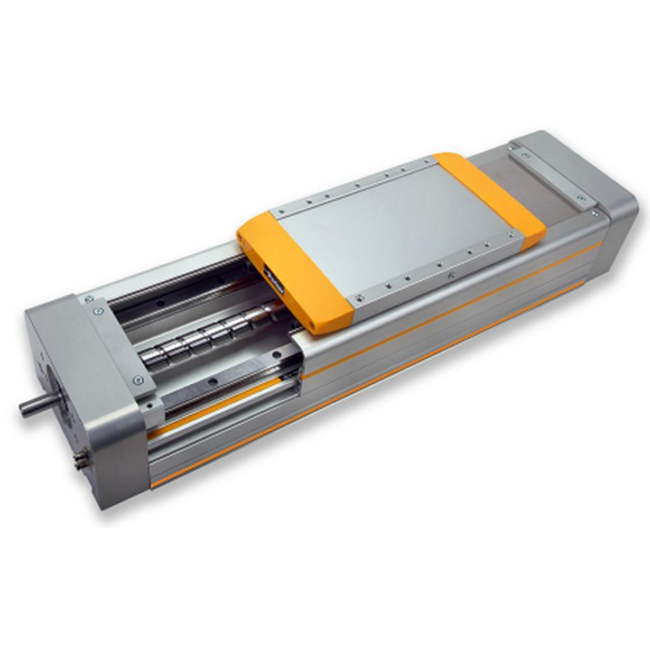

HMR Series - HMRS24 Screw Driven, Square Rail Bearing Rodless Linear Actuator

HMR Series - HMRS24 Screw Driven, Square Rail Bearing Rodless Linear Actuator

Brand: Parker Hannifin
Add Product to My Catalog

Parker Hannifin’s High Moment Rodless (HMR) electromechanical actuator series is one of the most versatile actuator lines on the market today.

Guided by two square rail bearings, the HMR has enormous moment and payload capacity for two different chassis profiles, allowing the user to choose between a low profile "basic" version, or a "reinforced" version giving structural rigidity for long unsupported spans.

Ease of use by integrated external accessible lubrication fittings into the carriage that allow for evenly dispensed lubricant across all bearing trucks.

In addition, there are options including 5 different frame sizes, different drive trains, multiple mountings, internally wired sensor as well as the IP54 protective cover.

With a multitude of other customizable features the HMR is truly designed for flexibility.
Features
  • Ball screw drive for high precise positioning requirements
  • Dual square rail for highest load and ideal radial load capability
  • Reinforced profile structure for high torsional stiffness in unsupported lengths
  • High acceleration and thrust forces for medium speed applications
  • Precision and repeat mounting with centering pins on carriage surface
  • Selective IP protection for IP20 and IP54
  • Fully integrated sensor wiring for home and end position detection
  • External lubrication fittings to dispense in bearing trucks and ball screw nut
  • Easy to mount concept with toe clamps

Specifications

Brand

Additional Protection Option

  • IP54 (with Outer Cover)

Bearing Type

  • Square Rail

Corrosion Resistant Option

  • No

Drive Type

  • Ballscrew

Idler Unit Option

  • No

Linear Feedback Device

  • No

Maximum Acceleration (Inch/S2)

  • 393

Maximum Acceleration (m/S2)

  • 10

Maximum Payload FZ (N)

  • 26600 (Standard) / 39900 (Tandem Carriage)

Maximum Speed (inch/sec)

  • 63

Maximum Speed (m/sec)

  • 1.6

Maximum Stroke (inch)

  • 157

Maximum Stroke (mm)

  • 4000

Maximum Thrust FX (Lbs)

  • 1236

Maximum Thrust FX (N)

  • 5500

Position Repeatability (± Inch)

  • 0.0008

Position Repeatability (± mm)

  • 0.02

Profile Width (mm)

  • 240

Series

  • HMR

Typical Payload FZ (N)

  • 1500 - 26600

  • Pick and place applications
  • Packaging, labeling and wrapping systems
  • Pusher, picker and gripper applications
  • Positioning
  • Lower and levelling
  • Tool loading

Documentation

Data Sheets

Brochure
