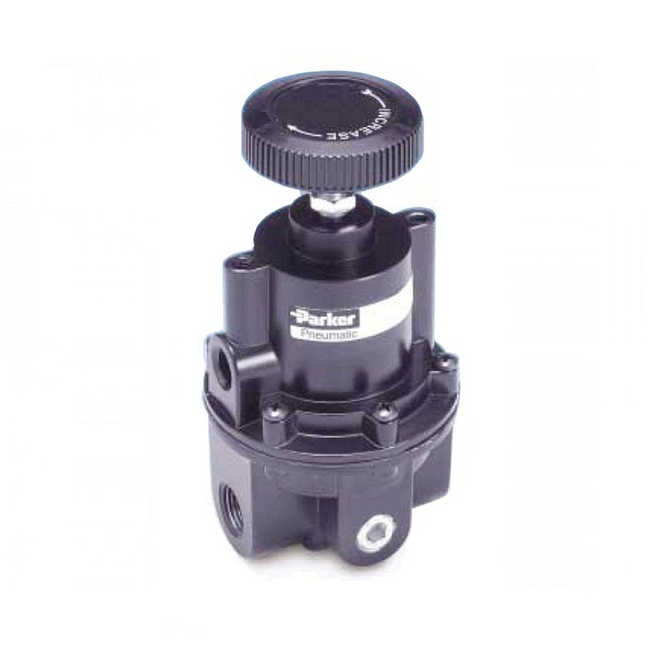

High Flow Precision Pressure Regulator - R230 Series
Brand: Parker HannifinR230 pressure regulators are designed for applications that require high flow capacity and accurate process control.
1/4" ported BSPP/NPT.
Max P1 pressure 17 bar / P2 ranges 0 to 0.13, 2, 4 & 10 bar.
Temp -40° to 71°C.
Flow rates up to 37.8 dm³/s.
Specifications
Brand
Body Material
- Aluminum
Flow Rate (dm3/sec)
- 37.8 (At 6.89 bar Supply)
Flow Rate (scfm)
- 80 @ 100 psig Supply
Maximum Inlet Pressure (bar)
- 17
Maximum Inlet Pressure (psig)
- 247
Operating Temperature (°C)
- -40° to +71° C
Operating Temperature (°F)
- -40° to +160° F
Port Size
- 1/4”
Port Type
- BSPP / NPT
Pressure Control Range (bar)
- bar: 0 to 0.13, 0 to 2, 0 to 4, 0 to 10
Pressure Control Range (psig)
- psig: 0 to 1.8, 0 to 29, 0 to 58, 0 to 145
Pressure Control Sensitivity (bar)
- 0.006
Pressure Control Sensitivity (cmH20)
- 0.64
Pressure Control Sensitivity (InH20)
- 0.250”
Pressure Control Sensitivity (psig)
- 0.087
Product Type
- High Flow Precision Pressure Regulator
