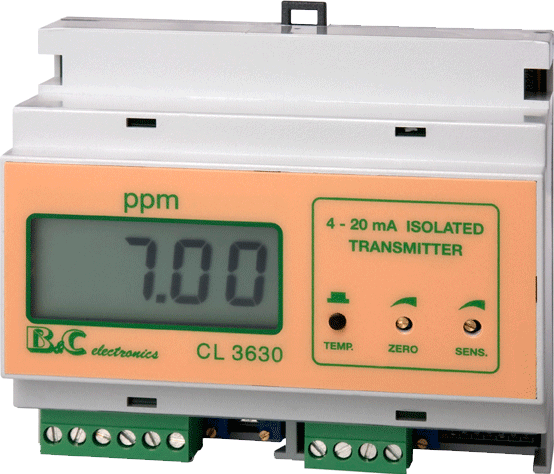

CL 3630 Transmitter for Free Chlorine and Dissolved Oxygen

Brand: Van London Company

The CL 3630 is a 4/20 mA Isolated Transmitter for Free Chlorine and Dissolved Oxygen Systems.
Features
  • The transmitters incorporate a large LCD display which is easily readable even from considerable distances.
  • Transmitters are powered by an external power supply from 10 to 30 Vdc. The same two wires which provide power to the transmitter also carry the 4/20 mA output signal.
  • The 4/20 mA output is isolated from the input.
  • The isolation allows the connection to PLC, DCS or Personal Computers accepting 4/20 mA signals.
  • The transmitter will display temperature and the temperature coefficient values of manual/automatic temperature compensation.
  • The automatic temperature compensation is achieved with the use of a Pt100.
  • Detachable terminal blocks and Din Rail mounting enclosure provide for easy field installation.
  • Two wire 4/20 mA operation
  • Isolated current loop output
  • Potentiostatic, polarographic and galvanic sensors input
  • LCD display
  • Temperature and TC display
  • Automatic or manual temperature compensation
  • 10/30 Vdc power supply
  • Direct connection to PC's
  • Din Rail mounting
  • Detachable terminal blocks

Specifications

Display

  • LCD

Inputs

  • Potentiostatic Sensor 3-Wires
  • Polargraphic sensor 2-Wires
  • Glavanic sensor 2-Wires
  • Pt100

Polarization

  • -200 mV adjustable ± 800 mV on request

Scales

  • 0/1.999 - 0/19.99 - 0/199.9 - 0/1999 selectable
  • -10.0/120.0° C

Slope

  • 0.4 - 4 - 40 µA of the selected scale

Temperature Compensation

  • Manual and Automatic

Temperature Coefficient

  • 0 %/4° C
  • 2 %/°C for Chlorine e 2.5 %/°C for Ozone

Reference Temperature

  • 20° C

Zero

  • adjustable ± 15 %

Sensitivity

  • Adjustable 86/112 % (coarse 20/200 %)

Output

  • 4/20 mA isolated

Operating Temperature

  • 0/50° C

Operating Humidity

  • 95 % without condensate

Power

  • 10/30 Vdc

Isolation

  • 500 V from input to output

Weight

  • 200 g

Dimensions

  • 105 x 95 x 58 mm

Mounting

  • DIN rail (6 modules)
