Testo 174 T - Mini Temperature Data Logger Kit
Brand: TestoThe testo 174T mini temperature data logger has a large display and alarm indication that makes it ideal for the continuous monitoring of storage temperature.
This temperature measurement logger is long lasting for continuous use and has a high accuracy.
The 174T mini temperature measurement logger kit includes a USB interface for data transfer and has free software available as a download for easy data analysis.
The testo 174T is an ideal data logger for the continuous monitoring of temperatures.
Because storage temperatures should never exceed specific limit values, the 174T records the temperatures values and alerts when thresholds have been exceeded.
Features- High accuracy NTC thermistor sensor for reliable data
- Easy to read large display that shows current reading and exceeded measurement limits
- IP65 proection class
- HACCP compliant
- Free data logger software available for download
- Professional software with Excel export function for programming the logger and data analysis
- Temperature measuring range from -30°C to +70°C
- Automatic measuring data backup when the battery runs out or is changed
- Measurement data memory for up to 16,000 readings
- Easy-to-change battery
- Displays violations of limit values
- Please note: One USB interface for data transfer can be used for multiple instruments.
Specifications
Brand
Delivery Scope

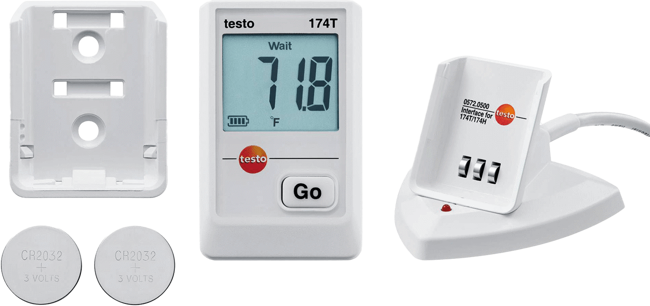

- Testo 174T Temperature Data Logger, USB Interface for Data Transfer
Dimensions
- 2.4 x 1.5 x 0.7 in. ((LxWxH)) / 60 x 38 x 18.5 mm ((LxWxH))
Operating Temperature
- -22° to 158° F / -30° to +70° C
Housing
- Plastic
Protection Class
- IP65
Channel
- 1 Internal
Product Colour
- White
Standards
- EN 12830, 2011/65/EU
EU-/EG-Guidelines
- EU-guideline 2014/30/EU
Measuring Rate
- 1 min - 24 h
Battery Type
- 2 x 3 V button cell (CR 2032)
Battery Life
- 500 days (15 min measuring cycle, +25° C)
Memory
- 16,000 Measuring Values
Storage Temperature
- -40° F to 158° F / -40° C to +70° C
Temperature - NTC
- Measuring Range: -22° F to 158° F / -30° C to +70° C
- Accuracy: ± 0.9° F (-22° F to 158° F / ± 0.5° C (-30° C to +70° C)
- Resolution: 0.1° F / 0.1° C
Weight
- 1.24 oz. / 35 g
- Monitoring and Documentation of the Temperature in Cold Rooms
- Temperature Monitoring in Deep-Freeze Rooms for Foods
- Monitoring and Documentation of Transport Temperature
