Signatrol Miniature RH and Temperature Data Logger, SL50

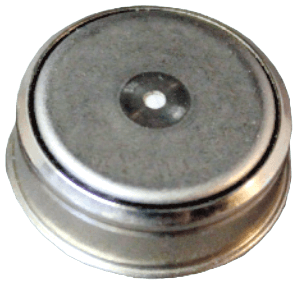

SL50 Miniature RH & Temperature Data Logger

Brand: Signatrol Ltd
Add Product to My Catalog

Signatrol Miniature RH and Temperature Data Logger, SL50 Signatrol Miniature RH and Temperature Data Logger, SL50
The SL50 series of miniature data loggers comprises of four data loggers:

The SL51T measures temperature from -40° to 85° C with an accuracy of ±1° C.

The SL52T operates over the same temperature range of the SL51T, -40° to 85° C but has an improved accuracy of ±0.5° C. The SL53T operates over the range 0° to 125° C with an accuracy of ±0.5° C.

The SL54TH measures temperature over the range -40° to 85° C and also measures relative humidity from 0 to 100%.

SL55T-A measures from 15° to 140° C with an accuracy of ±0.5° C from 80° to 140° C.

All models are available supplied complete with UKAS traceable calibration certificates.

These models are identified with the -A suffix and in the case of the SL53T-A and the SL54TH-A, are calibrated to give an improved accuracy over the “standard” version.

All members of the SL50 series are fully compatible with our TempIT software which is available as a free download from the Signatrol website.

The SL50 series data loggers connect to the computer using the USB interface (sold separately).

There are also a range of accessories available to assist with mounting or protection.

View_Details

Specifications

Brand

Accuracy

  • ± 0.2° to 1.5° C (± 0.36° to 2.7° F) from 0° to 125° C (32° to 257° F) - SL53T / SL53T-A
  • ± 0.5° C (± 0.9° F) from -10° to 140° C (14° to 284° F) for SL54T / SL54T-A & SL55T
  • ± 0.5° to 1° C (± 0.9° to 1.8° F) from -40° to 85° C (-40° to 185° F) - SL52T/SL52T-A
  • ± 1° to 1.3° C (± 1.8° to 2.34° F) from -40° to 85° C (-40° to 185° F) - SL51T / SL51T-A
  • ± 2 % Relative Humidity - Relative Humidity for SL54TH-A
  • ± 5 % Relative Humidity - Relative Humidity for SL54TH

Approvals & Certifications

  • EN 12830
  • UKAS - SL51T-A, SL52T-A, SL53T-A, SL54TH-A, SL55T-A

Approvals & Certifications

  • FDA 21 CFR Part 11
  • UL 913 (4th Edition): Intrinsically Safe Apparatus, Approval Under Entity Concept for use in Class I, Div. 1, Groups A, B, C, & D Locations, EEx ia IIC T4 (-40° to 80° C)

Battery Life

  • 0 to 10-Years at 20° to 85° C (68° to 185° F)

Communication

  • USB

Delay Time

  • 0 to 1-Year at 1 Minute Resolution - SL52T/SL52T-A, SL53T/SL53T-A, SL54TH/SL54TH-A & SL55T-A
  • 0 to 45 Days at 1 Minute Resolution - SL51T/SL51T-A

Enclosure, Body Material

  • Plastic
  • Silicone
  • Stainless Steel

Environmental Protection

  • IP55

Interface Connection

  • USB Interface Lead

Materials of Construction

  • 305 Stainless Steel

Mounting

  • Pallet Mount
  • Wall Mounted

Operating Temperature

  • -20° to 85° C (-4° to 185° F) - SL54TH / SL54TH-A

Resolution

  • 0.07° C - High Resolution Mode
  • 0.5° C - Low Resolution Mode

Response Time

  • 1 Minute 29 seconds at 63 % Time Constant: Temperature for SL54TH / SL54TH-A
  • 180 seconds - 10 to 90 % Step Change for SL55T-A
  • 2 minutes 50 seconds - 10 to 90 % Time Constant: Temperature for SL54TH/SL54TH-A
  • 3 minutes 44 seconds - 63 % Time Constant: Relative Humidity for SL54TH / SL54TH-A
  • 9 minutes 50 seconds - 10 to 90 % Time Constant: Relative Humidity for SL54TH / SL54TH-A
  • 90 seconds - 63 % Step Change for SL55T-A

Storage Temperature

  • -40° to 85° C (-40° to 185° F) - SL54TH / SL54TH-A

Temperature Range

  • 0° to 125° C (32° to 257° F) - SL52T / SL52T-A
  • 15° to 140° C (59° to 284° F) - SL55T-A
  • -40° to 85° C (-40° to 185° F) - SL51T / SL51T-A, SL52T / SL52T-A

Documentation

Data Sheets
