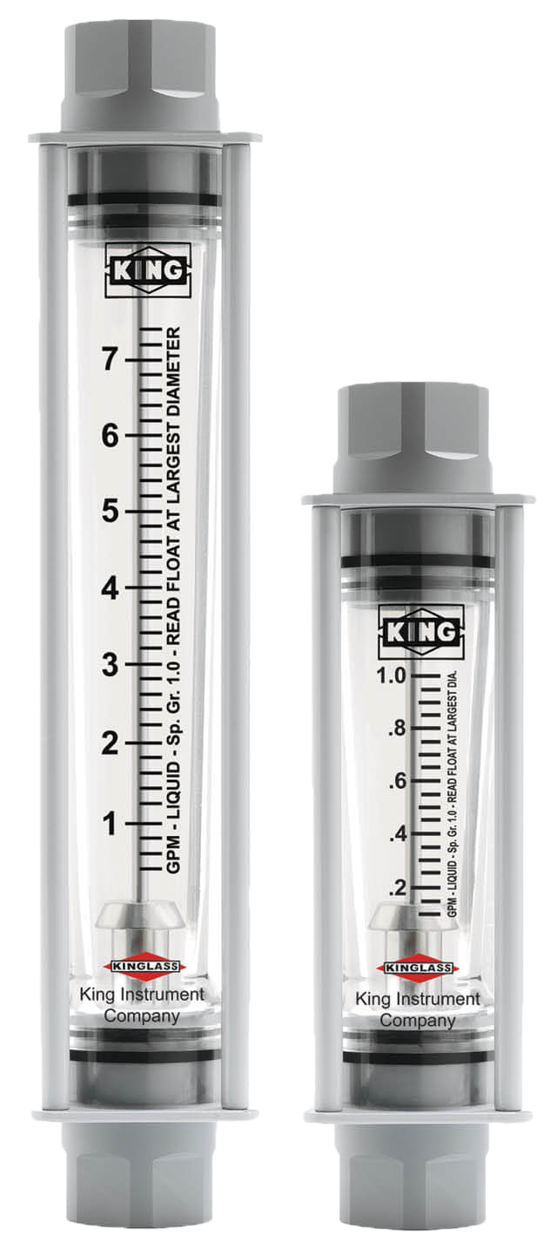

7650 Series Glass Tube Flowmeter
Brand: King Instrument CompanyKing Introduces a chemical resistant, borosilicate glass tube meter series for liquid service. It features a clear polycarbonate shield surrounding the glass metering tube.
It is assembled in a 304 SS tie rod frame. It offers CPVC and Hastelloy C-276 as optional materials of construction, suitable for a wide range of chemical and corrosive applications.
O-ring seals allow for easy disassembly and cleaning.
Features- Chemically-Resistant, Borosilicate Kinglass Meter
- Reinforced, Stainless Steel Tie Rod Frame
- 80mm Direct Reading Scale
- 0.25 – 26 GPM Water; Liquid Service Only
1 - 12 of 384 Part Numbers
765-1-3-2-1-41W
- Scale Size - 80 mm
- Fitting Material - PVC
- Float Material - 316L SS
- O-ring Material - EPR
- Water Flow - .5 GPM
765-1-3-2-1-42W
- Scale Size - 80 mm
- Fitting Material - PVC
- Float Material - 316L SS
- O-ring Material - EPR
- Water Flow - 1.0 GPM
765-1-3-2-1-43W
- Scale Size - 80 mm
- Fitting Material - PVC
- Float Material - 316L SS
- O-ring Material - EPR
- Water Flow - 2.0 GPM
765-1-3-2-1-44W
- Scale Size - 80 mm
- Fitting Material - PVC
- Float Material - 316L SS
- O-ring Material - EPR
- Water Flow - 3.5 GPM
765-1-3-2-1-45W
- Scale Size - 80 mm
- Fitting Material - PVC
- Float Material - 316L SS
- O-ring Material - EPR
- Water Flow - 5.6 GPM
765-1-3-2-1-46W
- Scale Size - 80 mm
- Fitting Material - PVC
- Float Material - 316L SS
- O-ring Material - EPR
- Water Flow - 7.4 GPM
765-1-3-2-1-60W
- Scale Size - 80 mm
- Fitting Material - PVC
- Float Material - 316L SS
- O-ring Material - EPR
- Water Flow - 10.0 GPM
765-1-3-2-1-61W
- Scale Size - 80 mm
- Fitting Material - PVC
- Float Material - 316L SS
- O-ring Material - EPR
- Water Flow - 15.0 GPM
765-1-3-2-1-62W
- Scale Size - 80 mm
- Fitting Material - PVC
- Float Material - 316L SS
- O-ring Material - EPR
- Water Flow - 25.0 GPM
765-1-3-2-2-41W
- Scale Size - 80 mm
- Fitting Material - PVC
- Float Material - 316L SS
- O-ring Material - Buna-N
- Water Flow - .5 GPM
765-1-3-2-2-42W
- Scale Size - 80 mm
- Fitting Material - PVC
- Float Material - 316L SS
- O-ring Material - Buna-N
- Water Flow - 1.0 GPM
765-1-3-2-2-43W
- Scale Size - 80 mm
- Fitting Material - PVC
- Float Material - 316L SS
- O-ring Material - Buna-N
- Water Flow - 2.0 GPM
1 - 12 of 384 Part Numbers
Specifications
Brand
Metering Tube
- Borosilicate Kinglass
Internal Components
- 316L SS
- Hastelloy® C-276
Inlet/Outlet Fittings
- FNPT, vertical
Fitting Material
- PVC
- CPVC
O-Ring
- EPR
- Buna-N
- Viton®
- Kalrez®
Capacities
- Water: 0.25 to 26 GPM
Scale
- 80 mm (3”) , 127 mm (5") direct reading
Accuracy
- ± 5% of 3” full scale flow
- ± 3% of 5” full scale flow
Turndown
- 10:1
Repeatability
- 0.5%
Maximum Temperature
- 140 °F
Maximum Pressure
- 100 psig
