Operator Station ET-538

Ambient Conditions

• Ambient temperature operation - -10 °C … +65 °C
• Ambient temperature operation 1 - -40 °C … +65 °C with heater
• Cold start temperature - -10 °C or -40 °C
• Corrosion resistance - Salt water 5 % NaCl / +20 °C / 2 h 93 % r.H. / +40 °C / 168 h ISA-S71.04-1985, severity level G3
• Damp heat - +55 °C / 95 %
• Damp heat cyclic - +55 °C (±2 °C) ≥ 95 % Humidity location class B
• Heat dissipation - Via heat pipes and cooling fins
• Heater operation - Automatic
• Shock - 18 Shocks 25 g / 6 ms Axis X, Y, Z
• Storage temperature - -40 °C … +70 °C
• Temperature note 1 - The cold-start temperature depends on the "outdoor installation" (with / without heater).
• Temperature note 2 - Cold start temperature: If the HMI device is switched on at a temperature below -10 °C the display will need a certain amount of time to warm up until everything is clearly visible. Depending on how low the temperature is, this process may last up to 3 hours.
• Vibration sinus - 5 to 13.2 Hz: ±1 mm 13.2 to 100 Hz: ±0.7 g Change cycle 1 oct/min Axis X, Y, Z
• Vibration sinus 1 - 5 to 58 Hz: ±0.075 mm 58 to 500 Hz: ±1 g Change cycle 1 oct/min Axis X, Y, Z
• Vibration sinus 2 - 5 to 1000 Hz 5 g

Components

• Keyboard - optional, attached keyboard and pointing device (trackball, or joystick (Ex ia)) or desktop keyboard with 105 keys (Ex ia) and optical desktop mouse (Ex ia)

Display

• Backlight - LED Technology
• Backlight service life - 70 000 h at +25 °C
• Display brightness - TFT 450 cd/m² SR 1200 cd/m²
• Display contrast - TFT 500:1 SR 600:1
• Display dimensions - 4:3
• Display resolution - XGA
• Display size centimetres - 38
• Display size inch - 15
• Display version - TFT colour display or sunlight-readable display
• Display version 2 - 16.7 million colours
• Function keys - 8 of which 2 brightness keys
• Total pixels - 1024 x 768
• Touch screen - optional, projected, capacitive (PCAP), multi-touch
• Touch screen technology - Glass touch

Electrical Data

• Bluetooth - optional
• Connection compartment - Power supply direct in integrated Ex e connection box
• Connections - Via plug-in screw terminals, green
• Data cable - CAT7 installation cable AWG23
• Data cable length - max. 100 m
• Data memory - 60 GB
• Ethernet / Data - 1x 100/1000Base-TX (Ex e)
• Frequency range - 50 - 60 Hz
• Front camera - optional, 5 megapixel, in-built
• Further connections - 12 / 24 V DC output 2 x fan on / off switch
• Image - Remote Firmware
• Interface Audio - 1 x Audio line out (Ex e)
• Interface medium - CAT7 Data transmission
• Interface reader - 1 x reader / barcode reader interface (Ex i)
• Interface Serial - 1 x RS-232 / RS-422 / RS-485 (Ex e)
• Interface USB - 3 x USB (Ex ia) 1 x USB (Ex e)
• Language support - via operating system
• Max. input voltage Um - 250 VAC
• Operating system - Windows 10 IoT Enterprise (64 Bit)
• Optional interface 1 - Bluetooth WLAN 2.4 GHz (Ex i) WLAN 5 GHz (Ex i)
• Plug version USB - USB-A connector
• Power consumption AC 1 - 0.6 A at 230 VAC (0.8 A when heater is in use)
• Power consumption AC 2 - 1.1 A at 110 VAC (1.7 A when heater is in use)
• Power consumption DC - 4.6 A at 24 VDC (6.9 A when heater is in use)
• Processor details - 1.6 GHz; dual core
• Processor type - AMD GX-217GA
• Protection fuse AC - 5 A
• Protection fuse DC - 12 A
• RAM - 4 GB
• Rated operational power - typically 100 W / max. 150 W (typically 340 BTU / max. 510 BTU)
• Rated operational voltage AC - 230 V
• Rated operational voltage DC - 24 V
• Status LED - LEDs - on / off (green) - voltage applied to supply line / power supply OK (orange) - heater on (blue)
• Voltage range AC - 100 - 240 V
• Voltage range DC - 20 - 30 V
• Wiring - Flexible conductors 0.2 to 2.5 mm² (AWG24 to AWG14) Rigid conductors 0.2 to 2.5 mm² (AWG24 to AWG14)
• WLAN - optional

Explosion Protection

• Application range (divisions) - Class I, Zone 1 Class I, Division 2 Class II, Division 1 and 2 Class III
• Application range (zones) - 1 2 21 22
• Certification ABS - 17-HG1687000-PDA
• Certification ATEX - BVS 14 ATEX E 134 X
• Certification CEC - FM 16 CA 0141 X
• Certification CNEX - CNEx17.2233X
• Certification DNV / GL - TAA00001E6
• Certification EAC - TC RU C-DE.ME92.B.00843
• Certification IECEx - IECEx BVS 14.0116X
• Certification NEC - FM 16 US 0278 X
• Certifications - ATEX, IECEx, EAC, NEC, CEC, CNEX
• Dust explosion protection ATEX - II 2 (1) D Ex tb [ia op is Da] IIIC T115°C Db
• Dust explosion protection CEC - Zone 21, Ex tb [ia Da] IIIC T115°C Db Class II, Div. 1 Groups E, F, G T4 Class III
• Dust explosion protection CNEX - Ex tb [ia op is Da] IIIC T115°C Db
• Dust explosion protection EAC - Ex tb [ia op is Da] IIIC T115°C Db X
• Dust explosion protection IECEx - Ex tb [ia op is Da] IIIC T115°C Db
• Dust explosion protection NEC - Zone 21, AEx tb [ia op is Da] IIIC T115°C Db Class II, Div. 2 Groups F, G T4 Class III
• Gas explosion protection ATEX - II 2 (1) G Ex e q [ia op is Ga] IIC T4 Gb
• Gas explosion protection CEC - Ex eb q [ia Ga] IIC T4 Gb Class I, Div. 2 Groups A, B, C, D T4
• Gas explosion protection CNEX - Ex eb q [ia op is Ga] IIC T4 Gb
• Gas explosion protection EAC - 1Ex e q [ia op is Ga] IIC T4 Gb X
• Gas explosion protection IECEx - Ex eb q [ia op is Ga] IIC T4 Gb
• Gas explosion protection NEC - Class I, Zone 1 AEx eb q [ia op is Ga] IIC T4 Gb Class I, Div. 2 Groups A, B, C, D T4
• Ship certificates - ABS, DNV / GL

General

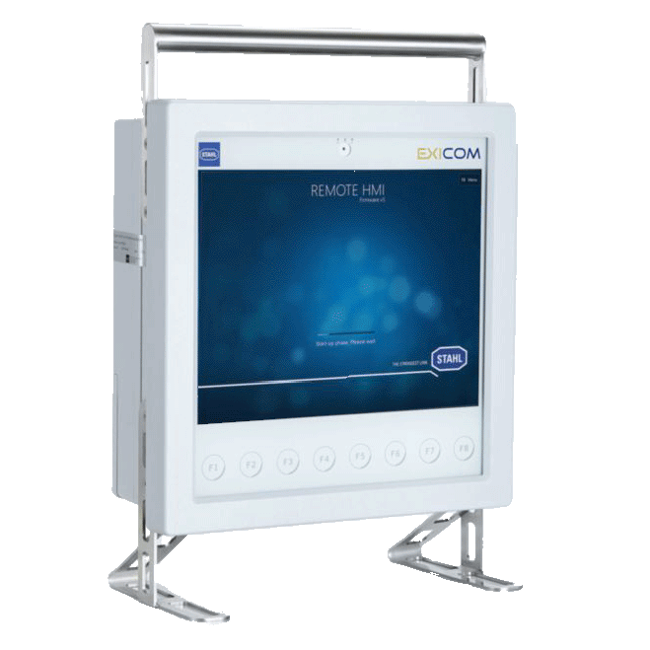

• Functional Description - R. STAHL's ET-538 series HMI systems are Thin Clients for hazardous zones 1, 2, 21 and 22. Their rugged design makes them shock, vibration and seawater-proof and suitable for temperatures ranging from -40 to +65 °C. The are certified for degree of protection IP66. The 15" display with a resolution of 1024 x 768 pixels is available as a sunlight-readable version. A chemically hardened, glare-free glass screen protects the display and the function keys, and, as a further option, also a projected-capacitive touch screen with multi-touch function, camera and Bluetooth antenna. Data is transmitted via dual Ethernet as 10/100/1000Base-TX via CAT7 up to 100 m and WLAN (2.4 GHz / optional 5 GHz)
• Highlights - Thin Client, 15" display, optional sunlight-readable 1200 cd/m² Rugged design: IP66, shock, vibration and seawater-proof, temperature range -40 °C to +65 °C Compact, lightweight HMI design < 25 kg / 55 lbs Data is transmitted via dual Ethernet as 10/100/1000Base-TX via CAT7 up to 100 m and WLAN (2.4 GHz / optional 5 GHz)
• HMI type - Operator station
• Product description - 15" Thin Client
• Product Description - Thin Client SERIES 500 Device platform SHARK
• Product Type - ET-538-1TX
• Series - Product Series ET-538
• Technology - Remote HMI Thin Client

HMI General

• WebCode - ET538A

Mechanical Data

• Cable gland cable diameter range (1) - M16 = 4 … 8 mm / M20 = 10 … 14 mm / M25 = 14 … 18 mm
• Cable gland number (1) - 3 x M16, 3 x M20, 2 x M25
• Cable gland number (2) - 3 x M16, 3 x M20
• Cable gland thread size (1) - M16 x 1.5 / M20 x 1.5 / M25 x 1.5
• Cable gland thread size (2) - M16 x 1.5 / M20 x 1.5
• Cable gland type (1) - HSK-MZ-Ex
• Cable gland type (2) - Screw plug
• Cable gland wrench size (1) - M16 = SW 19 / M20 = SW 22 / M25 = SW 30
• Cut-out - No panel mount
• Dimensions (WxHxD) (1) - 380 mm x 394 mm x 137 mm (+52 mm cable entries)
• Dimensions (WxHxD) (2) - 380 mm x 394 mm x 212 mm
• Enclosure / Design (1) - VESA 200 Standard
• Enclosure / Design (2) - VESA 200 Top Connect
• Ingress protection - IP66
• IP enclosure back - IP66
• IP enclosure front - IP66
• Material back - Seawater-resistant powder coated aluminum
• Material front - Seawater resistant and coated aluminium, hardened glass
• Mounting position - any
• Weight - 25 kg

Mounting / Installation

• Enclosure design - VESA 200 Standard, VESA 200 Top Connect
• Enclosure type - Rugged Panel Design (RP)
• Mounting option - Yoke, handle and feet, sun-shade, panel mounting (with xx8 Mounting-Kit)
• Mounting type - when switched on: a fixed device (stationary, non-portable equipment)
