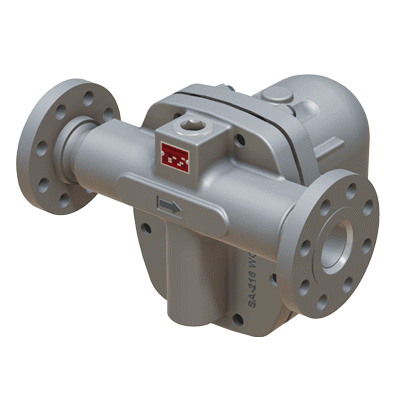

WLD600/WLD601 Series Float Type Liquid Drainer
Brand: Watson McDaniel
The WLD600/WLD601 Series are used in applications where immediate and continuous discharge of large amounts of liquid is required.
Typically used in heavy industrial process applications for draining condensate from air or other gases.
Features- All stainless steel internals for long service life
- Body & cover available in Carbon Steel or 316 Stainless Steel
- Rugged construction designed for heavy industrial applications
- In-line repairable
Specifications
Brand
Enclosure, Body Material
- 316 Stainless Steel - Model WLD601
- Carbon Steel - Model WLD600
Flange Size - 1-1/2” (DN 40)
- 1-1/2” (DN 40) - 150#
- 1-1/2” (DN 40) - 300#
- 1-1/2” (DN 40) - 600#
Flange Size - 1” (DN 25)
- 1” (DN 25) - 150#
- 1” (DN 25) - 300#
- 1” (DN 25) - 600#
Flange Size - 2” (DN 50)
- 2” (DN 50) - 150#
- 2” (DN 50) - 300#
- 2” (DN 50) - 600#
Flange Size - 3” (DN 80)
- 3” (DN 80) - 150#
- 3” (DN 80) - 300#
- 3” (DN 80) - 600#
Flange Size - 3/4” (DN 20)
- 3/4” (DN 20) - 150#
- 3/4” (DN 20) - 300#
- 3/4” (DN 20) - 600#
Flange Size - 4” (DN 100)
- 4” (DN 100) - 150#
- 4” (DN 100) - 300#
- 4” (DN 100) - 600#
NPT Connection
- 1” NPT
- 1-1/2” NPT
- 2” NPT
- 3” NPT
- 3/4” NPT
- 4” NPT
Pipe Connection
- 1” Pipe
- 1-1/2” Pipe
- 2” Pipe
- 3/4” Pipe
Welded Connection
- 1” Socket Weld End
- 1-1/2” Socket Weld End
- 3” Socket Weld End
- 3/4” Socket Weld End
- 4” Socket Weld End
