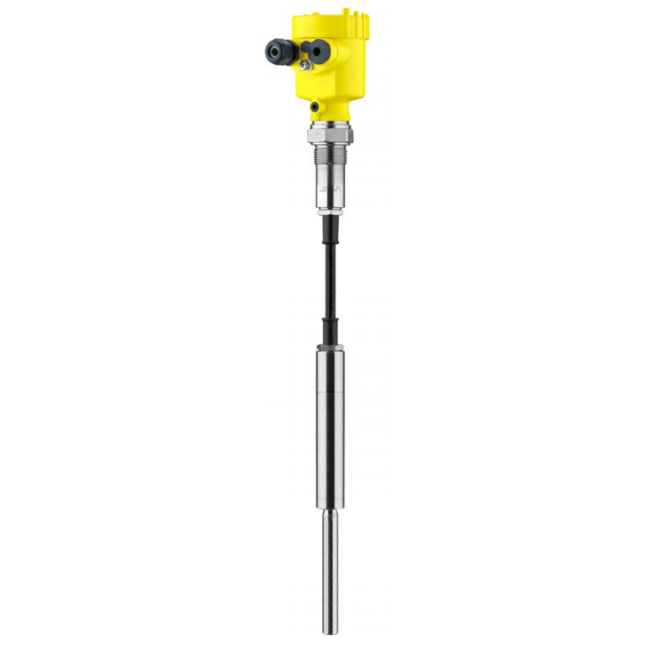

Vegavib 62 Vibrating Level Switch
Brand: VEGAThe Vegavib 62 is a level switch for granular and coarse-grained bulk solids.
The optimized rod design without corners and edges avoids jamming of the bulk solids and is easy to clean.
The Vegavib 62 detects reliably and accurately the min. or max. level in bulk solids.
The position of the switching point is specified flexibly through the length of the suspension cable.
Features- Minimum Time and Cost Expenditure Due to Simple Setup without Medium
- Reliable Function Due to Product-Independent Switching Point
- Low Maintenance Costs
Specifications
Brand
Ambient Temperature Range
- -40° to 80° C (-40° to 176° F)
Applications
- Used as a Level Switch in Coarse-Grained Bulk Solids
- Used as a Level Switch in Granuled Solids
Approvals & Certifications
- ATEX
- CSA
- FM
- GOST
- IEC
- SIL 2
BSP Connection
- G 1” - Threads
- G 1-1/2”
Cable Entry
- M20 x 1.5
Cable Length
- 1.58 to 262 feet (0.48 to 80 metres)
Cable Material
- FEP - Wetted Material
- Polyurethane
Connection Material
- 316L Stainless Steel
Enclosure, Body Material
- Aluminum
- Plastic
- Stainless Steel
Environmental Protection
- IP67
Flange Size - 2” (DN 50)
- 2” (DN 50) - Class 150 ASME
- 2” (DN 50) - PN 40
Flange Size - 3” (DN 80)
- 3” (DN 80) - Class 150 ASME
Flange Size - 4” (DN 100)
- 4” (DN 100) - PN 16
Flange Type
- Raised Face (RF)
Frequency
- 50/60 Hz
Hysteresis
- 0.08” (2 mm) Approximately with Vertical Installation
Mounting Position
- Vertical
NPT Connection
- 1” NPT
- 1/2” NPT
- 1-1/2” NPT
Operating Voltages
- 20-253 Vac
- 20-253 Vdc
Output Format
- Relay Output - Electronics Versions
- Transistor Output - Electronics Versions
Output Function
- NAMUR Output
Power Requirement
- 10-400 mA - Load Current
Pressure Range
- psig: -14.5 to 87 (kPa: -100 to 600, bar: -1 to 6)
Process Fitting Details
- Hygienic Fittings
Process Temperature
- -40° to 150° C (-40° to 302° F)
Response Time
- 0.5 seconds when being Covered - Switching Delay
- 1 second when being Uncovered - Switching Delay
Seat / Seal Material
- Klingersil C-4400 - Wetted Material
- NBR - Seal between Housing & Housing Cover
- Silicone - Seal between Housing & Housing Cover
Sensor, Probe Connection
- 2-Wire Versions - Electronics Versions
Storage Temperature
- -40° to 80° C (-40° to 176° F)
Wetted Materials
- 316L Stainless Steel
- Carbocer Coating
