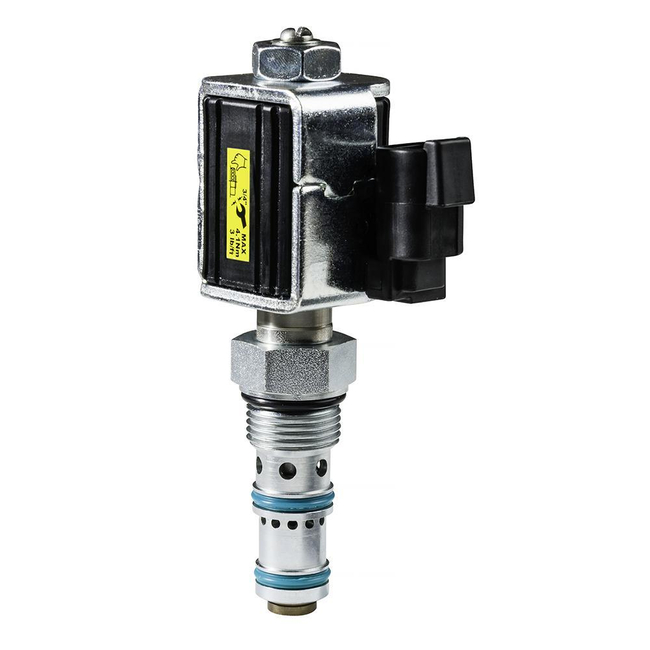

Pressure Compensated Proportional Poppet Valves

Brand: Parker Hannifin

Parker’s selection of 2-way proportional poppet valves provide exact and reliable controls for applications that require a proportional flow control with a very low leakage rate.

These valves are capable of handling flows up to 83 lpm (22 gpm) and pressures as high as 210 bar (3000 psi).

The added feature of an integrated pressure compensator make these valves ideal for applications that need controllability at a very high degree of confidence.

Parker’s 2-way proportional poppet valves are available in normally-open or normally-closed configurations and can pair with any Current Controlled Pulse Width Modulation (PWM) valve driver.

These valves have uses on a variety of machinery within the agriculture, aerial, material handling, or construction markets.
Features
  • Excellent metering capability and control throughout the full flow range
  • Reduced drift
  • Low leak control (less than 5 dpm)
  • Modular solution to applied problem
  • Low leak compensator, requiring no additional seals, results in very low hysteresis (< 10%)
  • Maintains constant flow regardless of load condition
  • Patented integrated low leak compensator

Specifications

Cavity Size

  • 3X, C12-3L, C16-3

Coil Nut Torque (Lbs/ft)

  • 3, Finger Tight

Coil Nut Torque (Nm)

  • 4.1, Finger Tight

Coil Type

  • 5/8” Super Coil Low Watt (CAS)

Electrical Signal Closing Point

  • N/A, 60 %-70 % of Input Signal

Electrical Signal Opening Point

  • 20 %-25 % of Input Signal, N/A

Filtration Ratings

  • ISO 4406: 1999 Code 18/16/13

Flow Direction

  • Top to Side (3 - 2)

Frequency (Hz)

  • 100-400

Hysteresis

  • < 10 %

Installation Torque (Lbs/Ft)

  • 25, 35, 80-85

Installation Torque (Nm)

  • 34, 48, 108-115

Leak Rate (drops/min)

  • 5 @ 3000 psi (210 bar)

Maximum Inlet Pressure (bar)

  • 210

Maximum Inlet Pressure (psi)

  • 3000

Minimum Pressure Differential (bar)

  • 34

Minimum Pressure Differential (psi)

  • 500

Operating Temperature (°C)

  • -45° to +132° C, -34° to +121° C, -26° to +204° C

Operating Temperature (°F)

  • -50° to +270°, -30° to +250°, -15° to +400° F

Rated Flow (gpm)

  • 10, 15, 22

Rated Flow (Lpm)

  • 38, 57, 83

Rated Fluid Viscosity (CSt)

  • Mineral-based or Synthetic with Lubricating Properties at Viscosities of 45-2000 SSU (6 to 420 cSt)

Seal Material

  • D-Ring, Nitrile, Fluorocarbon

Type / Configuration

  • Normally Closed, Pressure Compensated, Normally Open, Pressure Compensated

Valve Material

  • All Parts Steel. All Operating Parts Hardened Steel

Wattage (W)

  • 18

Weight (kg)

  • 0.24, 0.36, 0.48, 0.49

Weight (Lbs)

  • 0.52, 0.79, 1.08, 0.53, 1.09

  • Applications Requiring Precise Controls
  • Variable Flow Applications
  • Actuator Control
  • Motor Speed Control
  • Applications Requiring Pressure Compensation
