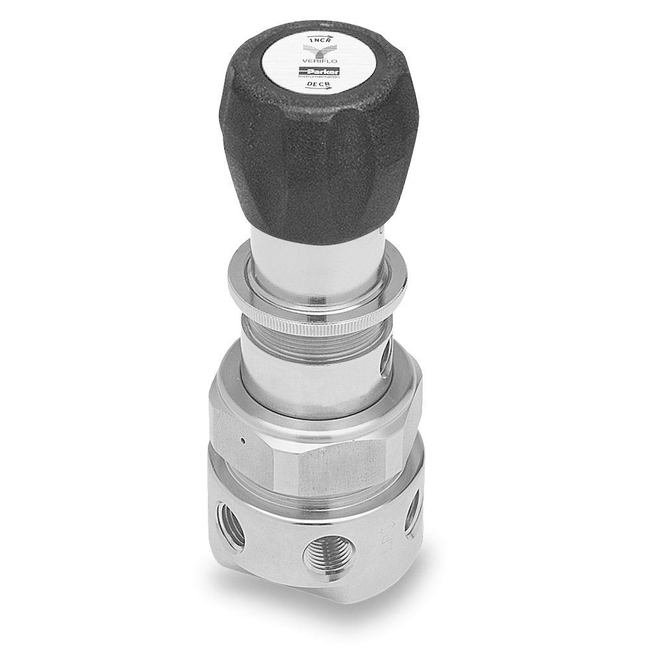

Single Stage, High Pressure Regulator - APR66 Series

Brand: Parker Hannifin

The APR66 Series is a high pressure reducing, single-stage regulator designed to operate at inlet pressures up to 6000 psig as well as very high outlet pressures up to  6,000 psig.

The APR66 offers a full range of pressure sensing without time consuming spring and piston change outs.  It utilizes a low friction adjusting screw, which provides a smooth operation of the regulator.

It is available with a self-relieving option. The unique thrust bearing allows the operator to easily turn the adjusting knob with full pressure applied.
Features
  • Piston sensing
  • Thrust bearing allows low actuating torque and precise setability
  • Cleaned for O2 service is standard
  • Low friction adjusting screw sleeve provides smooth operation
  • Optional self-relieving feature allows user to decrease outlet pressure in closed systems. Feature is actuated by turning the adjusting knob counterclockwise

Specifications

Body Material

  • 316L Stainless Steel Standard, Nickel-Plated Brass

Burst Pressure (bar)

  • 1241

Burst Pressure (psi)

  • 18000

Cap Material

  • Nickel-Plated Brass

External Leak Rate

  • Bubble Tight

Flow Capacity (Cv)

  • Cv 0.05

Internal Leak Rate

  • Bubble Tight

Knob Material

  • ABS (Standard), Aluminum

Maximum Inlet Pressure (psig)

  • 414 barg

Maximum Working Temperature (°C)

  • 74° C

Maximum Working Temperature (°F)

  • 165° F

Minimum Working Temperature (°C)

  • -40° C

Minimum Working Temperature (°F)

  • -40° F

Nut Material

  • 316L Stainless Steel

Outlet Pressure

  • 100-2,000 psig (138 barg)
  • 100-3,000 psig (207 barg)
  • 100-6,000 psig (414 barg)
  • 100-1,000 psig (69 barg)100-2,000 psig (138 barg)100-3,000 psig (207 barg)100-6,000 psig (414 barg)

Piston Housing Material

  • 316L Stainless Steel

Piston Material

  • Torlon

Plug & Screw Material

  • 316L Stainless Steel

Poppet Material

  • 316L Stainless Steel

Proof Pressure

  • 9,000 psig (620 barg)

Screw Material

  • 316L Stainless Steel

Seal Material

  • AFLAS, PTFE, PCTFE

Seat Material

  • PEEK

Spring Material

  • Hastelloy C-22

Stem Material

  • 316L Stainless Steel

Supply Pressure Effect

  • 100-2,000 psig 4 psig / 100 psig (0.28 barg / 7 barg)
  • 100-3,000 psig 4 psig / 100 psig (0.28 barg / 7 barg)
  • 100-6,000 psig 6 psig / 100 psig (0.4 barg / 7 barg)
  • 100-1,000 psig 4 psig / 100 psig (0.28 barg / 7 barg)100-2,000 psig 4 psig / 100 psig (0.28 barg / 7 barg)100-3,000 psig 4 psig / 100 psig (0.28 barg / 7 barg)100-6,000 psig 6 psig / 100 psig (0.4 barg / 7 barg)

Weight (kg)

  • 1.4

Weight (Lbs)

  • 3

  • Analyzer Sample Systems
  • Flare/Incinerator
  • Distillation
  • Markets:
    • Fluid & Gas Handling
    • Process Control
