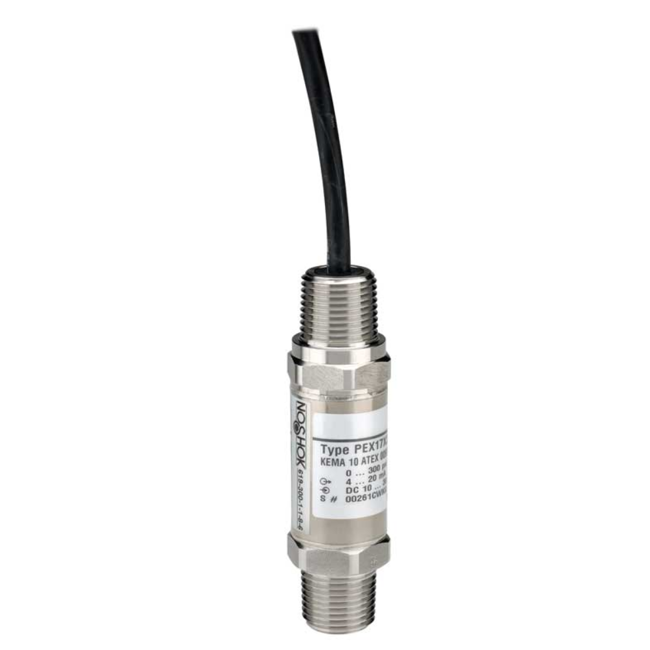

619/620 Series Pressure Transmitter
Brand: Noshok, Inc
Features
- Vacuum and Compound Ranges through 0 to 15,000 psig; Absolute Ranges from 0 to 15 psia through 0 to 100 psia
- Current and Voltage Outputs Available
- 316 Stainless Steel and Elgiloy Wetted Parts
- ATEX-Approved II 2G Ex d II C
- CE Compliant to Suppress RFI, EMI and ESD
Specifications
Brand
Accuracy
- ± 0.25 % of Full Scale BFSL
Ambient Temperature Range
- -40° to 105° C (-40° to 221° F)
Approvals & Certifications
- ATEX
- CE Compliant to Suppress RFI, EMI & ESD
BSP Connection
- G 1” Male B Flush
- G 1/2” Male B Flush
Burst Pressure
- 3 times Full Scale for psi: 0 to 15,000
- 3.5 times Full Scale for Ranges psi: 0 to 300 through 0 to 10,000
- 5 times Full Scale for Ranges psi: 0 to 15 through 0 to 200
Compensated Temperature
- 0° to 80° C (32° to 176° F)
Electrical Connectors
- 1/2” NPT Male Conduit with 6” Integral Cable
Electrical Protection
- Overvoltage
- Reverse Polarity
- Short Circuit
Electromagnetic Rating
- ESD Protection
- RFI/EMI
Enclosure, Body Material
- 316 Stainless Steel
Environmental Protection
- IP67
NPT Connection
- 1/2” NPT Male
- 1/4” NPT Male
O-Ring Material
- Ethylene Propylene (EPR)
- FPM
- NBR
Options
- 15” Cable (Lead)
- Threaded Orifice
Output
- 0.5 - 4.5 Vdc Low Power, 3-Wire
- 0-10 Vdc, 3-Wire
- 1-5 Vdc, 3-Wire
- 4-20 mA, 2-Wire
Power Requirement
- 10 to 30 Vdc (4-20 mA, 2-Wire)
- 14 to 30 Vdc (0-10 Vdc, 3-Wire)
- 6 to 30 Vdc (1-5 Vdc, 3-Wire, 0.5-4.5 Vdc, 3-Wire)
Pressure Cycle Limit
- 150 Hz
Pressure Range
- bar: 0 to 1,034
- Inches Hg: -30 to 0
- kPa: 0 to 103,400
- psig: 0 to 15,000
Pressure Type
- Absolute
- Gauge
- Vacuum
Process Temperature
- -40° to 105° C (-40° to 221° F)
Proof Pressure
- 1.5 times Full Scale for 0 psi to 15,000 psi
- 2 times Full Scale for Ranges 0 psi to 300 psi through 0 psi to 10,000 psi
- 3.5 times Full Scale for Ranges 0 psi to 15 psi through 0 psi to 200
Response Time
- 1 millisecond (Between 10 & 90 % of Full Scale)
Shock
- 1000 G as Per IEC 60068-2-27
Stability
- ≤ ± 0.2 % of Full Scale for 1-Year, Non-Accumulating
Storage Temperature
- -40° to 105° C (-40° to 221° F)
Wetted Materials
- 316 Stainless Steel
- Chemical Processing
- Gas Pressure Measurement
- Oil Field & Offshore
- Mining
- Well Head Measurement
