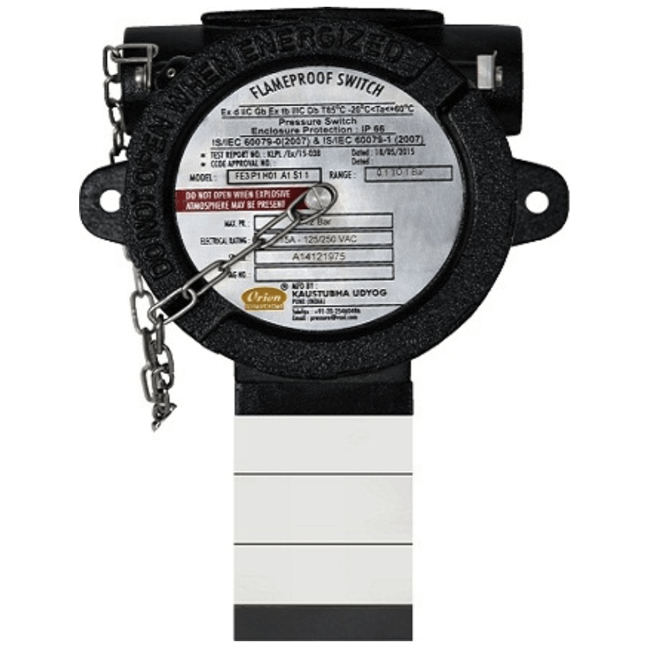

FE Series High Range DP Pressure Difference Switch

Brand: Orion Instruments

These switches have been designed for use in hazardous area and for severe applications in the oil and gas sectors like oil and gas pipelines, petrochemical plants, refineries and generally in atmospheres which are potentially explosive.

All switches are designed for gas group IIC, the most severe of the explosive gases, and hence can be used in lower severity atmospheres, typically in IIA and IIB.

With grey cat iron enclosures, these can also be used in mines.

SS Enclosures can also be offered for highly corrosive atmospheres.

Switches can be configured with a lot of options like electrical elements and sensing element configurations to suit the intended working media.
Features
  • Compact, rugged design
  • Enclosure protection: IP66 standard
  • Reliable, accurate micro switch arrangement can be provided
  • Easy, safe wiring connections
  • High/low pressure options available
  • Accuracy: ±1% Full Scale, ±2% Full Scale

Specifications

Accuracy

  • ± 1 % of Full Scale Range
  • ± 2 % of Full Scale Range

Applications

  • Bulk Drug & Pharma
  • Chemical Industry
  • Oil & Gas
  • Petrochemical Plants
  • Refineries

Approvals & Certifications

  • IS/IEC 60079-1: 2007, IS/IC 60079-0: 2011, 60079-1: 2007 & 60079-31: 2008
  • KLPL
  • PESO

BSP Connection

  • 1/4” BSP Female

Cable Entry

  • 1/2” NPT Female
  • 3/4” NPT Female
  • M20 x 1.5 Female

Diaphragm Material

  • 316L Stainless Steel
  • Inconel
  • Monel
  • Neoprene
  • Teflon

Differential Pressure

  • psi: 1.45 to 7.25 (kPa: 10 to 50, bar: 0.10 to 0.50) - Max.

Electrical Rating

  • Microswitch: 15 A at 250 Vac
  • Microswitch: 5 A at 250 Vac

Enclosure, Body Material

  • Aluminum
  • Cast Iron
  • Stainless Steel

Environmental Protection

  • Flameproof
  • IP66 According to II 2 GD Ex d IIC Gb Ex Tb IIIC Db T85° C (-20°< Ta< 60° C), IS/IEC 60079-1: 2007, EN 60079-0: 2009, EN 60079-31: 2009)

Head Material

  • Aluminum
  • Grey Cast Iron
  • Stainless Steel

Mounting

  • 2 Mounting Holes

NPT Connection

  • 1/4” NPT Female

Operating Pressure

  • Maximum

Operating Temperature

  • Operating Ambient Temperature: 0° to 60° C (32° to 140° F)

Pressure Type

  • Differential

Process Connection Material

  • 316 Stainless Steel
  • Inconel
  • Monel

Process Temperature

  • Media Temperature: for Non-Metallic Diaphragm, Max.

Repeatability

  • ± 1 % of Full Scale

Set Point - Decreasing

  • bar: 0.1 to 25
  • kPa: 10 to 2,500
  • psi: 1.45 to 362.6

Set Point - Increasing

  • bar: 0.1 to 25
  • kPa: 10 to 2,500
  • psi: 1.45 to 362.6

Switch Quantity

  • SPDT: 2 Switches

Switch Type

  • DPDT
  • Micro Switch
  • SPDT

System Pressure

  • bar: 0 to 70
  • kPa: 0 to 7,000
  • psi: 0 to 1,015.26
