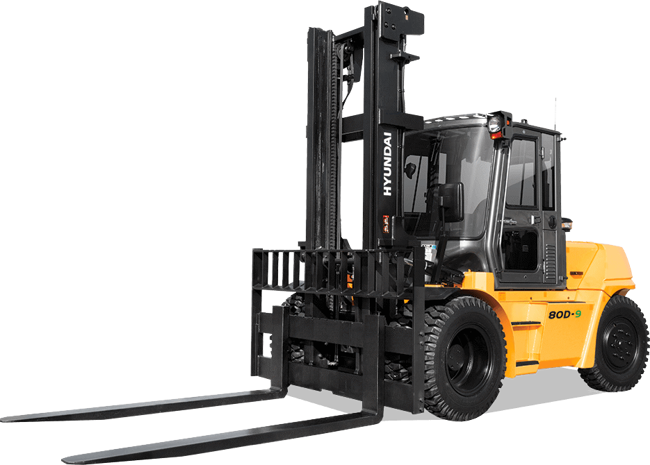

Hyundai Diesel 80D-9
Brand: Hyundai Construction Equipment Americas, IncHyundai introduces a new line of 9-series diesel forklift trucks. The newly designed four-wheel counterbalance trucks provide operator comfort, increased productivity and easy maintenance.
Features- Maximum performance
- Spacious operator's cab
- Load indicator
- OPSS(Operator Presence Sensing System) for safe operation
- Easy serviceability
- Hi-mate (Remote Managegement System)
Specifications
Manufacturer
- Hyundai
Manufacturer's Model Designation
- 80D-9
Drive
- DIESEL
Type of Operation
- seated
Load Capacity / Rated Load
- 17,400 lb
Load Center Distance
- 24
Load Distance, Center of Drive axle to Fork
- 27
Wheelbase
- 98
Service Weight
- 25,591 lb
Axle Loading, Loaded Front/Rear
- 38,034 / 5,384 lb
Axle Loading, Unloaded Front/Rear
- 11,310 / 14,484 lb
Tires
- pneumatic
Tires Size, Front
- 9.00-20-14PR
Tires Size, Rear
- 9.00-20-14PR
Number of Wheels Front / Rear (x=driven)
- 4 x / 2
Track Width, Front
- 64
Track Width, Rear
- 67
Mast / Fork Carriage Tilt Forward / Backward
- 15° / 10°
Lowered Mast Height
- 105
Free Lift
- 6
Lift Height
- 120
Extended Mast Height
- 172
Overhead Guard Height
- 104
Seat Height / Standing Height Rel. to SIP
- 65
Coupling Height
- 20
Overall Length
- 209
Length to Face of Forks
- 156
Overall Width
- 86
Fork Dimensions
- 3 x 7 x 47
Fork Carriage ISO 2328, Class / Type A, B
- Class IV
Fork-Carriage Width
- 89
Ground Clearance Under Mast, Loaded
- 10
Ground Clearance Center of Wheelbase
- 12
Aisle Width for Pallets 1,000 x 1,200 Crossways (L x W)
- 220
Aisle Width for Pallets 800 x 1,200 Lengthways (W x L)
- 228
Turning Radius
- 146
Smallest Pivot Point Distance
- 1,354
