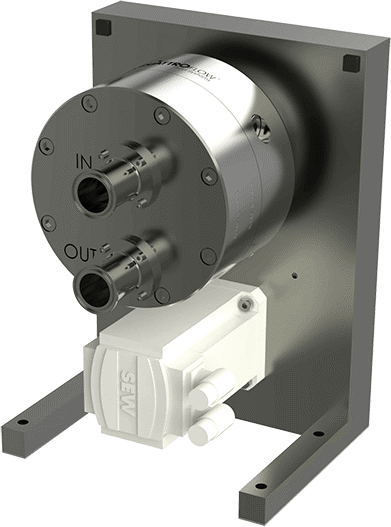

Quattroflow QF5k Quaternary Diaphragm Pump
Brand: Quattroflow™ Fluid Systems
Features
QF5k
- Increased max. flow rate of 6,000 lph with most drives
- Clean-In-Place/Steaming-In-Place (CIP/SIP) and autoclavability
- Self-draining design to minimize non-recoverable product
- Enhanced venting to reduce the minimum flow rate required to remove entrapped air during priming
- Patented valve plate design to achieve self-draining and venting
- Up to 120:1 turndown ratio
- Improved linear flow performance
- High flow stability across entire flow range
QF5K-MU OEM
- OEM design for easy skid integration
- Extended turndown ratio
- Global power supply and motor certification
- Multiple accessories (VFD, Cable, Gasket) available
- Flange adapters for additional motor types available
Specifications
Flow Rate
- 50 to 6,000 lph
Pumping Pressure
- Maximum 4 bar, 6 bar
Temperature Range
- 4° to 60° C (39° to 140° F)
Pump Speed
- 13 to 1,200 rpm
Connection
- 1.5” Tri-clamp
Medium Temperature
- Maximum 60° C (140° F)
Material of Construction
- Pump Housing: PP, 316L Stainless Steel (1.4435)
- Diaphragm: TPE
- Valve & O-Ring: EPDM
